Product Description

This link price is only for ATS700I without RS485. If you need other specifications, please feel free to contact us!
GEYA 12V or 24V Smartgen ATS Generator Controller ATS700I Without RS485 PC Dual Power Automatic Transfer Switch ATS 100A AC
GEYA 12V or 24V Smartgen ATS Generator Controller ATS700I Without RS485 PC Dual Power Automatic Transfer Switch ATS 100A AC
GEYA 12V or 24V Smartgen ATS Generator Controller ATS700I Without RS485 PC Dual Power Automatic Transfer Switch ATS 100A AC
GEYA 12V or 24V Smartgen ATS Generator Controller ATS700I Without RS485 PC Dual Power Automatic Transfer Switch ATS 100A AC
GEYA 12V or 24V Smartgen ATS Generator Controller ATS700I Without RS485 PC Dual Power Automatic Transfer Switch ATS 100A AC
GEYA 12V or 24V Smartgen ATS Generator Controller ATS700I Without RS485 PC Dual Power Automatic Transfer Switch ATS 100A AC

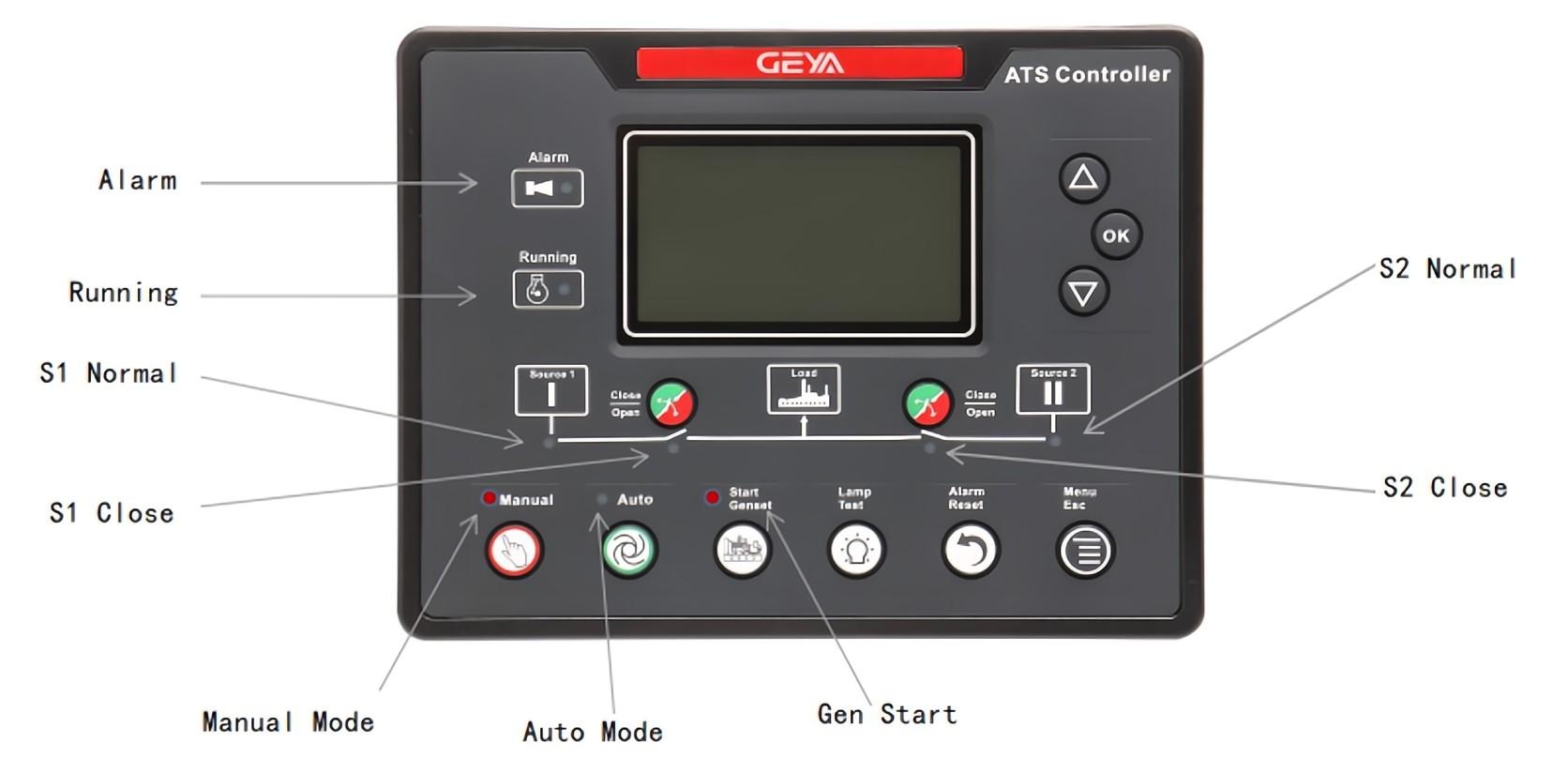

Indicator Type
Description
Alarm
Slow flashing(1time per sec)when warn alarm occurs.

Fast flashing(5 times per sec) when fault alarm occurs.
Running
Flash when module countdown running(1time per sec)
S1 Power Normal
It is light on when S1 is normal; flashing when S1 is abnormal (1time per

sec); off when there is no S1 power.
S1 Close Status
It is light on when S1 close input is activated.
S2 Power Normal
It is light on when S2 is normal; flashing when S2 is abnormal(1time per

sec); off when there is no S2 power.
S2 Close Status
It is light on when S2 close input is activated.
Manual Mode
It is light on when the module is in Manual mode.
Auto Mode
It is light on when the module is in Auto mode.
Generator Start
It is light on when the Start signal is be initiated.
Function
Type
DC Power
AC Power Supply
AC Current & Power
Sync Close
Input Ports (Fixed+Config.)
Output Ports (Fixed+Config.)
RS485
ATS700
2+4
2+6
According
to customer
demand
ATS700B
(LN90V~280V)
2+4
2+6
ATS700I
2+4
2+6
ATS700BI
(LN90V~280V)
2+4
2+6
ltems
Contents
Operating Voltage
1.DC 8.0V~35.0V,continuous power supply.

2.AC90V~280V during AC power supply L1N1/L2N2(ATS700B/ATS700BI)
Power Consumption
<5W(Standby mode:≤2W)
AC Voltage Input
AC system
ATS700/ATS700I
ATS700B/ATS700BI
3P4W(L-L)
(80~625)V
(80~480)V
3P3W(L-L)
(80~625)V
(80~625)V
1P2W(L-N)
(50~360)V
(50~280)V
2P3W(A-B)
(80~625)V
(80~480)V
Rated Frequency
50/60Hz
Close Relay Output
16A AC250V Volts free output
Auxiliary Relay Output
16A/7A AC250V Volts free output
Digital lnput
GND (B-) connect is active.
Communication
RS485 isolated interface, MODBUS Protocol

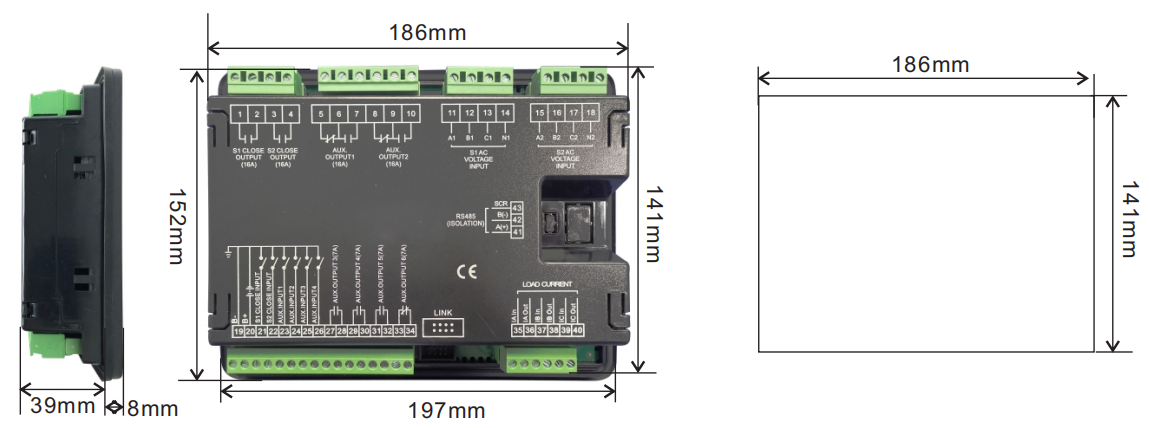

Case Dimensions
197mm*152mm*47mm
Panel Cutout
186mm*141mm
Working Conditions
Temperature:(-25~+70)℃;

Relative Humidity:(20~93)%RH
Storage Condition
Temperature:(-25~+70)℃
Protection Level
IP55:when water proof gasket ring inserted between panel and housing.
Insulation Strength
Apply AC2.2kV voltage between high voltage terminal and low voltage

terminal;

The leakage current is not more than 3.5mA within 1min.
Weight
ATS700/ATS700I:0.7kg
ATS700B/ATS700BI:0.8kg
