Product Description

············This link price is only for GYPV-1085 30A············

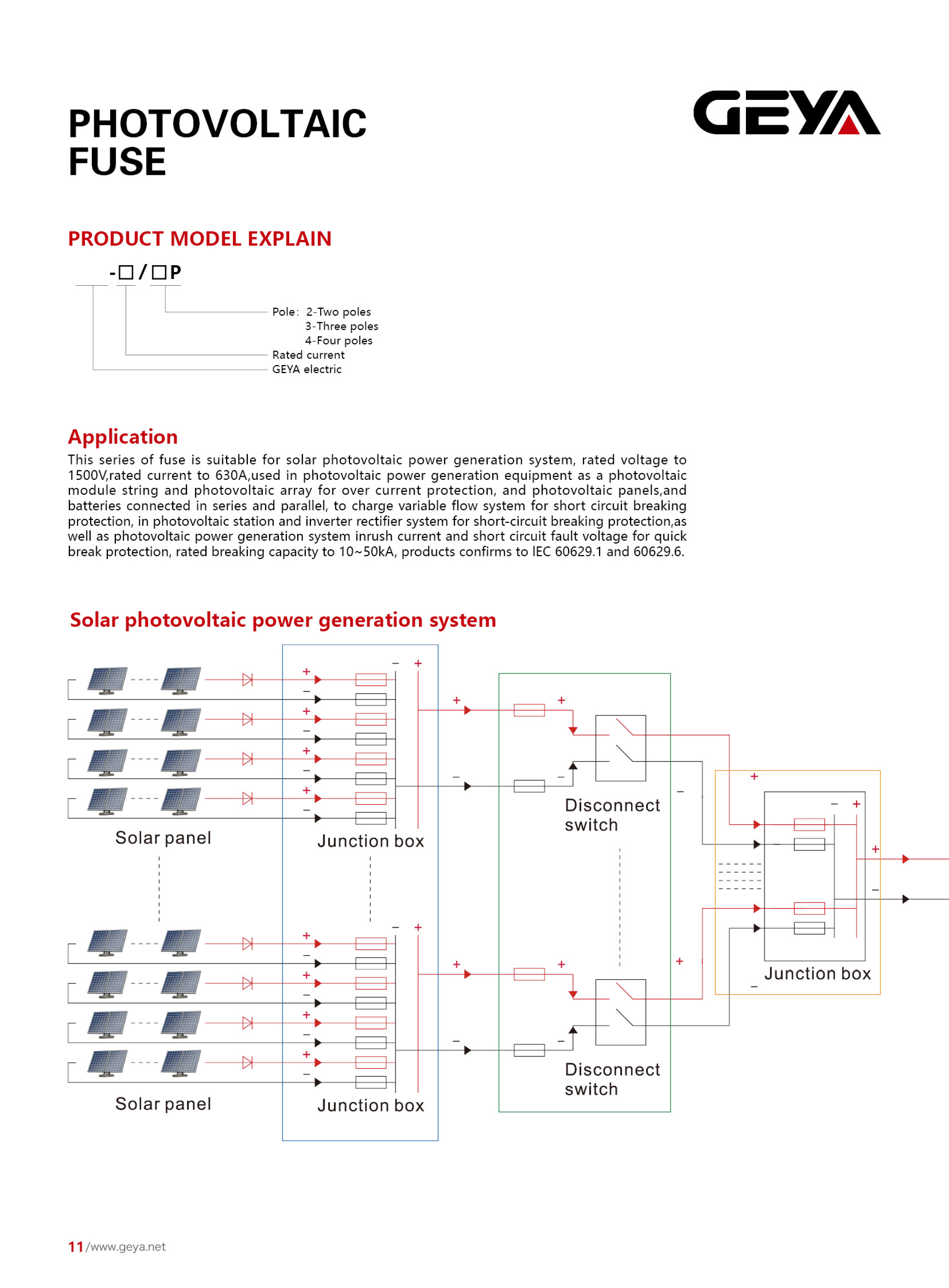

This series of the fuse is suitable for solar photovoltaic power generation system, rated voltage to1500V, rated current to 630A,
used in photovoltaic power generation equipment as a photovoltaic module string and photovoltaic array for overcurrent protection,
and photovoltaic panels, and batteries connected in series and parallel, to charge variable flow system for short circuit breaking
protection, in the photovoltaic station and inverter rectifier system for short-circuit breaking protection, as well as
photovoltaic power generation system inrush current and short circuit fault voltage for quick break protection, rated breaking
capacity to 10~50kA, products confirms to IEC 60629.1 and 60629.6.

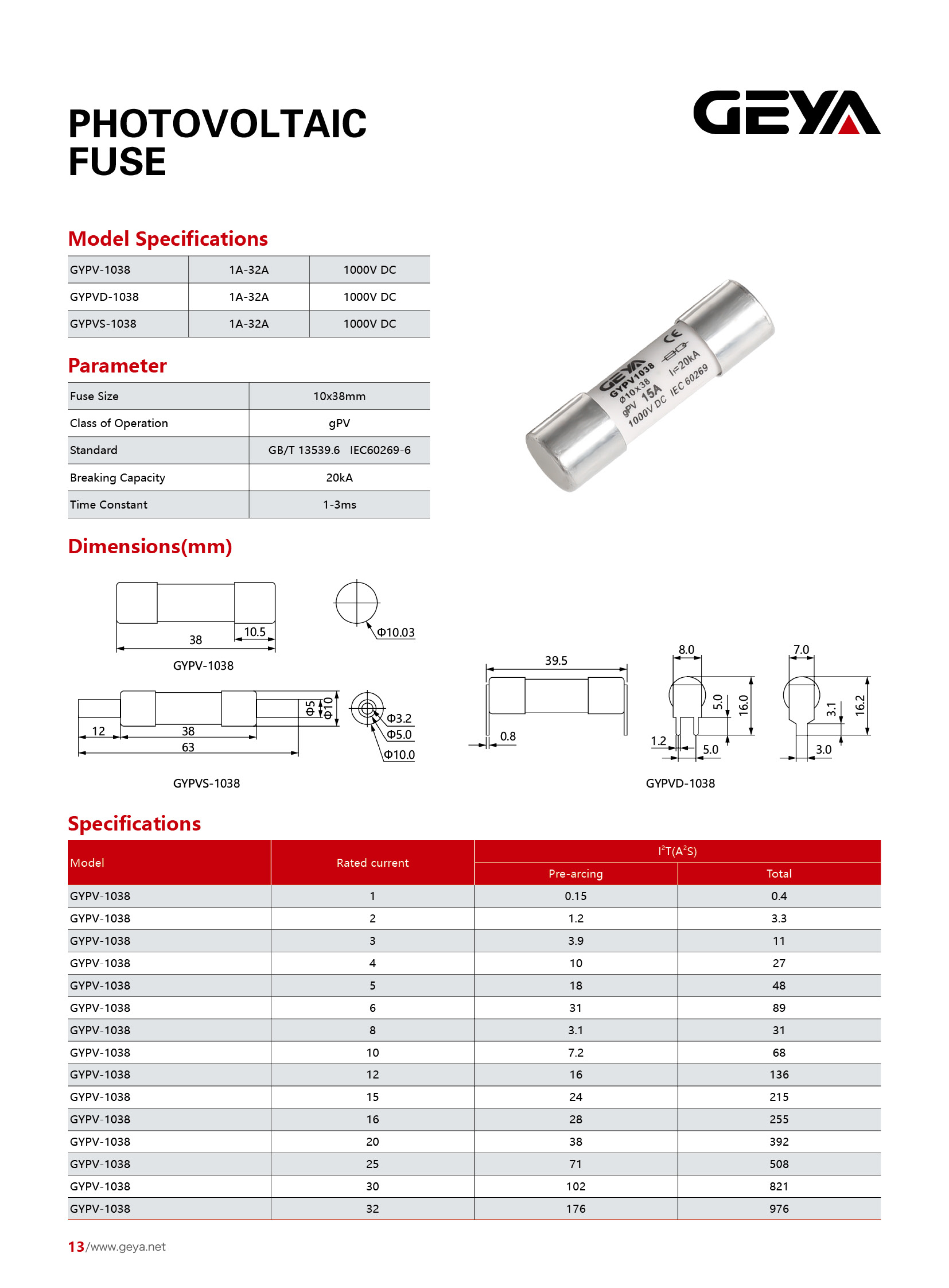

Technical Data

model	rated current	I²T(A²S)
model	rated current			pre-arcing	total
GYPV-1038	1	0.15	0.4
		2	1.2	3.3
		3	3.9	11
		4	10	27
		5	18	48
		6	31	89
		8	3.1	31
		10	7.2	68
		12	16	136
		15	24	215
		16	28	255
		20	38	392
		25	71	508
		30	102	821
		32	106	976
