Product Description

This link price is only for ATS L-801 without RS485. If you need other specifications, please feel free to contact us!

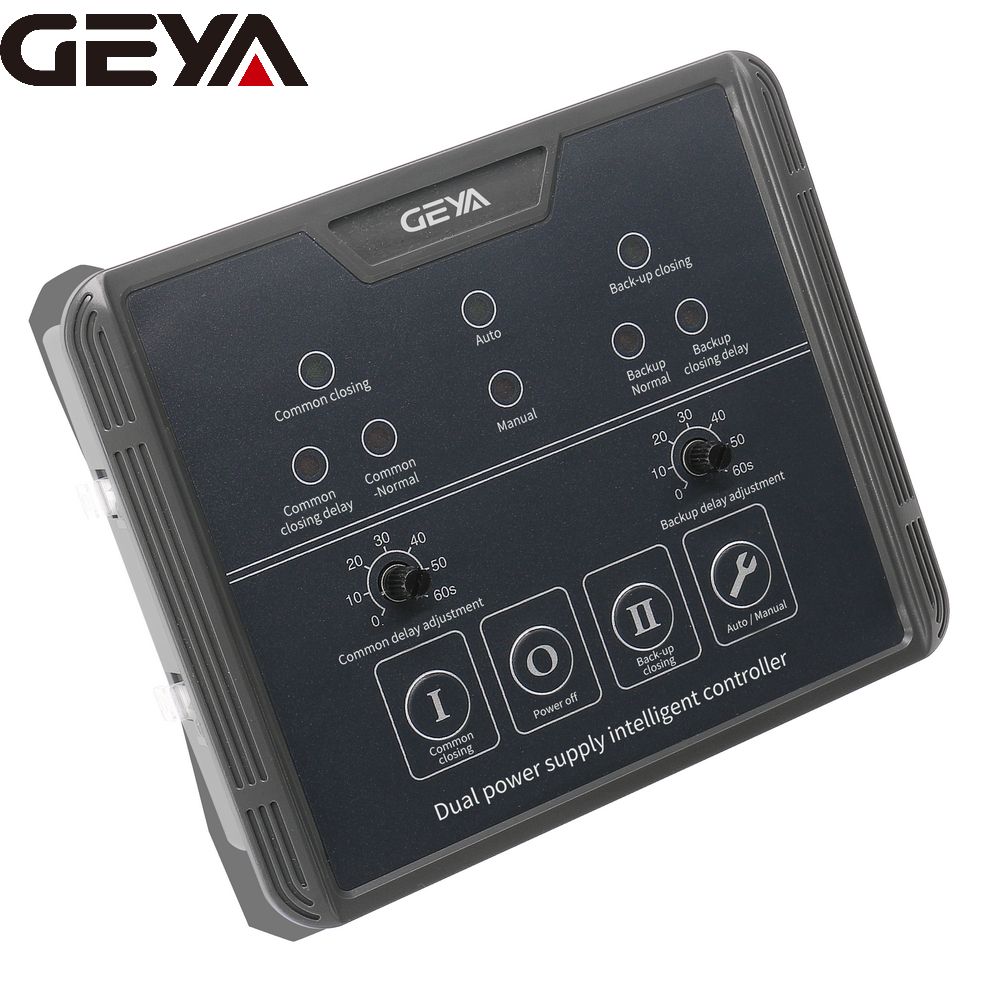

L-801 series dual power automatic switching controller is a microprocessor-based automatic conversion delay adjustable, the working mode can be set, intelligent all in one, the measurement and control process are automated, reducing human operation errors, and it is a dual power supply ideal product for switching. It is composed of a microprocessor as the core, which can accurately detect two-way three-phase voltage, make accurate judgments on voltage abnormalities (overvoltage, under voltage, phase loss) and output passive control switch signals.

Note:1. This cable is provided by the manufacturer. The user only needs to connect the number on the line with the number on the terminal on the ATS. In addition, the user of the A, B, C, and N power lines of the controller must connect himself To the controller. 2. FU1/FU2 commonly used and spare fuse, when the switch is different from the controller, its value is also different; with G type dual power supply FU1/FU2=2A with NT type dual power supply FU1/FU2=10A with MQ type dual power supply FU1/FU2=16A

Items	Specifical
ATS Controller	L-801 without RS485
		ATS700 DC without RS485
		ATS700I without RS485
		ATS700B AC without RS485
		ATS700B1 without RS485
		L-801 with RS485
		ATS700 DC with RS485
		ATS700I with RS485
		ATS700B AC with RS485
		ATS700B1 with RS485

Product number	L-801	L-700
Installation method	Split
Display method	Indicator light display	LCD
Rated duty system	Uninterrupted work system
Self-recovery	√	√
Surrender	√	√
Spare each other	√	√
Self-inspired motor function	√	√
Common power detection	Four-phase open-phase detection, three-phae voltage over- voltage detection
Backup power detection	Fou-phase open-phase detection,three-phase voltage over-voltage detection
Passive fire input	√	√
Active fire input (DC9-36V)	√	√
Adjustable switching delay		√
Real-time voltage display	√	√
Common and standby power indication	√	√
Common and standby overvoltage and undervoltage adjustable	√	√
Adjustable generator start and stop time	√	√(F/F 1)
Programmable output port		√
RS485 communication function		√
