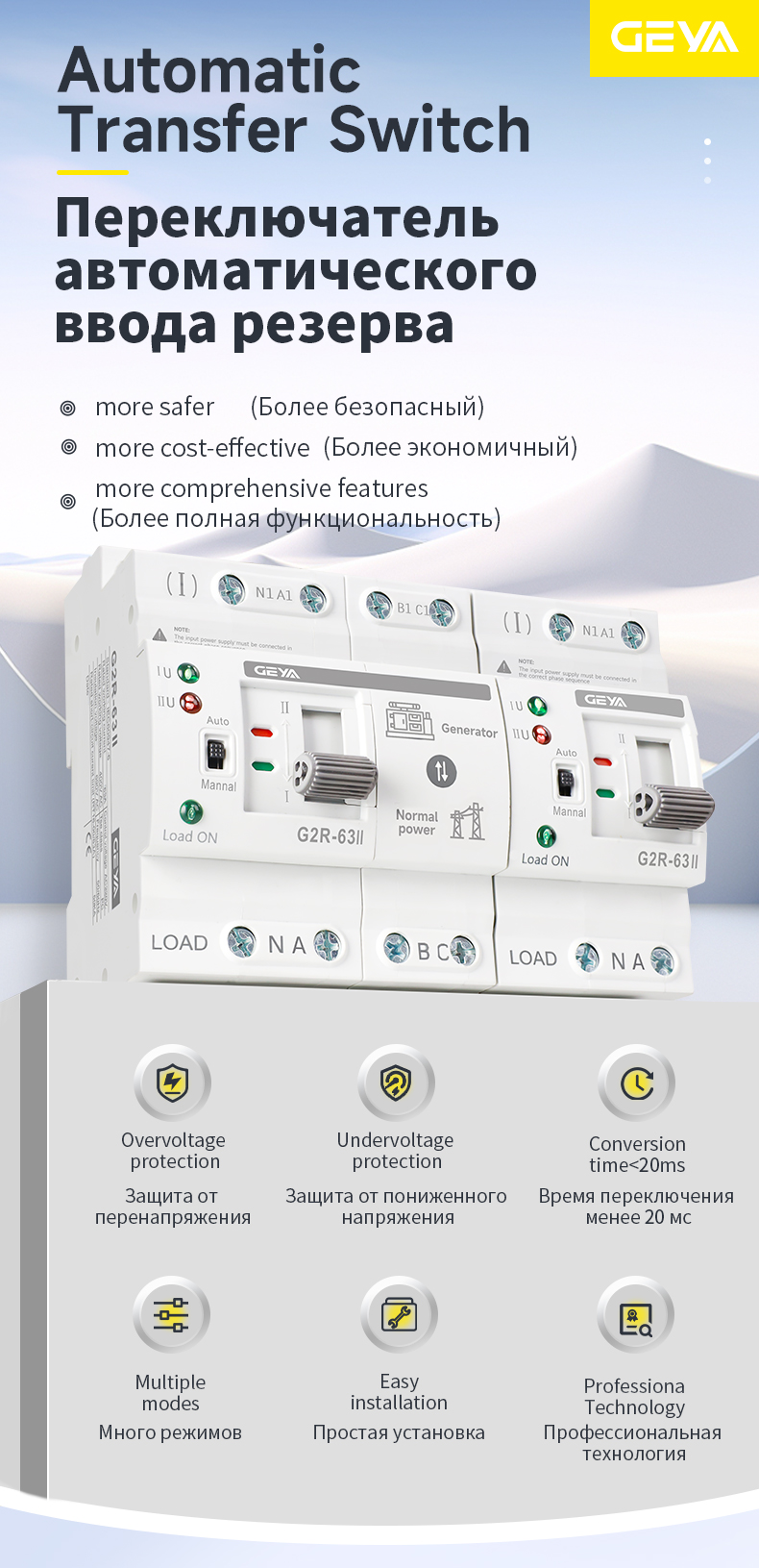

GEYA G2R 220V 16A 32A 40A 50A 63A Automatic Transfer Switching(ATS) Automatic Change Over Switch 2P 4P Generator ATS Controller

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya G2r 220v 16a 32a 40a 50a 63a Automatic Transfer Switching(ats) Automatic Change Over Switch 2p 4p Generator Ats Controller - Buy Intelligent Automatic Generator Transfer Switch Change Over Single Phase Power Changeover Switch Ats Controller 2p 4p Generator Ats Controller Daul Power Changeover generator Transfer Switch automatic Generator Transfer Switch 220v 3phase Dual Power Ats Automatic Generator Transfer Switch 63a 2p With Timer Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

This link price is only for G2R 2P 220V

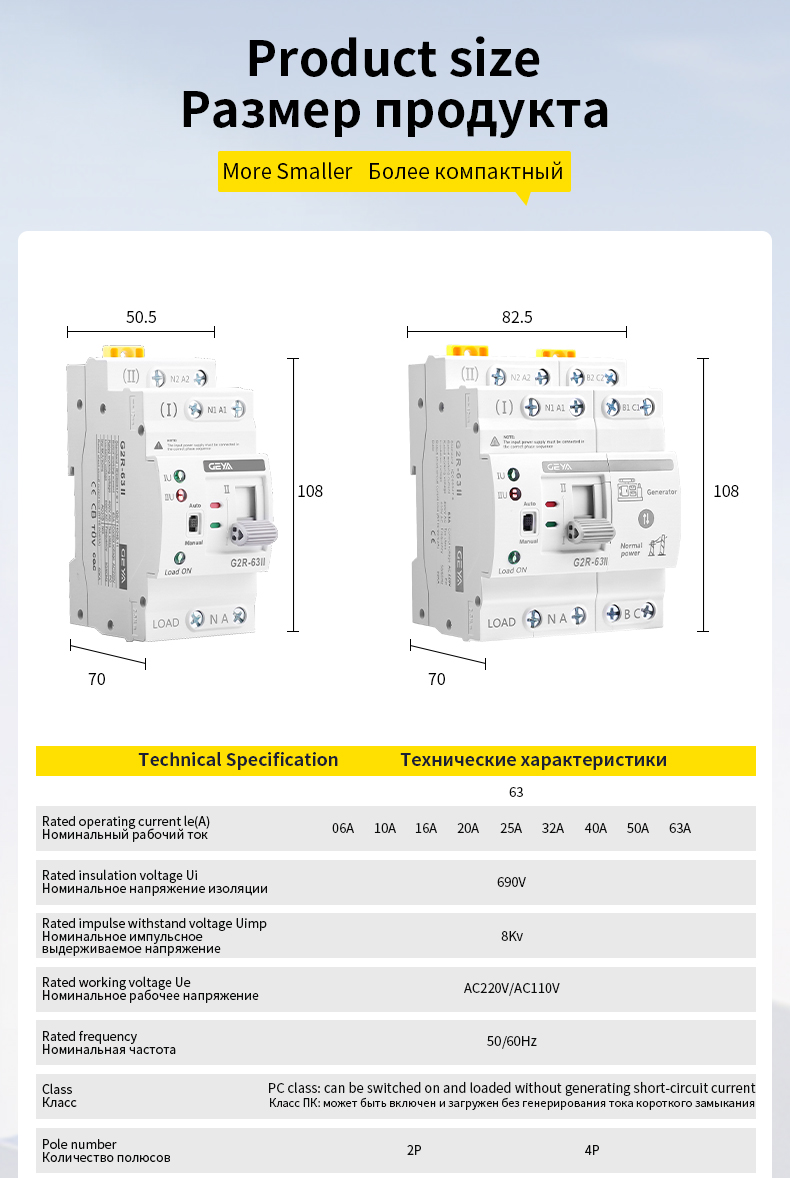

Rated operating current le(A)	06A	10A	16A	20A	25A
Rated insulation voltage UI	690V
Rated working voltage Ue	AC220V/AC110V
Rated frequency	50160Hz
Class	PC class:can be switched on and loaded without generating short-circuit current

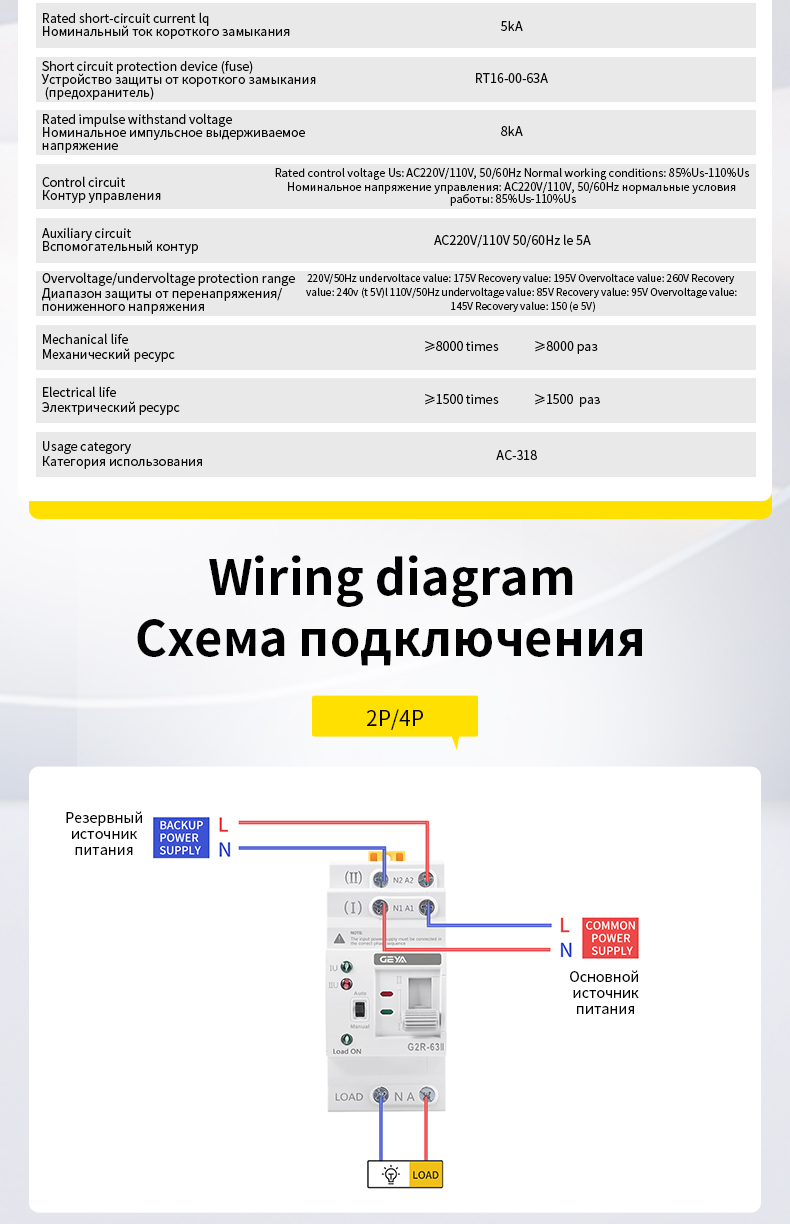

Rated short-circuit current lq	5kA
Short circuit protection device (fuse)	RT16-00-63A
Rated impulse withstand voltage	8kV
Control circuit	Rated control voltage Us:AC220V/110V,50/60Hz Normal working conditions:85%Us-110%Us
Auxiliary circuit	AC220V/110V 50/60Hz le=5A
Overvoltage/undervoltage protection range	220V/50Hz Undervoltage value:175V Recovery value:195V. Overvoltage value:260V Recovery value:240V (±5V) 110V/50Hz Undervoltage value:85V Recovery value:95V Overvoltage value:145V Recovery value:130(±5V)
Mechanical life	≥8000 times
Electrical life	≥1500 times
Usage category	AC-31B
Pole number	2P
Rated impulse withstand voltage Uimp	8kV

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
