Home > Products > Transfer Switch > GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats

GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya G2r 63a 110v 2p Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch Ats Din Rail 2p Mini Ats - Buy Pc Power Switch Din Rail 2p Mini Ats Smart Automatic Transfer Switch 10a Automatic Change Over Switch changeover Switch Automatic Din Rail Ats Integrated Miniature Circuit Breaker Remote System Control Automatic Transfer Switch 80a 4p Mcb 220v 100a 160a 250a 630a 1600a 3p 4p Copper Automatic Transfer Switch Ats Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

This link price is only for G2R 2P 110V 63A.
Product Overview:

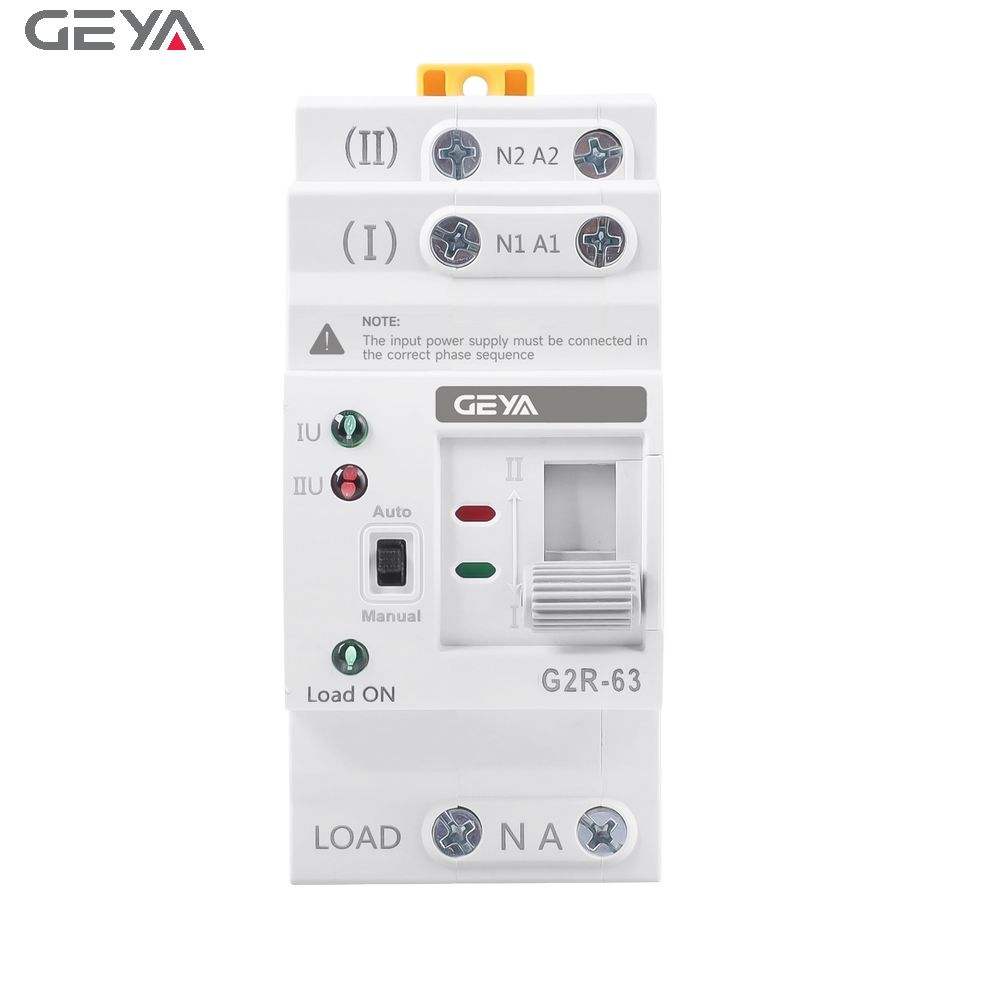

G2R-63 automatic transfer switch is a PC class infrequent change-over switch, with two-station design (commonly used for A and standby for B), suitable for AC systems with AC 50-60hz and rated current 6A-63A. The main function of the automatic transfer switch is when the main power (common power supply A) fails, the ATS will automatically switch to the backup power (Backup power supply B) to continue working (switching speed <50 milliseconds), which can effectively solve the troubles caused by power outages.
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
Application:
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
GEYA G2R 63A 110V 2P Factory Price Dual Power 3p 4p Copper Automatic Transfer Switch ATS Din Rail 2p Mini Ats
63
Rated operating current le(A)
06A
10A
16A
20A
25A
Rated insulation voltage UI
690V
Rated working voltage Ue
AC220V/AC110V
Rated frequency
50160Hz
Class
PC class:can be switched on and loaded without generating short-circuit current
Rated short-circuit current lq
5kA
Short circuit protection device (fuse)
RT16-00-63A
Rated impulse withstand voltage
8kV
Control circuit
Rated control voltage Us:AC220V/110V,50/60Hz
Normal working conditions:85%Us-110%Us
Auxiliary circuit
AC220V/110V 50/60Hz le=5A
Overvoltage/undervoltage protection range
220V/50Hz Undervoltage value:175V Recovery value:195V.
Overvoltage value:260V Recovery value:240V (±5V)
110V/50Hz Undervoltage value:85V Recovery value:95V
Overvoltage value:145V Recovery value:130(±5V)
Mechanical life
≥8000 times
Electrical life
≥1500 times
Usage category
AC-31B
Pole number
2P
Rated impulse withstand voltage Uimp
8kV
Items
Specifical
PCS/CTN
Inner box size
(CM)
Carton Size
(CM)
K.W.
(KG)
N.W.
(KG)
G2R-63Ⅱ 2P
63A
48
1.2*5.5*8.5
46*25.5*27
18.96
19.5
G2R-63Ⅱ 4P
63A
30
12*9*85
46*25.5*27
17.7
18.2
