Home > Products > Automation Relay > GEYA GRT8-LM DIN Rail Staircase Switch Time Timer Delay Relay AC 230V 50-60hz 0.5-20min Miniature Sealed 8 Fold Time Relay 24v
GEYA GRT8-LM DIN Rail Staircase Switch Time Timer Delay Relay AC 230V 50-60hz 0.5-20min Miniature Sealed 8 Fold Time Relay 24v

GEYA GRT8-LM DIN Rail Staircase Switch Time Timer Delay Relay AC 230V 50-60hz 0.5-20min Miniature Sealed 8 Fold Time Relay 24v

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt8-lm Din Rail Staircase Switch Time Timer Delay Relay Ac 230v 50-60hz 0.5-20min Miniature Sealed 8 Fold Time Relay 24v - Buy Time Relay timer Delay Relay multifunction Timer Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··········This link price is only for GRT8-LM AC230V··········

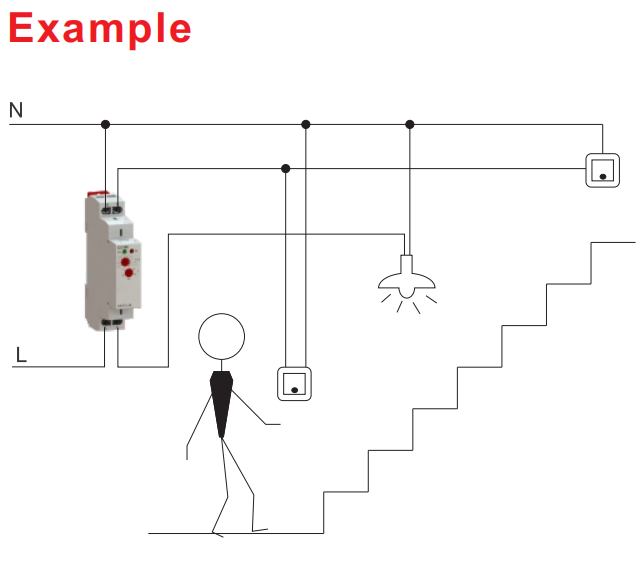

Applications： -It is used for delayed switching of lights in the corridors, entrances, stairways, and halls or for the delayed finish of fans (WC, bathroom, etc.). Feature： -10 functional modes -It has a zero-crossing switching ability. -Voltage range: AC 230 V, clamp terminals. -Relay status is indicated by LED. -1-MODULE, DIN rail mounting.
GEYA GRT8-LM DIN Rail Staircase Switch Time Timer Delay Relay AC 230V 50-60hz 0.5-20min Miniature Sealed 8 Fold Time Relay 24v
GEYA GRT8-LM DIN Rail Staircase Switch Time Timer Delay Relay AC 230V 50-60hz 0.5-20min Miniature Sealed 8 Fold Time Relay 24v
GEYA GRT8-LM DIN Rail Staircase Switch Time Timer Delay Relay AC 230V 50-60hz 0.5-20min Miniature Sealed 8 Fold Time Relay 24v
GEYA GRT8-LM DIN Rail Staircase Switch Time Timer Delay Relay AC 230V 50-60hz 0.5-20min Miniature Sealed 8 Fold Time Relay 24v
GRT8-LM

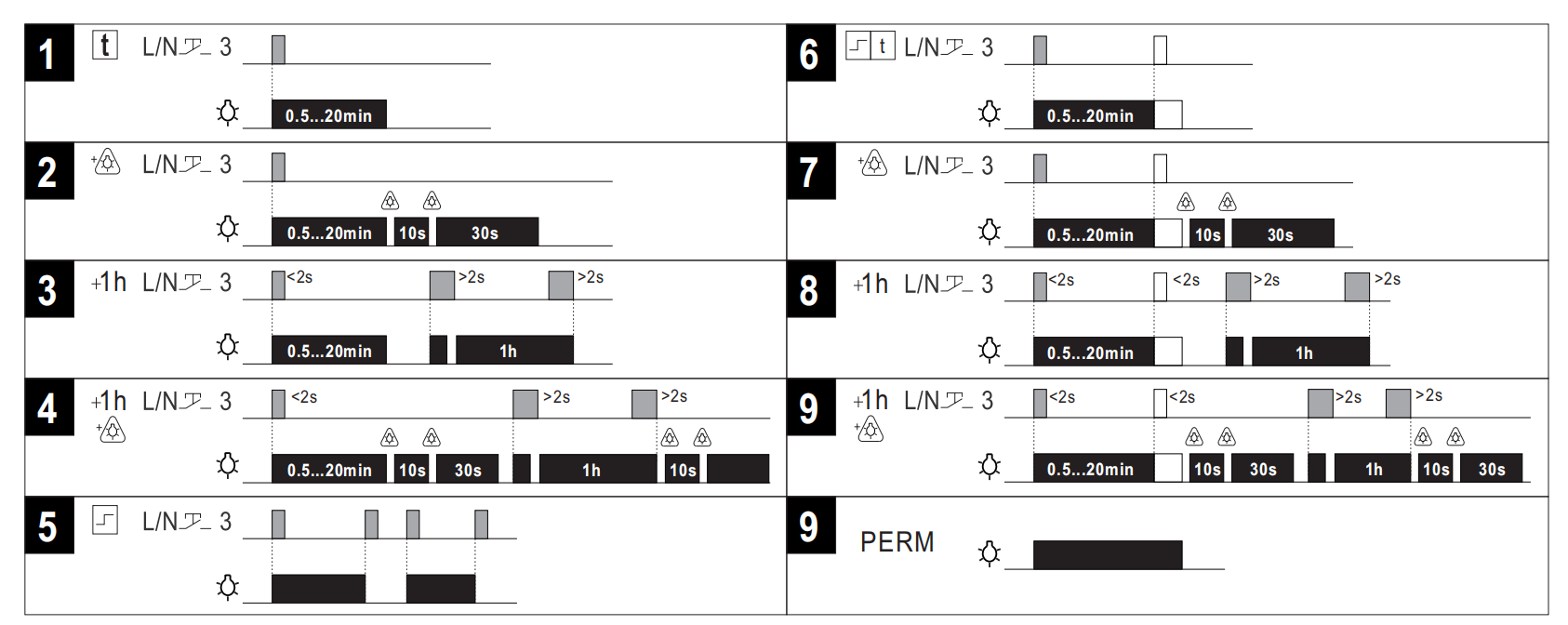

Function
delay off reacting to contact switching
Supply terminals
L-N
Voltage range
AC 230V(50-60Hz)
Power input
AC max.6VA/1.3W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
AUTO:0.5-20min ON OFF
Time setting
potentionmeter
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Mininum power time
200ms
Glow tubes connetions
Yes(N-3 or L-3)
Max.amount of glow lamps
230V,max.75pcs(Measured with glow lamp0.68mA/230VAC)
Temperature coefficient
0.05%/℃,at=20℃(0.05%°F,at=68°F)
Output
1×SPDT(zero crossing switching)
Current rating
16A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×10000000
Electrical life(AC1)
1×100000
Reset time
max.200ms
Operating temperature
-20℃to+55℃(-4°F to 131°F)
Storage temperature
-35℃to+75℃(-22F to 158°F)
Mounting/DIN rail
Din rail EN/IEC60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III.
Pollution degree
2
Max.cable size（mm²）
solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12)

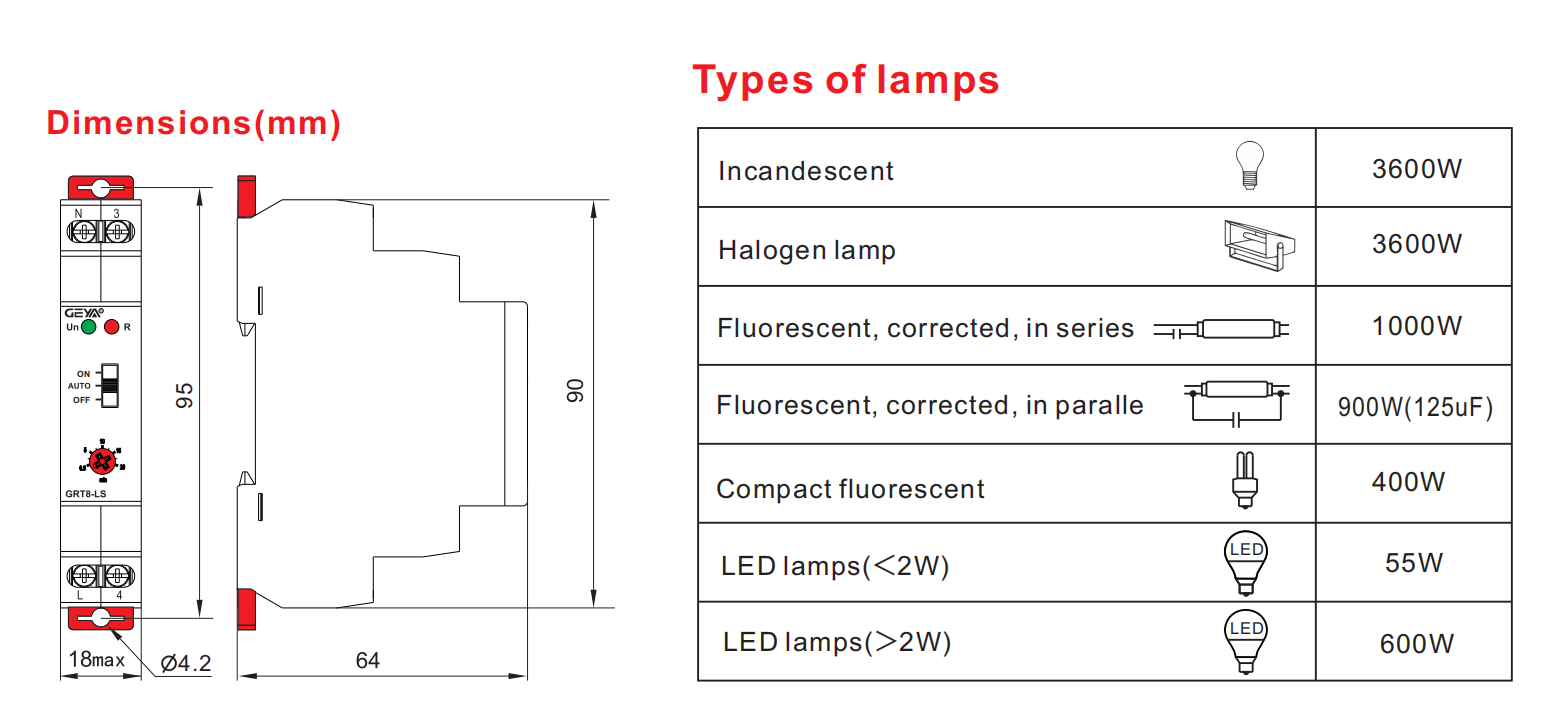

Dimensions
90×18×64mm
Weight
65g
Standards
EN61812-1,IEC60669-2-3,IEC60947-5-1
