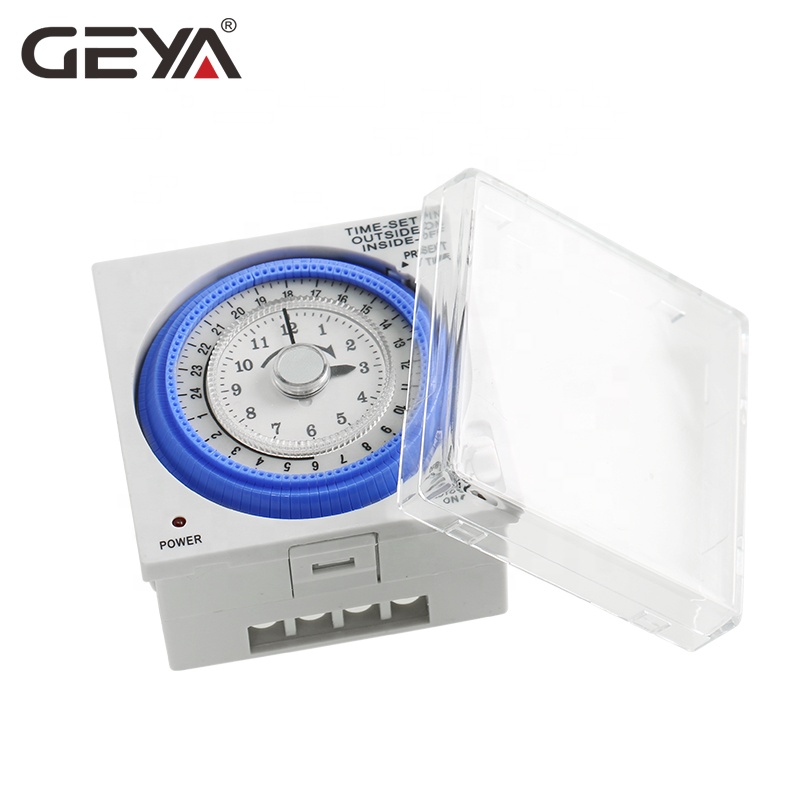

GEYA TB37 Mechanical Din Switch Timer 110V or 220V 15 Minute Adjustable Timer Manual or Automatic Control

General TB37 Mechanical Time Switch is suit for water heater, Water dispensers, Street lamp, Staircase lamp, Advertising lamp boxes, Breed aquatics, Irrigate, Office power auto control, in anywhere need time control in home or industrial, etc. *With battery *96 switching segments *Quartz controlled *Shortest switching time:15 minutes Specifications 1. Operating voltage: 110VAC,220VAC 2. Voltage tolerance: 90-121VAC, 200-264VAC 3. Frequency: 50/60Hz, common use 4. Time precision: synchronous with power frequency 5. Time range: 24 hours 6. Power consumption:1.5W 7. Circuit: 1 circuit 8. Circuit configuration: separate circuit, voltage is not applied to the load circuit 9. Contact configuration:Single pole single through 10. Manual ON/OFF: with ON/AUTO/OFF switch 11. Resistance: 15A 12. Incandescent lamp: 10A 13. Induction(COSφ=0.7): 12A 14. Motor(COSφ=0.7):110VAC 750W 220VAC 1500W 15. Setting method: Setting tip all built-in 16. Minimum setting unit: 15 minutes 17. Minimum setting interval: 15 minutes interval 18. Operation: Standard 96 operations 19. Ambient temperature: -10°~+50°C 20. Ambient humidity: Max. 85%RH
