GEYA TB388 Non Power Failure 24 Hours Mechanical Timer Switch with Battery 100V-240V 15A Time Circuit Diagram

GEYA TB388 Non Power Failure 24 Hours Mechanical Timer Switch with Battery 100V-240V 15A Time Circuit Diagram

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Tb388 Non Power Failure 24 Hours Mechanical Timer Switch With Battery 100v-240v 15a Time Circuit Diagram - Buy Mechanical Timer Switch mechanical Timer Switch din Mechanical Timer Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

············This link price is only for TB388 without battery···········
GEYA TB388 Non Power Failure 24 Hours Mechanical Timer Switch with Battery 100V-240V 15A Time Circuit Diagram
GEYA TB388 Non Power Failure 24 Hours Mechanical Timer Switch with Battery 100V-240V 15A Time Circuit Diagram
GEYA TB388 Non Power Failure 24 Hours Mechanical Timer Switch with Battery 100V-240V 15A Time Circuit Diagram
General TB388 Timer Switch is according to the time set by the user,automatically turn on and turn off the variety of electrical equipment.Control object can lights,light boxes,neon signs,production equipment, agriculture,aquaculture,warehouse exhaust dehumidifier automatically preheat optioml control products,such as radio and television equipment. Technical Data - Analogue time switch - 1 channel - Switching status display - Daily program - With power reserve (Nickel metal hydride battery replacement ) - 96 switching segments - Quartz controlled - Shortest switching time: 15 minutes - Clock hands for time display - Simple summer/winter time correction - Switch construction:SPST
Operating voltage
110-230 V AC
Frequency
50-60 Hz
Width
5 modules
Installation type

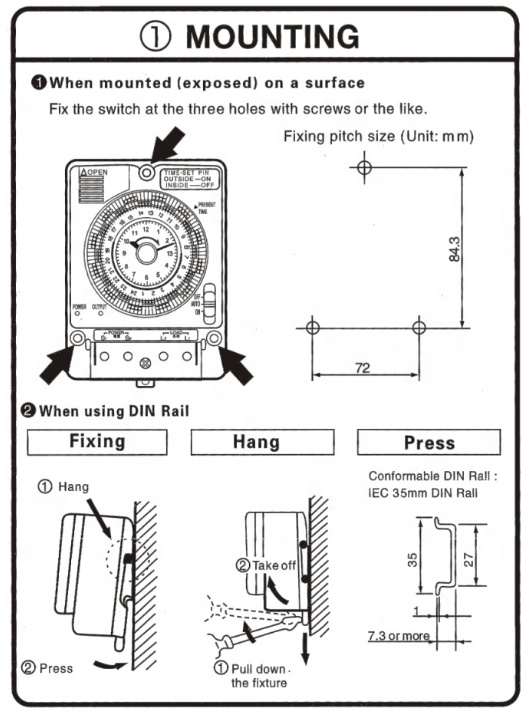

DIN-rail
Program
Daily program
Power reserve
300 hours
Max. switching capacity at 250 V AC, cos φ = 1
20 A
Max. switching capacity at 250 V AC, cos φ = 0.6
12 A
Shortest switching time
15 min
Programmable every
15 min
Time accuracy
≤ ± 2 s/day(Quartz)
Power consumption
3 VA
Type of protection
IP 20
Protection class
II in accordance with EN 60 730-1
Ambient temperature
–10 °C ~ +50 °C
