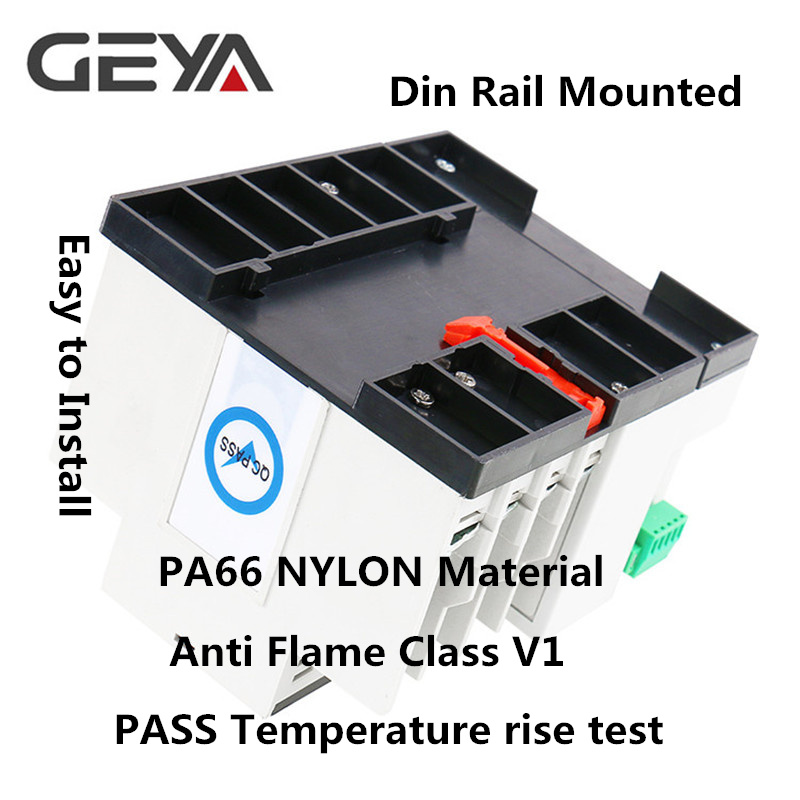

GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct

GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya W2r-100 Din Rail Breaker 100a Ats Automatic Transfer Switch Ats Factory Direct - Buy Automatic Transfer Switch din Rail Breaker ats Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

*****THIS LINK ONLY FOR W2R-4P-110V*****
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct

W2R-100 series dual power automatic transfer switch is new developed micro household power transfer switch..

The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.

W2R-100 series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.

ATSE is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1 : Multiple functional equipment and transfer switch equipment.
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
ITEM NO.
W2R-ATS
Rated current Ie(A)
16A, 20A, 25A, 32A, 40A, 50A, 63A,100A
Installation
Din rail
Rated insulation voltage Ui (V)
AC690, 50HZ
Rated working voltage Ue (V)
AC400, 50HZ
Rated impulse withstand voltage (KV )
8KV
Poles
2P 3P 4P
Weight (KG)
1.7 2.1 2.6
Connecting and breaking
6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times
Operating performance
2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times
Rated limited short-circuit current Iq
50KA
SCPD (FUSES )
RT16-00-63A
Control circuit
Rated supply voltage Us: AC220V, 50HZ.
Working condition:85% Us~110% Us
Ancillary circuit
Two isolated relays, each relay with 2 groups of passive
switch contact. Contact capacity: AC220 50Hz, Ie=5A
Switching time
<50ms
Action time
<50ms
GEYA W2R-100 Din Rail Breaker 100A ATS Automatic Transfer Switch ATS Factory Direct
Items
Specifical
PCS/CTN
Item Size
(CM)
Carton Size
(CM)
K.W.
(KG)
N.W.
(KG)
W2R-2P
220V
16-100A
20
14*11*9
55.5*30*30
12.80
12.20
W2R-3P
220V
20
14*11*9
55.5*30*20.5
14.40
14.00
W2R-4P
220V
20
17*11*9
55.5*37*20.5
16.20
15.80
W2R-2P
110V
16-100A
20
14*11*9
55.5*30*30
12.80
17.40
W2R-3P
110V
20
14*11*9
55.5*30*20.5
14.40
14.00
W2R-4P
110V
20
17*11*9
55.5*37*20.5
16.20
15.80
