GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch

GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya W2r-100 Din Rail Power Transfer Switch Oems Ats Switch Ats 2p 3p 4p 100a Ac 220v 4p 63a Ats Pc Transfer Switch - Buy Generator Ats Controller Automatic Transfer Switch dual Power Changeover Switch 2p 3p 4p Ats 63a 100a 125a Ats Switch Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA W2R-100 Din Rail Power Transfer Switch ATS 2P 3P 4P 100A OEMS ATS Switch AC 220V 4P 63A ATS
This link price is only for W2R-4P-220V. if you need other specifications, please feel free to contact us!
GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch
GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch
GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch
GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch
GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch
GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch
GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch
GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch

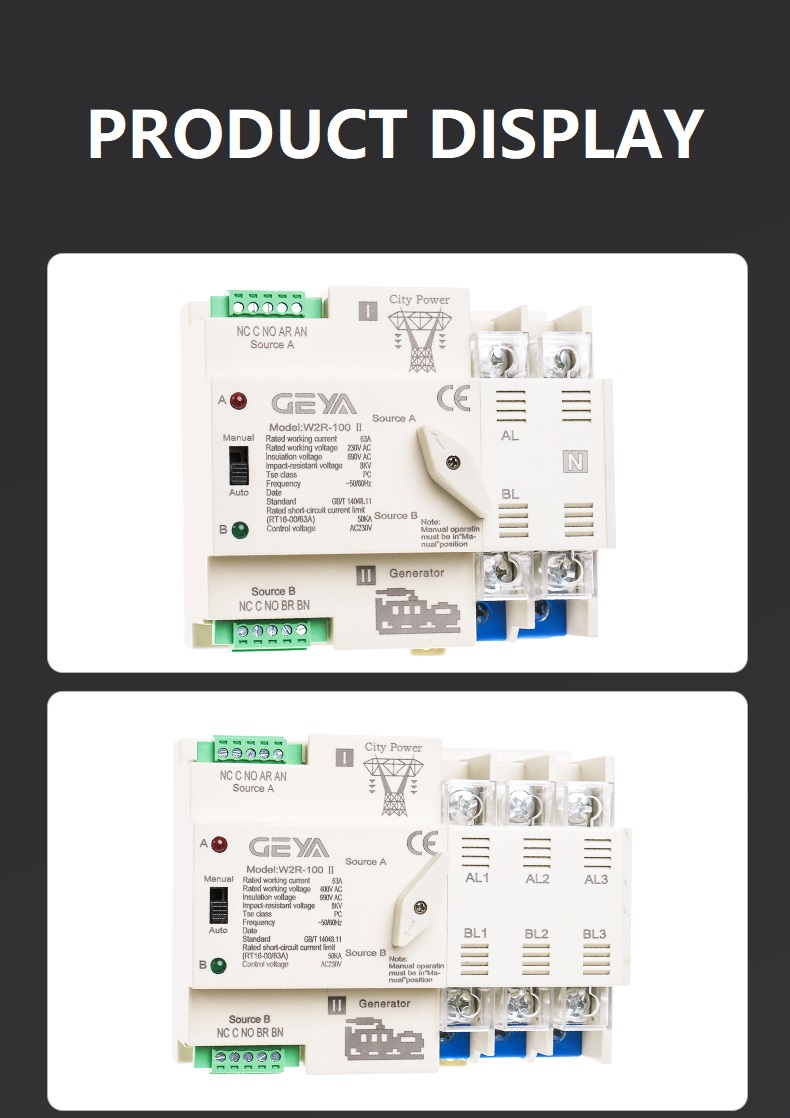

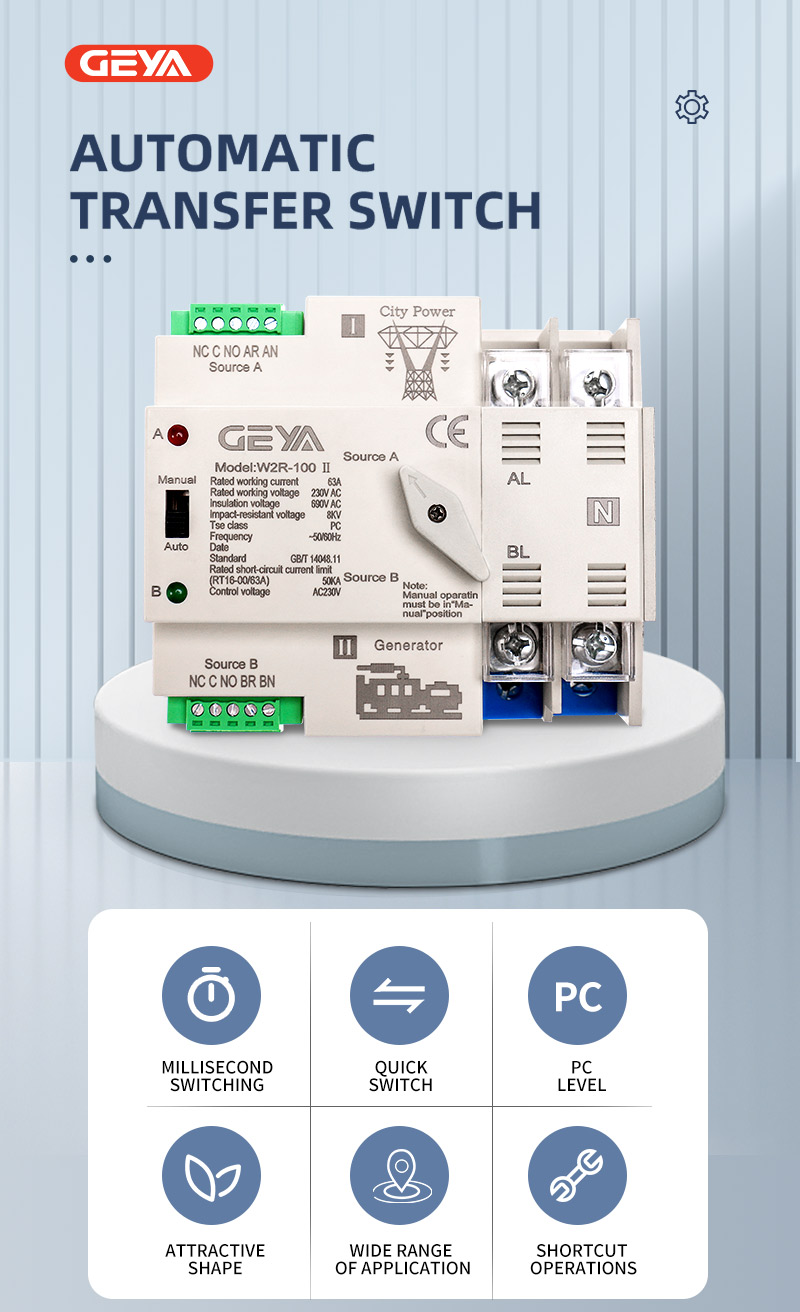

W2R series dual power automatic transfer switch is new developed micro household power transfer switch.

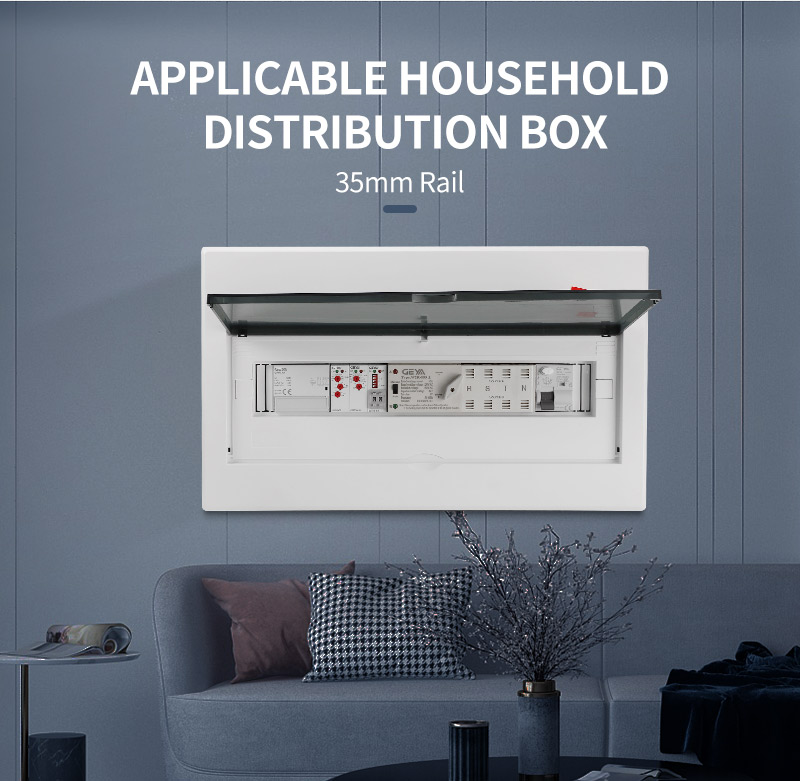

The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuity, reliability, and safety of the power supply. The product is specially designed for household orbit-type installation and is especially useful in the PZ30 power distribution boxes. W2R series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternating current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in installation and maintenance, and has a long life expectancy. Widely used In various occasions where continuous power failure is not allowed, it can be operated both electrically and manually. ATSE is composed of TSE and the controller. ATSE compiles with requirements of Low-voltage Switch Gear and Control Gear specified by GB/T14048. 11, Part 6-1: Multiple functional equipment and transfer switch equipment.
Rated current le A
16 20 25 32 40 50 63
100
Insulation voltage Ui
AC 690V
Rated voltage Ue
AC 400V
Grade
Grade PC:able to male and withstand,not to break short-circuit current
Use category
AC-33iB
Pole
2P
3P
4P
Weight(kg)
0.62
0.72
0.81
Life
Electrial:2000times;Mechanical:5000times
Rated conditionalshort-circuit current lq
50kA
SCPD (fuse)
RT16-00-63A
Rated impulsewithstand voltage
8kV
Control circuit
Rated control voltage Us:AC220V,50Hz Correct working condition85%Us~110%Us
Auxiliary circuit
AC220V/AC110V 50/60Hz

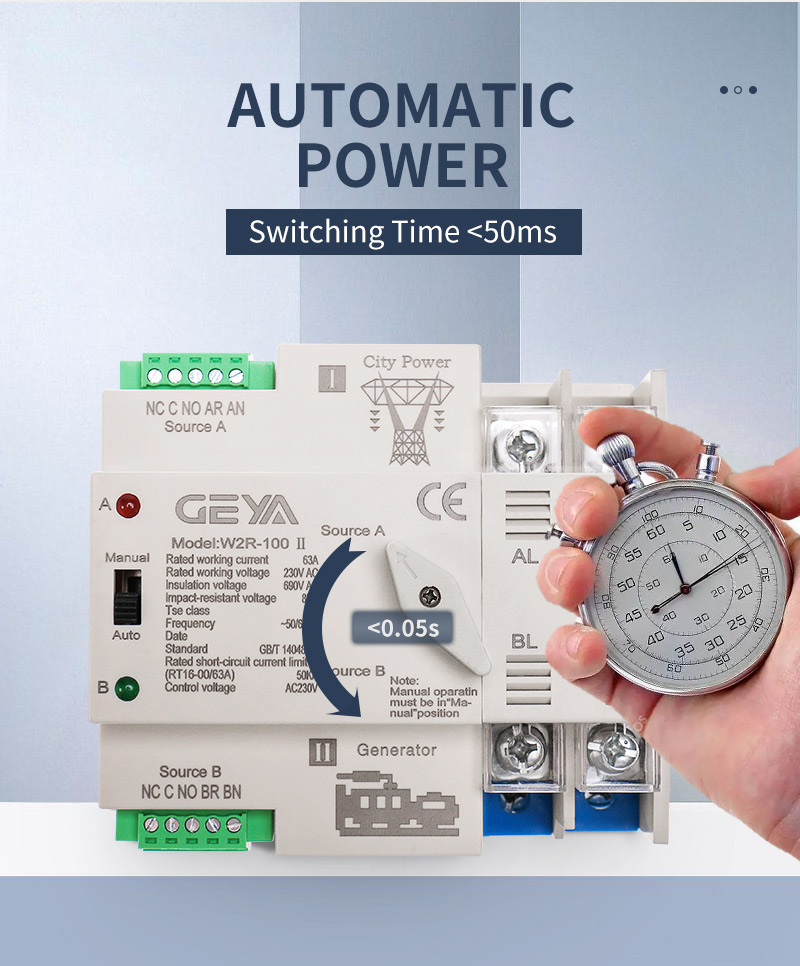

Contact transfer time
<50ms
Operating transfer time
<50ms
Return transfer time
<50ms
Off-time
<50ms
Temperature range
-5℃~+40℃average temperature not more than 35℃ in 24 hours
Items
Specifical
PCS/CTN
Item Size
(CM)
Carton Size
(CM)
K.W.
(KG)
N.W.
(KG)
W2R-2P
220V
16-100A
20
14*11*9
55.5*30*30
12.80
12.20
W2R-3P
220V
20
14*11*9
55.5*30*20.5
14.40
14.00
W2R-4P
220V
20
17*11*9
55.5*37*20.5
16.20
15.80
W2R-2P
110V
16-100A
20
14*11*9
55.5*30*30
12.80
17.40
W2R-3P
110V
20
14*11*9
55.5*30*20.5
14.40
14.00
W2R-4P
110V
20
17*11*9
55.5*37*20.5
16.20
15.80
W2R-2P
220V solar
16-100A
20
14*11*9
55.5*30*30
12.80
17.40
W2R-3P
220V solar
20
14*11*9
55.5*30*20.5
14.40
14.00
W2R-4P
220V solar
20
17*11*9
55.5*37*20.5
16.20
15.80
W2R-2P
110V solar
16-100A
20
14*11*9
55.5*30*30
12.80
17.40
W2R-3P
110V solar
20
14*11*9
55.5*30*20.5
14.40
14.00
W2R-4P
110V solar
20
17*11*9
55.5*37*20.5
16.20
15.80
