GEYA 1p-4p Miniature Circuit Breaker International Sales Electrical Symbol Circuit Breaker With Preferential Price 1-80A MCB

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya 1p-4p Miniature Circuit Breaker International Sales Electrical Symbol Circuit Breaker With Preferential Price 1-80a Mcb - Buy Mcb 1a 2a 3a 4a 6a 10a 16a 20a 25a 32a 40a 50a 63a Miniature Circuit Breaker circuit Breakers small Sized Circuit Breaker micro Circuit Breaker Mcb small Circuit Breaker mini Circuit Breaker Chint Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

············This link price is only for GYM10H-6kA-3P 10-25A···········

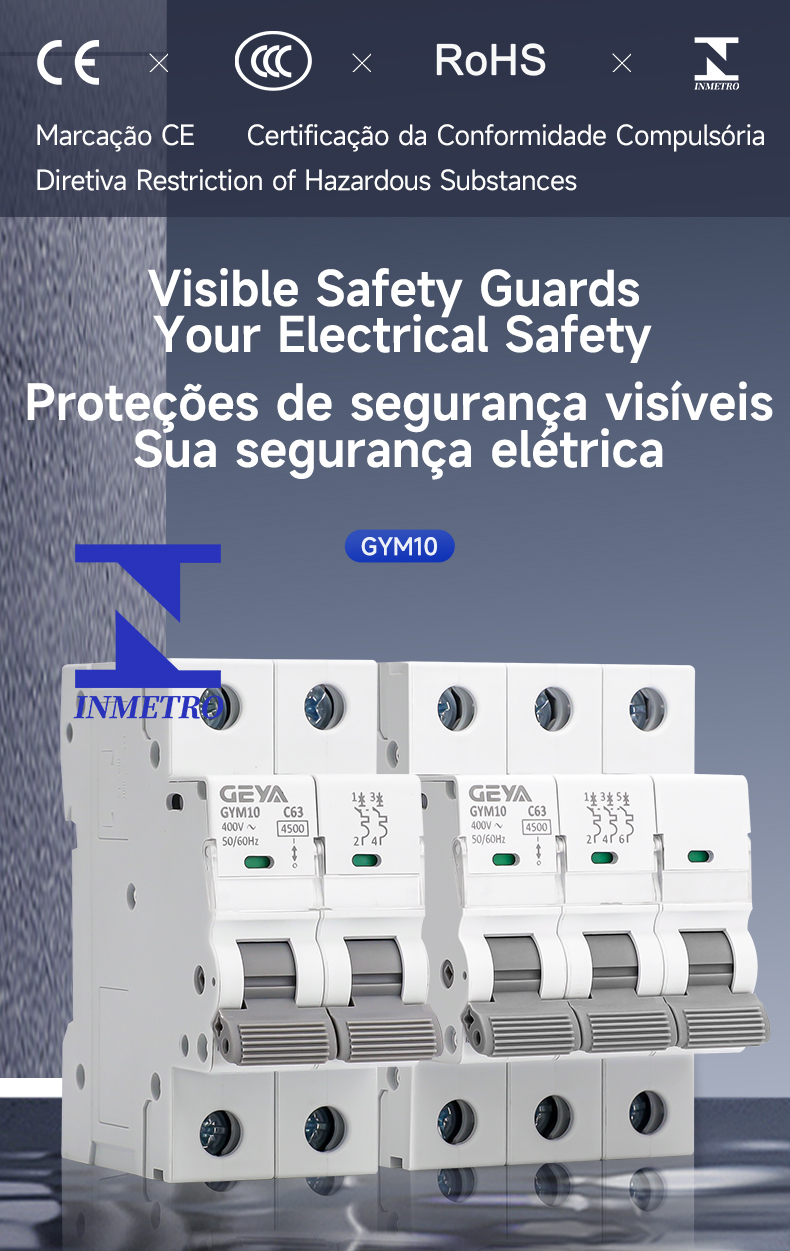

GYM10 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A.

It also can be used for non-frequent on-and-off switch operation under normal circumstance.

In complicance with IEC/EN60898-1 With indicator function in the contact position. Single busbar design. Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger. The price-quality ratio is very high.

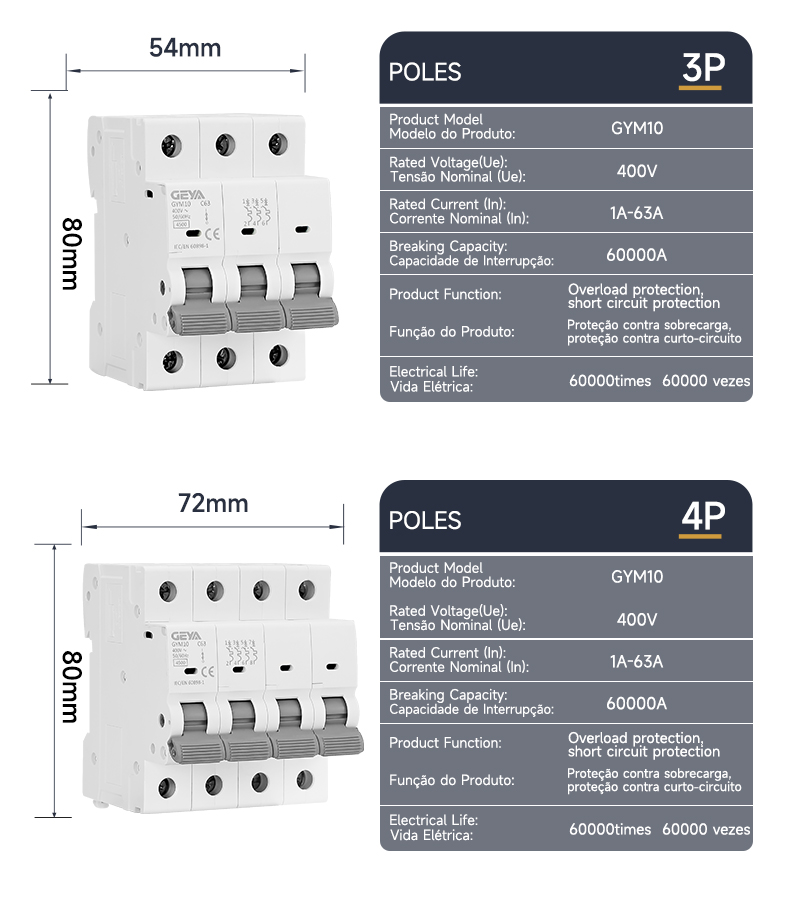

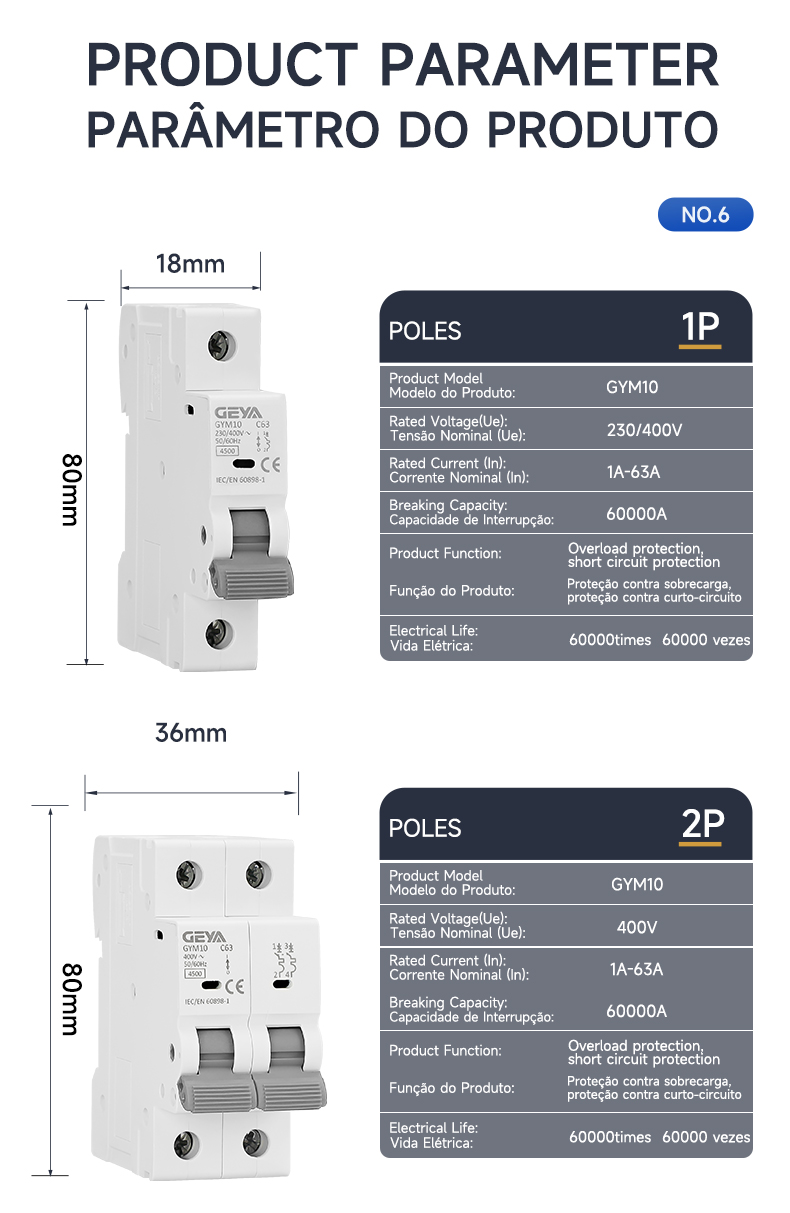

Rated current In	1-63A
Poles	1P 2P 3P 4P
Rated voltage Ue	1P:230/400V~ 2/3/4P:400~
Insulation voltage Ui	500v
Rated frequency	50/60Hz
Rated breaking capacity	4500/6000A
Rated impulse withstand voltage(1.2/50)Uimp	6kV
Dielectric test voltage at and ind.freq.for 1min	2kV
Polution degree	2
Thermo-magnetic release characteristic	B C D
Electrical life	4000
Mechanical life	10000
Installation
Contact position indicator	Yes
Portection degree	IP20
Reference temperature for setting of thermal element	30℃
Ambient temperature (with daily average ≤35℃)	-5~+40℃
Storage temperature	-25~+70C
Terminal connertion type	Cable/U-type busbar/Pin -type busbar
Terminal size top/bottom for cable	25mm² 18-3
Tightening torque	3.0N*m 22

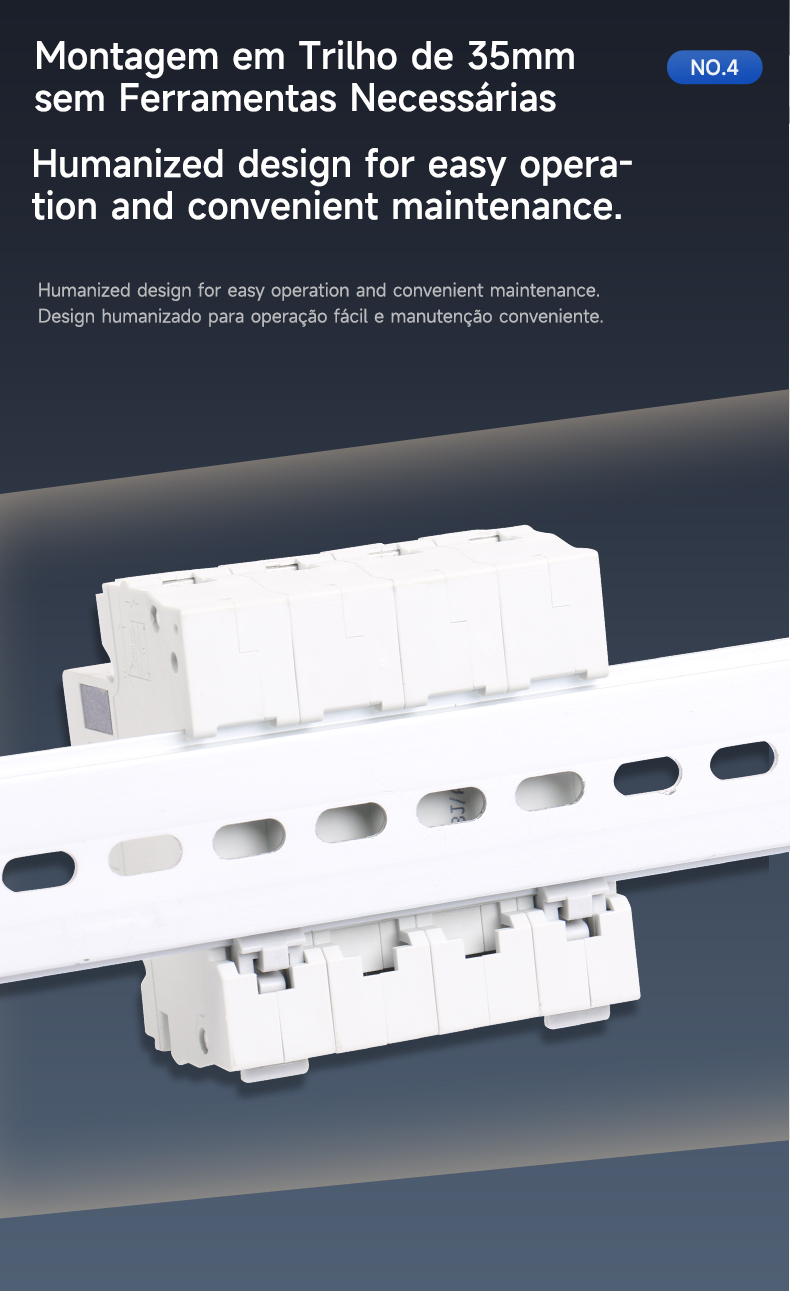

Mounting	On DIN rail FN 60715(35mm) by means of fast clip device
Connection	Top and bottom
Combination with accessories
Auxillary contact	Yes
Alarm contact	Yes
Shunt release	Yes
Undervoltage release	Yes
