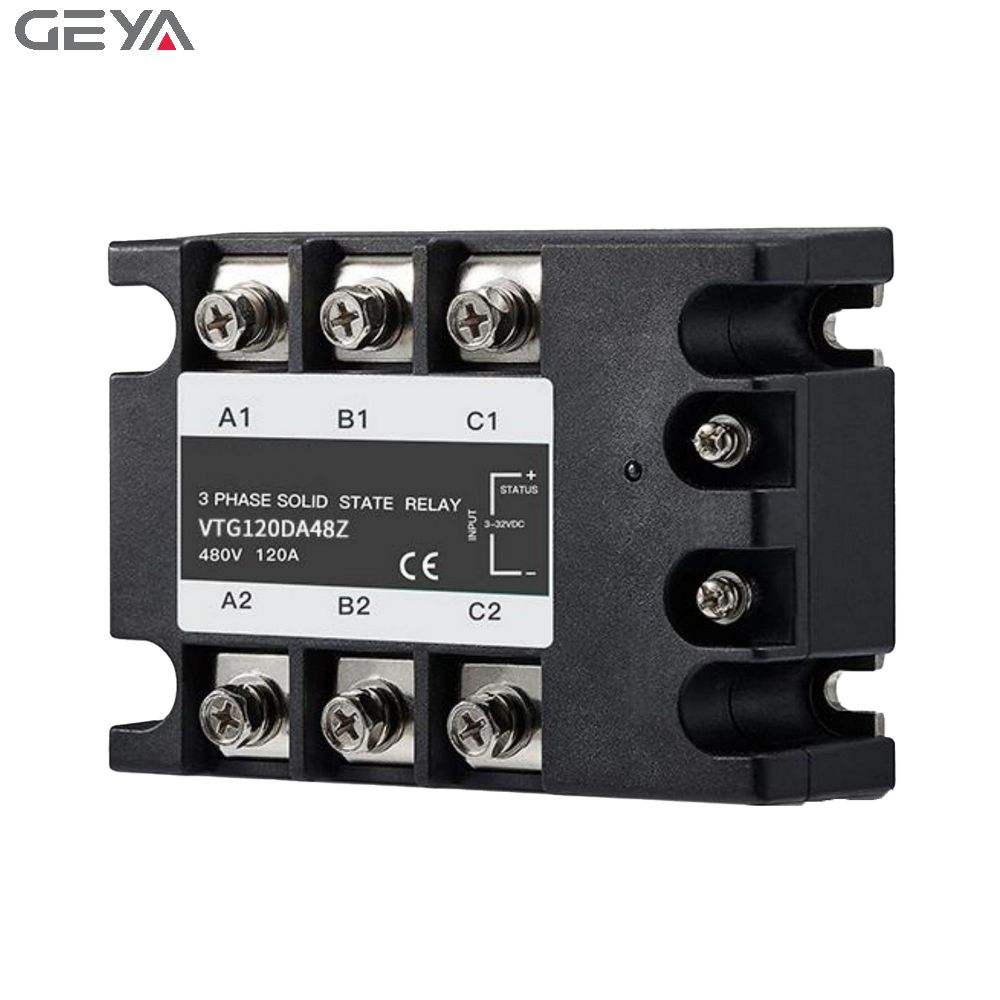

GEYA 3 Phase 3-32VDC 90-280VAC Starter Relay SSR 25A-150A Power Voltage Regulator 480v DC to AC Solid State Relay

GEYA 3 Phase 3-32VDC 90-280VAC Starter Relay SSR 25A-150A Power Voltage Regulator 480v DC to AC Solid State Relay

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Geya 3 Phase 3-32vdc 90-280vac Starter Relay Ssr 25a-150a Power Voltage Regulator 480v Dc To Ac Solid State Relay - Buy 100a Ac Output Three Phase 3 Phase Ssr Solid State Relay three Phase Solid State Relay Dc Control Ac Load Current 10a Load Voltage 24-480vac Control Voltage 3-32vdc 3p Ssr-10da 3 Phase Ssr 3-32vdc To 24-480vac Three Phase Solid State Relay 10a 25a 40a 60a 80a 100a 120a 150a 180a Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

Features
-Three-pole,single-throw,one normally open,suitable for three-phase loads
·Rated off-state voltage:480Vrms;530Vrms
·Theswitch type is zero-crossing conduction type and random conduction type
·Input control voltage:3-32Vdc,AC 90-280Vac
·Good thermal performance and long life
·Rated on-state current:3x25-150A
·Input/output insulation voltage: 2500Vrms
·LED input display
GEYA 3 Phase 3-32VDC 90-280VAC Starter Relay SSR 25A-150A Power Voltage Regulator 480v DC to AC Solid State Relay
GEYA 3 Phase 3-32VDC 90-280VAC Starter Relay SSR 25A-150A Power Voltage Regulator 480v DC to AC Solid State Relay
GEYA 3 Phase 3-32VDC 90-280VAC Starter Relay SSR 25A-150A Power Voltage Regulator 480v DC to AC Solid State Relay
Output Parameter
Units
Specification Limits
Model No.:VTG
Amps
25
40
60
80
100
120
150
Load Current Range
Arms
3x25
3x 40
3x60
3x80
3x100
3x120
3x150
Surge Current 20mSec [Max.]
Arms
300
400
600
800
1000
1200
1500
Load Voltage Range [480V]
Vrms
48 to 480
Transient Overvoltage [480V]
Vpk
≥1200
Load Voltage Range [530V]
Vrms
53 to 530
Transient Overvoltage [530V]
Vpk
≥1400
Frequency Range
Hz
47 to 63
Off State dv/dt [Min.]
V/usec
500
Off State Leakage Current [Max.]
mArms
≤8
On State Voltage Drop [Max.]
Vrms
1.8
Thermal Resistance,[Rthjc]
℃/W
0.75
0.55
0.46
0.38
0.34
0.23
0.23
Turn on Time [Max.]“Z”
Cycle
1/2
Turn off Time [Max.]“D”
Cycle
1/2
Turn on Time [Max.]“R”
mSec
1
Turn off Time [Max.]“A”
mSec
10
