Product Description

*****This link price is for GY500-6E4Y*****

GY500 series multi-function electric instrument is for electric power systems, industrial and mining enterprises, public facilities, intelligent building electricity monitoring requirements, and designs a glaze of the intelligent electric measuring instrument, integrated full electric parameter measurement (each phase current, voltage, active power, reactive power, apparent power, frequency, power factor, and Jiu parameter), as well as the comprehensive management of electric energy metering and examination of (four-quadrant electricity measurement and time-sharing electricity statistics). At the same time, it has a variety of peripheral interface functions for users to choose: RS485 communication interface based on Modbus-RTU protocol;4~20mA analog output can correspond to any measured electrical parameters; With switch input and relay output, circuit breaker switch can realize the "remote message" and "remote control" function; Active and reactive power pulse output function. Parameter setting and control can be realized through panel keys or communication, which is very suitable for a real-time power monitoring system.

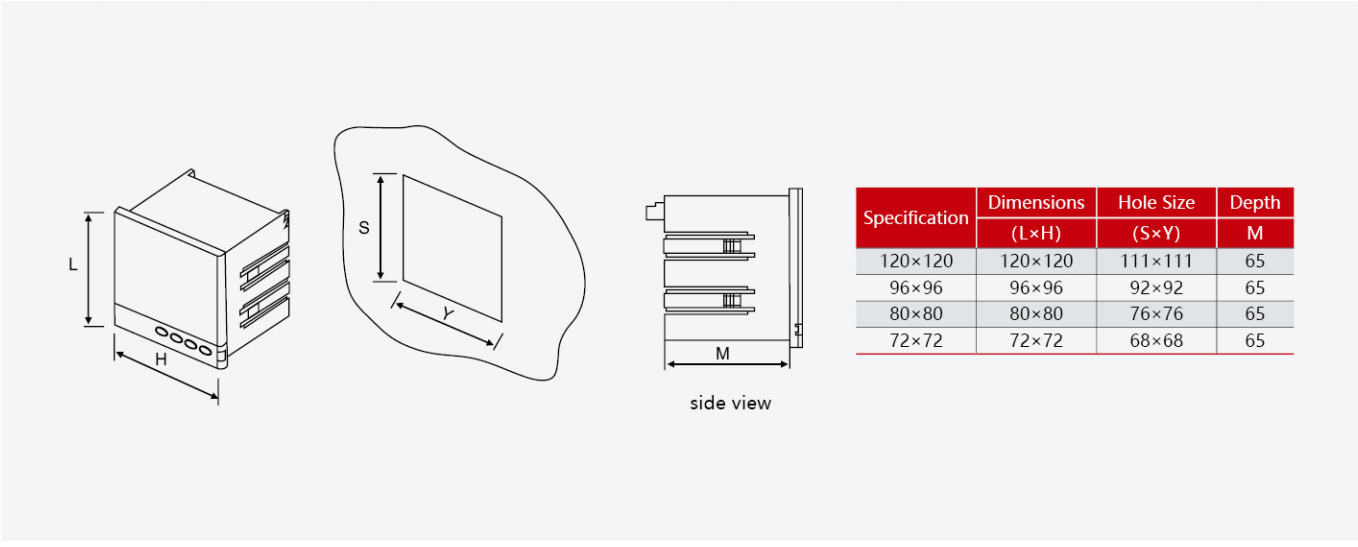

Installation and usage scenarios of power meters

Performance					Parameter
Input signal measurement	Internet			Three-phase three-wire, three-phase four-wire
		Voltage	Rated voltage	AC100V、AC400V、other
				Overload	Duration: 1.2 times lnstantaneous: 2 times
				Power consumption	<0.1VA (each phase)
				lmpedance	≥500kΩ
				Precision	0.005
		Current	Rated current	AC1A、AC5A
				Overload	Duration: 1.2 times Instantaneous: 2 times
				Power consumption	<0.4VA(each phase)
				lmpedance	<2mΩ
				Precision	0.005
		Frequency			40~65Hz,resolution 0.02Hz
		Power			Accuracy 0.5%
		Electricity			Four-quadrant electric energy measurement, active power accuracy is 0.5%, reactive power is 1%
		Display			Digital tube/LCD display
Power supply	Scope of work			AC/DC: 85~265V、AC220V、other
Power supply		Power			≤5VA
Communication	Digital interface			RS-485、MODBUS-RTU protocol (optional)
Output	Pulse output			Active and reactive energy pulse (optional)
		Switch output			Resistive 3A/250V (optional)
		Analog output			4~20mA(optional)
Input	Switch input			Optional coupling passive dry junction input (optional)
Safety	Pressure			Input-power>2kV, input-output>2kV,power-output>1kV
Safety		lnsulation			lnput,output, power supply to case>5MΩ
Ambient temperature					Working environment:-10~55℃ Storage environment:-20~75°℃
