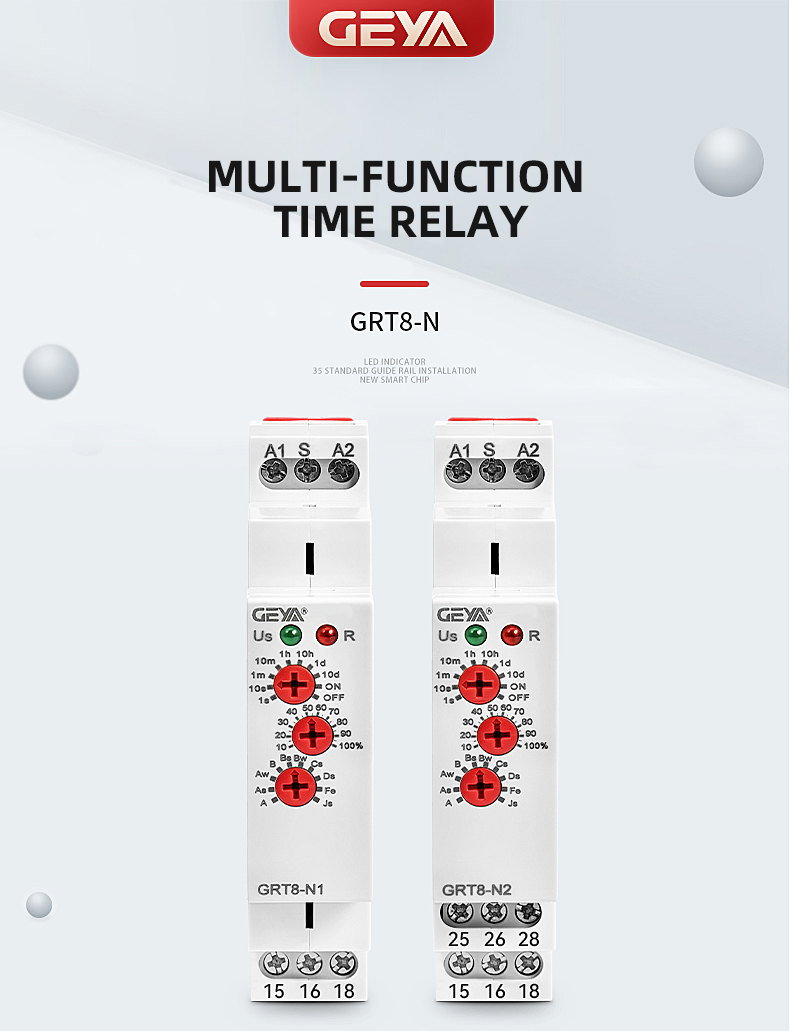

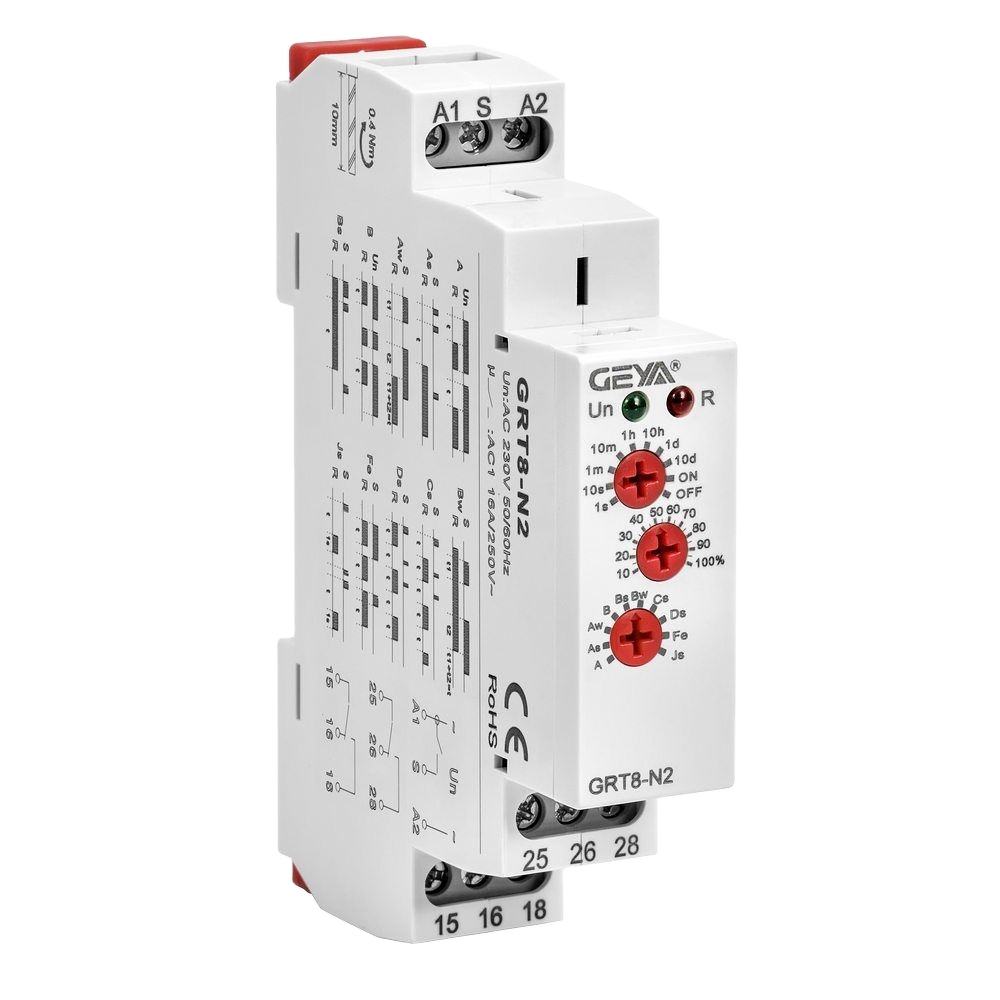

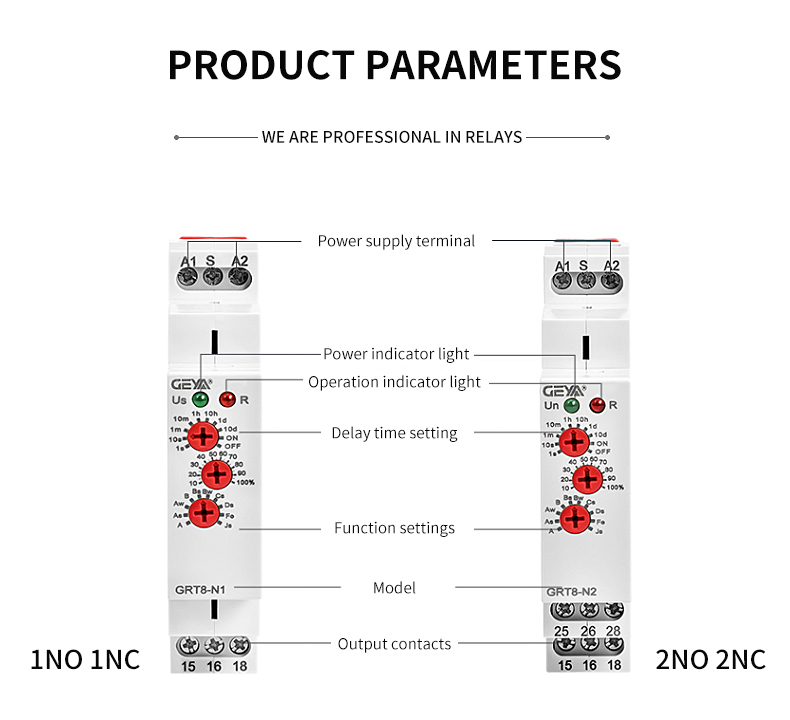

GRT8-N1 | GRT8-N2 | ||

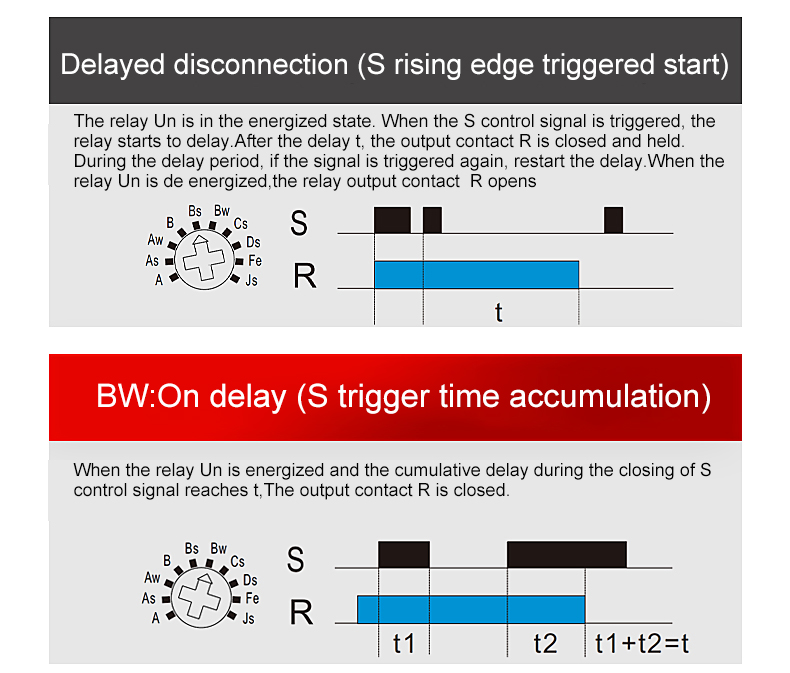

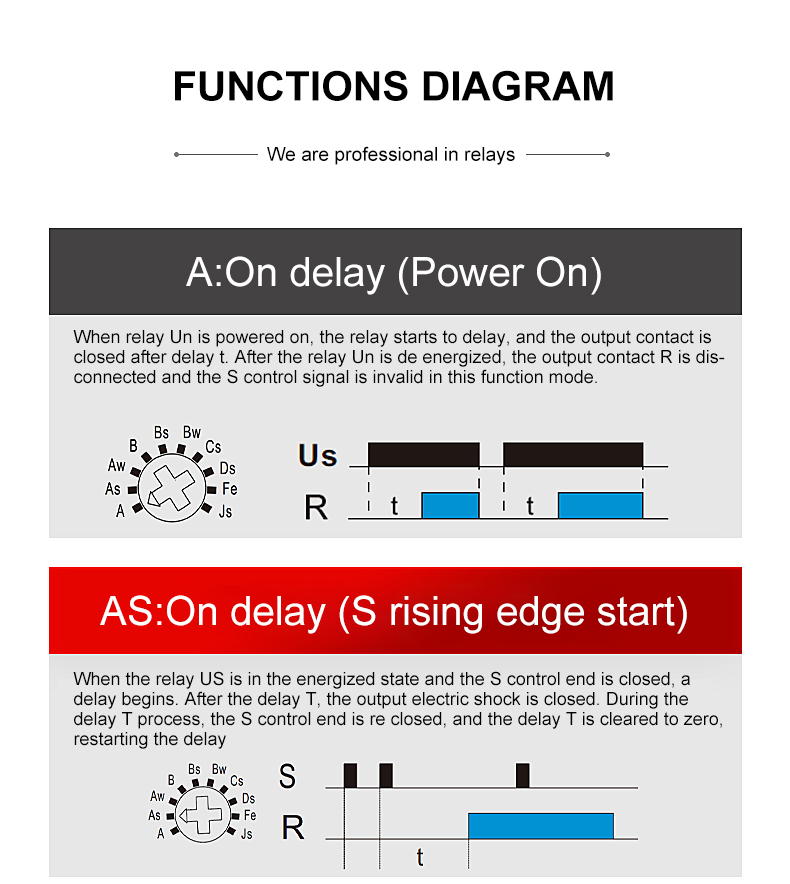

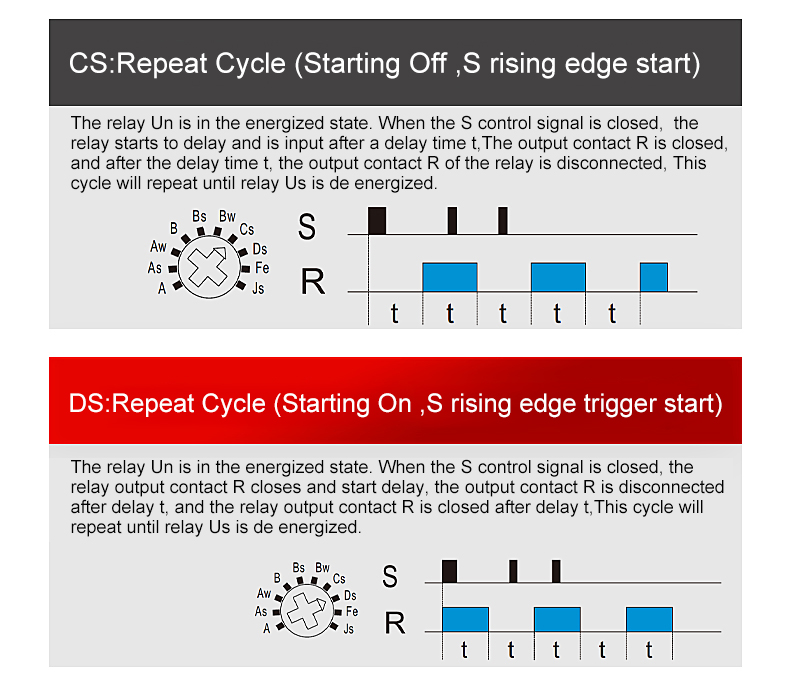

Function | A,As,Aw,B,Bs,Bw,Cs,Ds,Fe,Js | ||

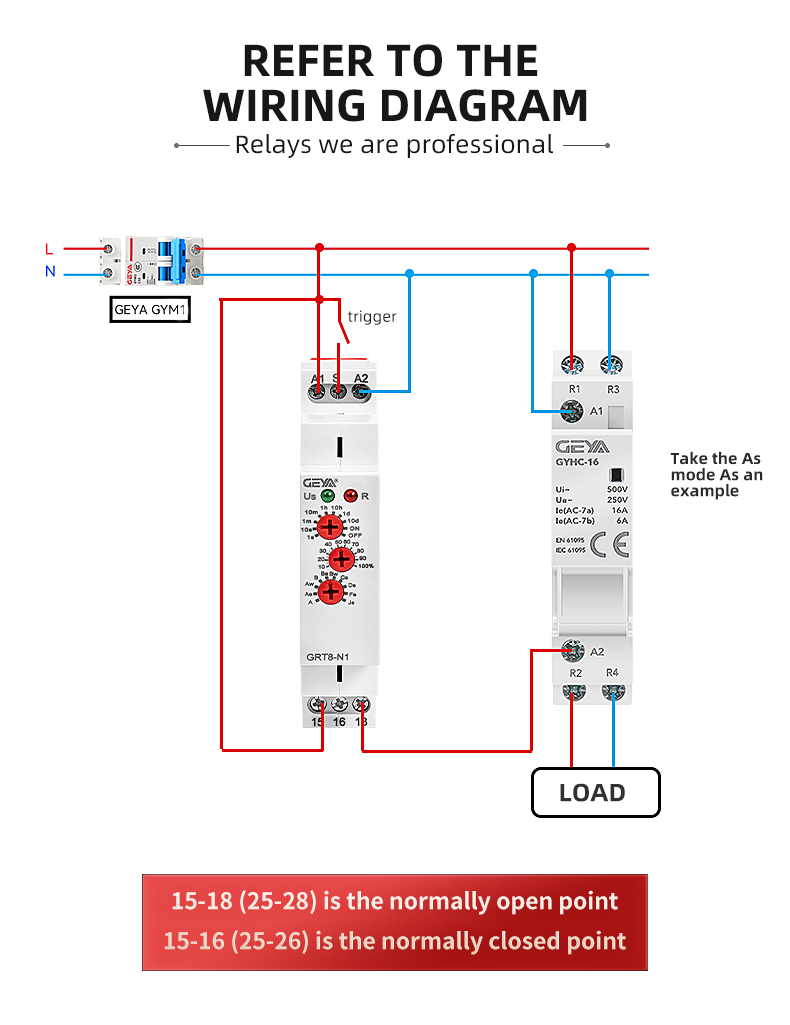

Supply terminals | A1-A2 | ||
Voltage range | AC/DC 12-240V(50-60Hz) | ||
Burden | AC 0.09-3VA/DC0.05-1.7W | ||
Voltage range | AC 230V(50-60Hz) | ||
Power input | ACmax.6VA/1.3W | AC max.6VA/1.9W | |
Supply voltage tolerance | -15%;+10% | ||
Supply indication | green LED | ||
Time ranges | 0.1s-10days,ON,OFF | ||
Time setting | potentionmeter | ||
Time deviation | 10%-mechanical setting | ||
Repeat accuracy | 0.2%-set value stability | ||
Temperature coefficient | 0.05%/C,at=20℃C(0.05%°,at=68°F) | ||
Output | 1×SPDT | 2×SPDT | |
Current rating | 1×16A(AC1) | 2×16A(AC1) | |
Switching voltage | 250VAC/24VDC | ||
Min.breaking capacity DC | 500mW | ||
Output indication | red LED | ||
Mechanical life | 1×10000000 | ||
Electrical life(AC1) | 1×100000 | ||
Reset time | max.200ms | ||
Operating temperature | -20℃ to+55℃(-4°F to 131°F) | ||
Storage temperature | -35℃ to +75℃(-22°Fto 158°F) | ||
Mounting/DIN rail | Din rail EN/IEC 60715 | ||
Protection degree | IP40 for front panel/IP20 terminals | ||
Operating position | any | ||
Overvoltage cathegory | III | ||
Pollution degree | 2 | ||
Max.cable size（mm²） | solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12) | ||

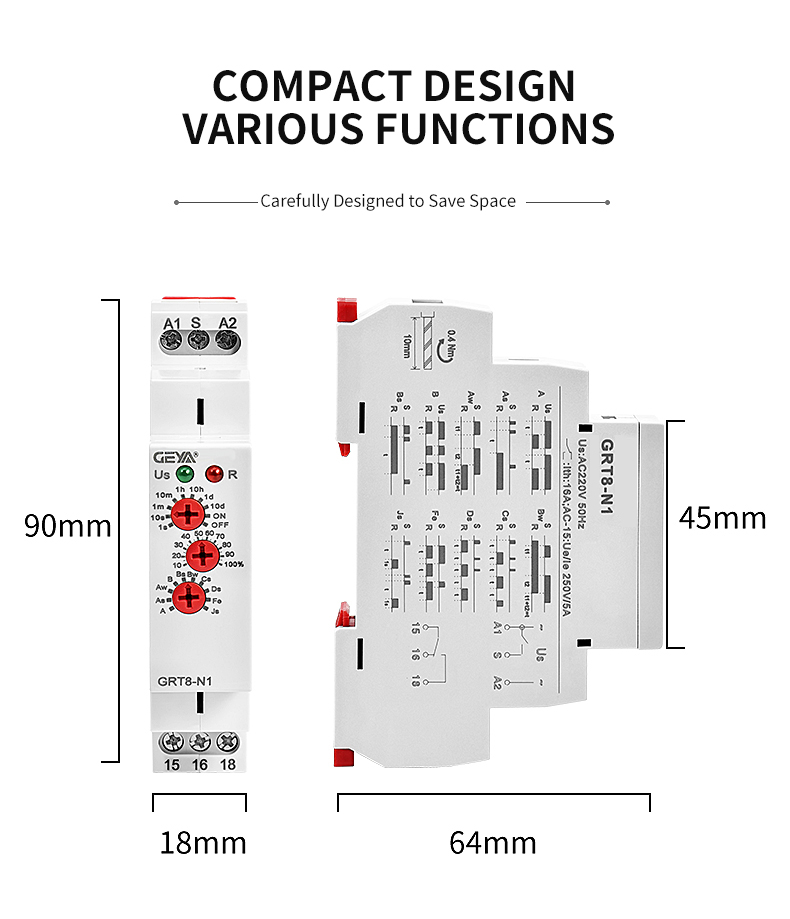

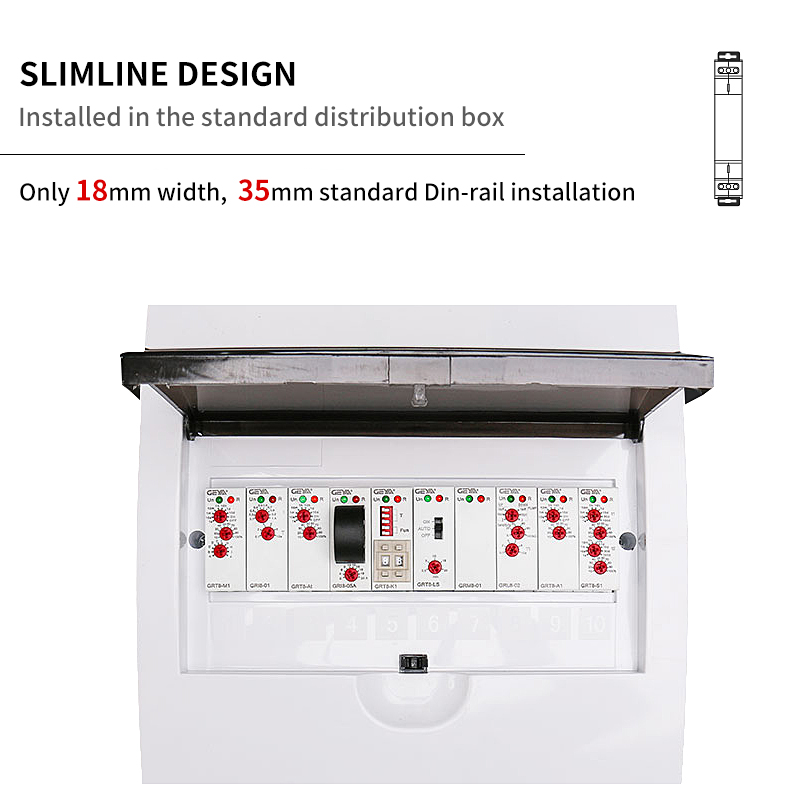

Dimensions | 90×18×64mm | ||
Weight | 1×SPDT:W240-62g,A230-60g | ||
2×SPDT:W240-82g,A230-81g | |||
Standards | EN 61812-1.IEC60947-5-1 | ||
Item | Specification | N.W. of product (g) | G.W. of product (g) | Medium box weight (g) | G.W. of 60pcs/CTN (kg) | G.W. of 100pcs/CTN(kg)±50g | G.W. of 200pcs/CTN(kg) |
GRT8-M1/N1 | A230 | 62.4 | 75.1 | 817 | 5.25 | 8.64 | 16.98 |
GRT8-M1/N1 | AC/DC12V~240V | 62.9 | 76.3 | 829 | 5.32 | 8.76 | 17.22 |
GRT8-M2/N2 | A230 | 81.7 | 94.3 | 1009 | 6.40 | 10.56 | 20.82 |
GRT8-M2/N2 | AC/DC12V~240V | 82.6 | 95.4 | 1020 | 6.47 | 10.67 | 21.04 |
