Product Description

···············This link price is only for AFDD-32 B/C16 6ka···············

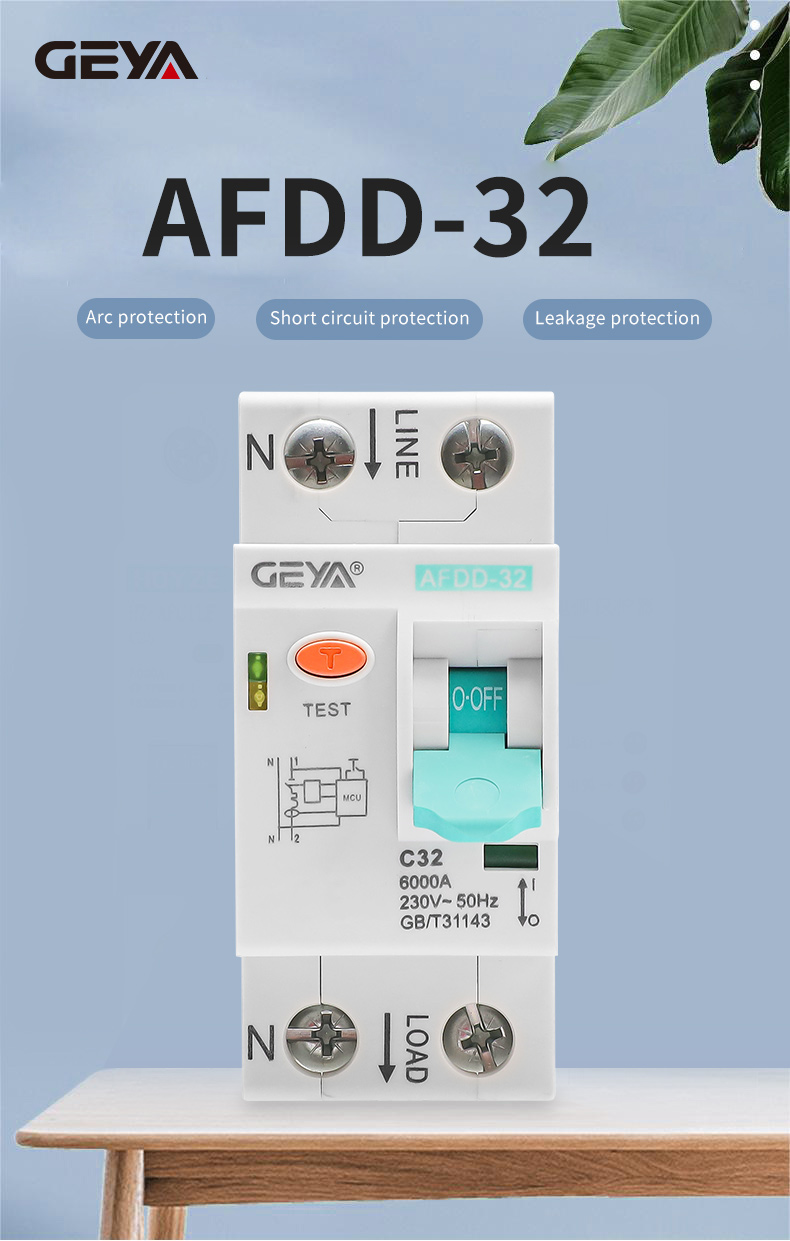

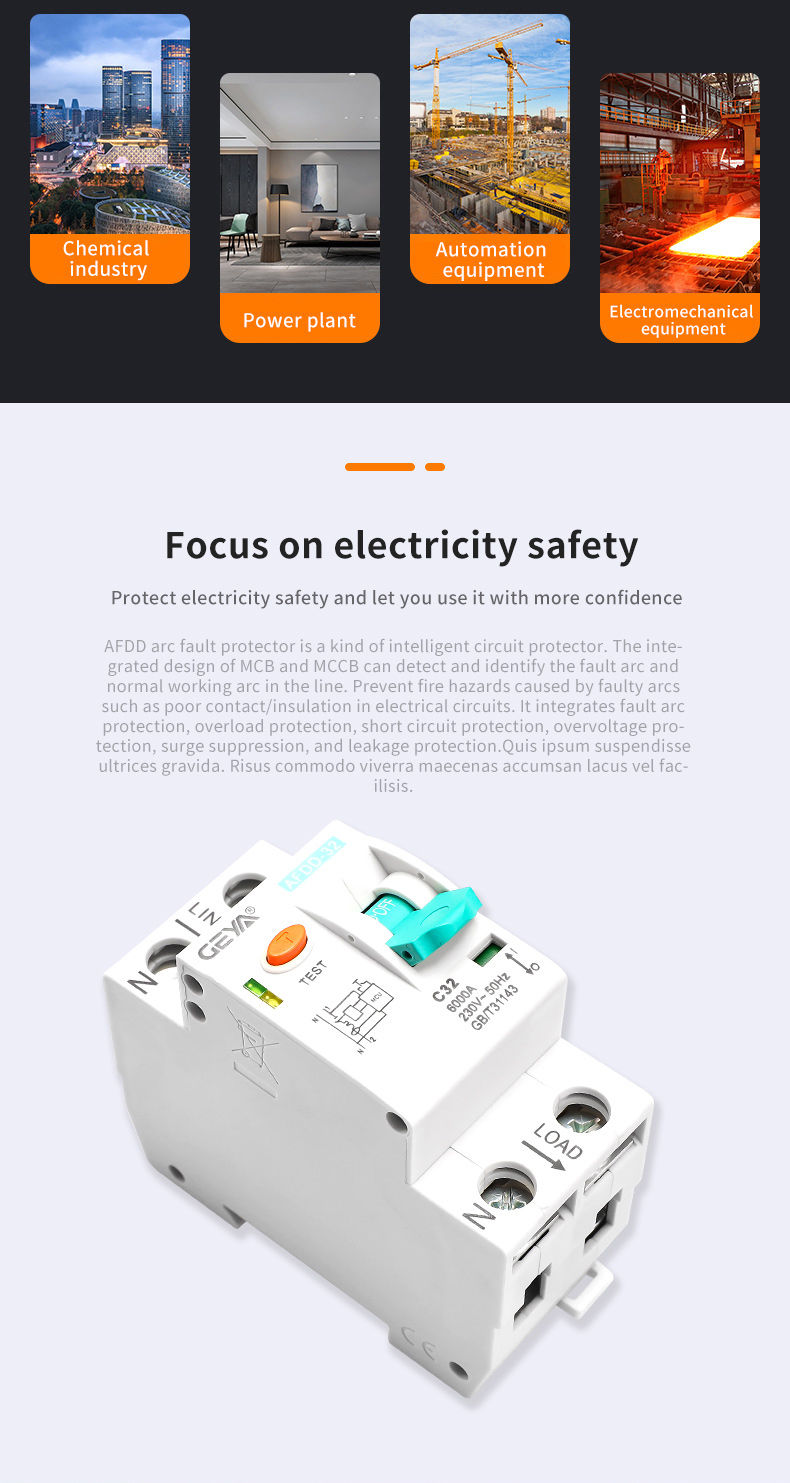

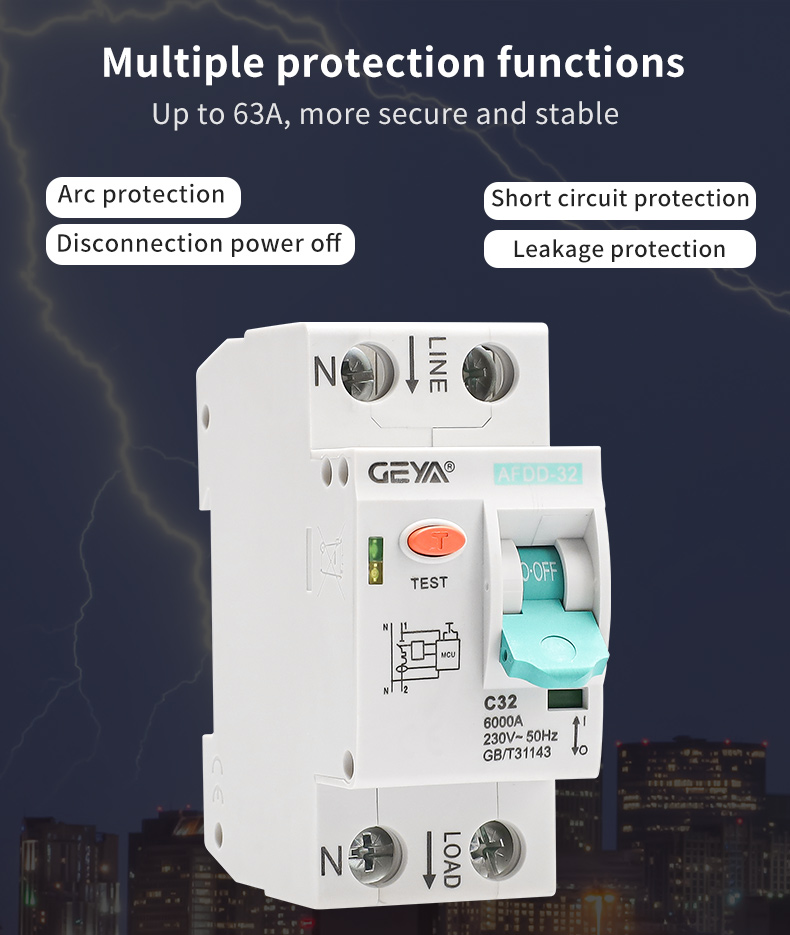

0verview： AFDD-32 incorporating MCB and arc fault detection module, provides protection against short circuit, overload and arc fault. The incorporated arc fault module detects and identify arc fault, which enables the product effectively disconnect the protected circuit against arc fault

Application： AFDD-32, applicable to AC circuit with rated current up to 32A, is widely used for household and similar installations. The arc fault detection module of AFDD-32 can effectively detect and identify arc faults happened to different circuits connected in series, in parallel and to earth resulted from disabled insulation layer due to aging, damaging or high humidity. The product trips and disconnects a protected circuit upon detection of arc faults.

Main technical parameters: 1)Rated voltage(Ue): AC230V 2)Rated frequency:50HZ±2% 3)Rated insulation voltage(Ui): 400V 4)Rated impulse withstand voltage(Uimp):4KV 5)Rated current(In):6A、10A、16A、20A、25A、32A 6)Magnetic tripping type: B-type、C-type 7)Rated service short circuit capacity(Ics):6KA 8)Rated short circuit capacity(Icn): 6KA 9)Insulation material class: III a 10)Grid distance(mm):40mm

Classification： Classified by rated current: 6A, 10A,16A,201,25A,32A Classified by magnetic tripping type:B and C type

Normal operating conditions: Ambient temperature is 5℃ or+40℃, the average daily highest temperature is+35℃. Relative humidity: Maximum value is 50% when the temperature is 40℃ and 90% when the temperature is 20℃.

item	value
Place of Origin	ZHE
Brand Name	GEYA
Model Number	AFDD-32
Type	Mini
Rated Voltage	AC230V
BCD Curve	B C
Rated Frequency	50Hz
Rated voltage(Ue)	AC230V
Rated frequency	50HZ±2%
Rated insulation voltage(Ui)	400V
Rated impulse withstand voltage(Uimp)	4KV
Rated current(In)	6A,10A,16A,20A,25A,32A
Magnetic tripping type	B-type,C-type
Rated short circuit capacity(Icn)	6KA
Insulation material class	III a

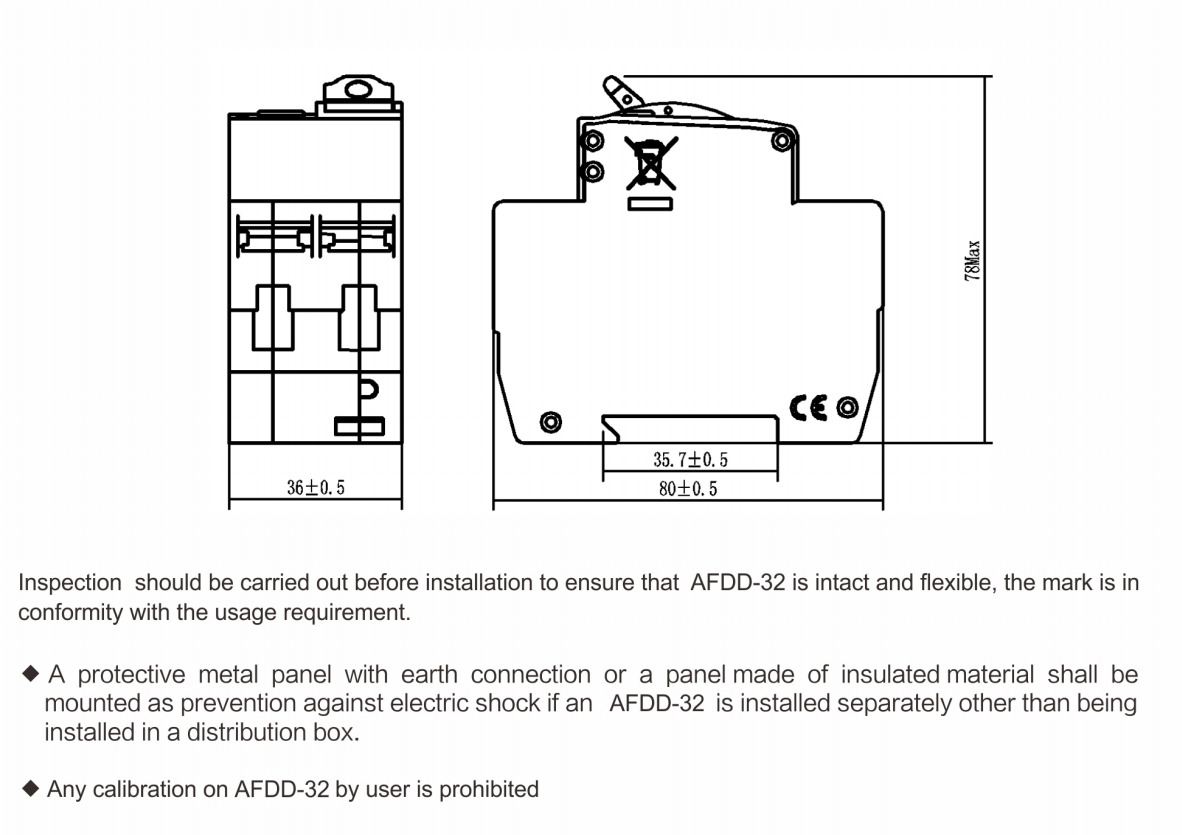

Grid distance(mm)	40mm

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.
