Product Description

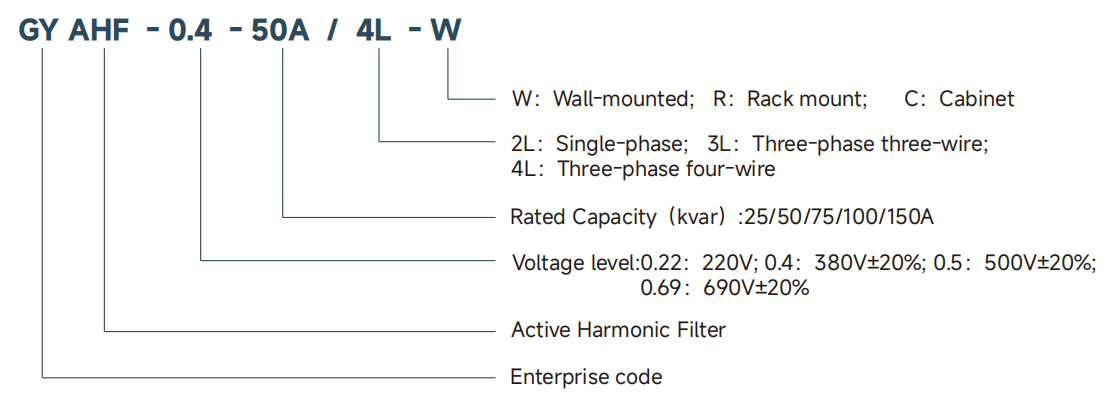

··········This link price is only for AHF-400-15A/3L··········

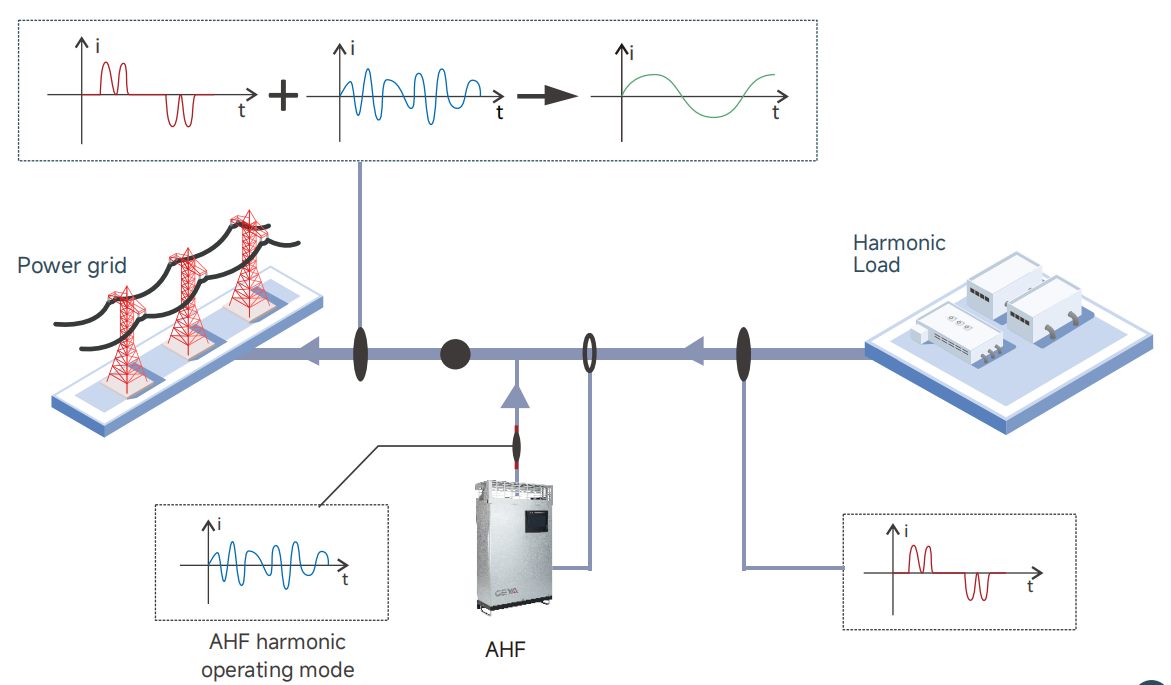

The working principle of the IGY AHF series active power filter is to detect the load current in real time, separate the harmonic currents one by one based on the specified harmonic current
detection algorithm, and generate control signals according to the set filtering percentage to drive the IGBT output and the load harmonic current amplitude, compensation currents with
the same value and opposite phase achieve the purpose of harmonic cancellation.

	220V series	380V series	500V series	690V series
Altitude	<2000m,above 2000m,derate according to GB/T3859.2
ambient temperature	-20~+50℃
Relative humidity	≤90%,no condensation on the surface when the monthly minimum temperature is 25℃
pollution level	Level IIlbelow
Operating Voltage	AC220V±20%	AC380V±20%	AC500V±20%	AC690V±20%
working frequency	50Hz±5%
Compensation current	25A	25/50/75/100/150A	100A	100A
Grid structure	L/N	3P3W/3P4W	3P3W/3P4W	3P3W/3P4W
Number of units connected in parallel	Ulimited
Overallmachine efficiency	≥97%
Grid structure	32kHz	16kHz	12.8kHz	12.8kHz
Compensation range	2~50times,single compensation rate is adjustable
Function selection	Reactive power	Reactive power,reactive power+asymmetry
Reactive power compensation rate	≥95%	>92%
Neutral filtering capability		Neutral line filtering capability is 3 times that of phase filtering capability
full response time	<10ms	<40ms	<40ms	<40ms
noise	≤60dB	≤60dB	≤65dB	≤65dB
control method	2-way RS⁴85 interface (supports GPRS/WIFI)
Protection	Overload, software/hardware overcurrent,grid overvoltage and undervoltage,power failure, overtemperature,frequency abnormality protection,etc	Overload,software/hardware overcurrent,grid overvoltage and undervoltage,grid voltage imbalance,power failure,overtemperature,frequency abnormality,short circuit protection,etc.
Installation method	Rack/wall-mounted			Rack
Incoming line	Back incoming(rack type)、 upper incoming(wall-mounted)			Back incoming line
Protection level	IP20

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.
