Product Description

·························This link price is only for GRD9L-C/D/R+GYM9 1P·······················

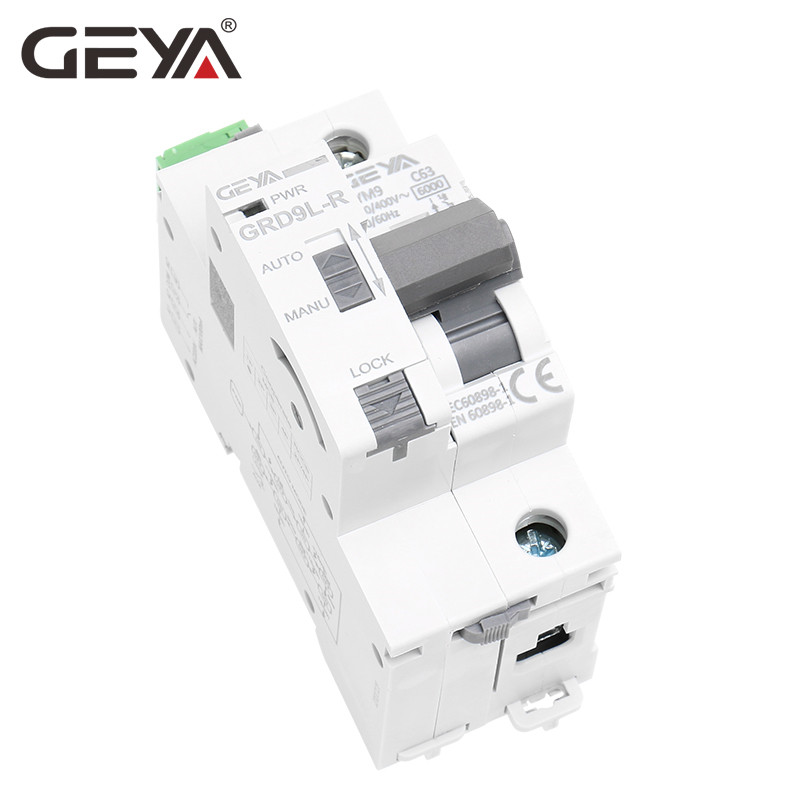

GEYA Din Rail GYM9 1P MCB with Autoreclose Device Automatic Reset Circuit Breaker Smart Home MCB Auto Recloser

(In case of unwanted tripping after an electrical fault)

HOW TO CHOOSE MCB RECLOSER Control Mode?

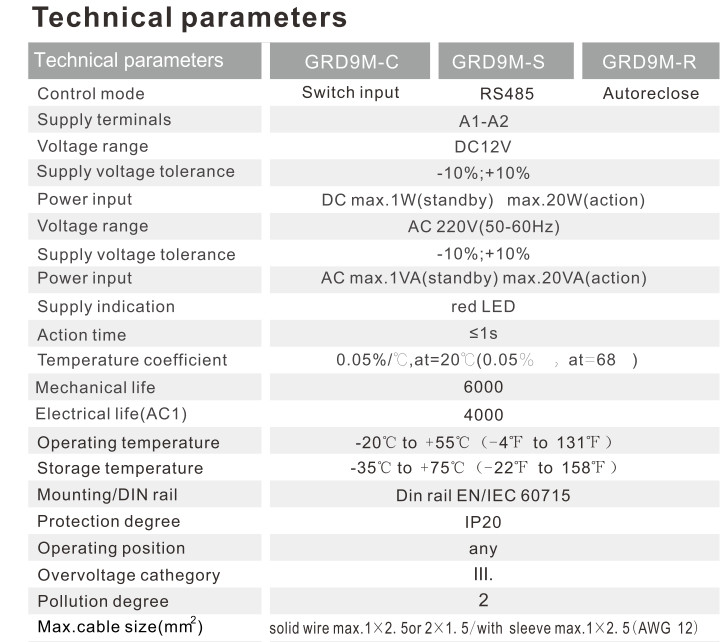

Recloser 6 type choice
GRD9M-C-DC= Recloser is Swicth Input Control Mode, DC12V
(For example: Connect with Relay, as a switch)
GRD9M-C-AC= Recloser is Swicth Input Control Mode, AC220V
(For example: Connect with Relay, as a switch)
GRD9M-S-DC= Recloser is RS485 Control Mode, DC12V
(Connect with Computer or PLC)
GRD9M-S-AC= Recloser is RS485 Control Mode, AC220V
(Connect with Computer or PLC)
GRD9M-R-DC= Recloser is Auto Reclose Control Mode, DC12V
(Autoreclose time 10s, 60s, 300s...could be customized)
GRD9M-R-DC= Recloser is Auto Reclose Control Mode, AC220V
(Autoreclose time 10s, 60s, 300s...could be customized)

GYM9+RD miniature circuit breaker with remote control the opening and closing function is mainly used forprotection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 6A to 63A. It also can be used for non-frequent on-and-off switch operation under normal circumstance.
-Control module and MCB using the built-in drive.
-Can choose to open or close the RD module.
-The RD module can be locked by a padlock.
-In complicance with IEC/EN60898-1.
-With indicator function in the contact position.
-Bilateral busbar wiringcapabilities to adapt to thewider use of premises.
-Maximum connecting ability of 25mm2 , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger.
