Home > Products > Automation Relay > GEYA Forward and Reverse Control Delay Time Relay of the Motor Digital Time Timer Relay Manufacture AC/DC 12V-240V
GEYA Forward and Reverse Control Delay Time Relay of the Motor Digital Time Timer Relay Manufacture AC/DC 12V-240V

GEYA Forward and Reverse Control Delay Time Relay of the Motor Digital Time Timer Relay Manufacture AC/DC 12V-240V

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:Geya Forward And Reverse Control Delay Time Relay Of The Motor Digital Time Timer Relay Manufacture Ac/dc 12v-240v - Buy Smart Time Relay Multifunctional Timer Relay trigger Time Delay Relay cycle Delay Time Relay Ac24-240v Din Rail Timers Modular Repeat On Off Mounted Relays Timer Digital Time Delay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

This link price is only for GRT8-FR AC/DC12V~240V



Applications -The forward and reverse control time relay can be used to control the forward and reverse rotation of the motor.

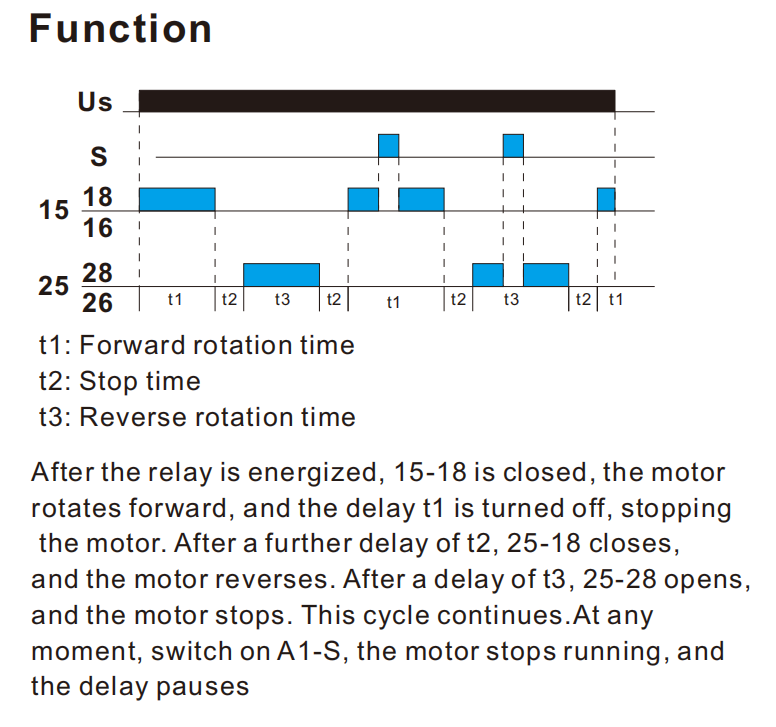

Function Features -You can individually set the forward, stop, and reverse times. -With a forced stop function, it can be pressed to stop forward or reverse rotation at any time. -Ultra wide delay range, 0.1 seconds - 99 days can be set. - Relay status is indicated by LED. - 1-MODULE,DIN rail mounting.
GEYA Forward and Reverse Control Delay Time Relay of the Motor Digital Time Timer Relay Manufacture AC/DC 12V-240V
GEYA Forward and Reverse Control Delay Time Relay of the Motor Digital Time Timer Relay Manufacture AC/DC 12V-240V
GEYA Forward and Reverse Control Delay Time Relay of the Motor Digital Time Timer Relay Manufacture AC/DC 12V-240V
GEYA Forward and Reverse Control Delay Time Relay of the Motor Digital Time Timer Relay Manufacture AC/DC 12V-240V
GEYA Forward and Reverse Control Delay Time Relay of the Motor Digital Time Timer Relay Manufacture AC/DC 12V-240V
GRT8-FR
Function
Forward and reverse control time relay
Supply terminals
A1-A2
Voltage range
AC/DC 12-240V(50-60Hz)
Burden
AC 0.09-3VA/DC0.05-1.7W
Voltage range
AC 230V(50-60Hz)
Power input
AC max.6VA/1.9W
Supply voltage tolerance
-15%;+10%
Time ranges
0.1s-99day,ON,OFF
Time setting
Key setting
Time devia tion
≤1%
Repeat accuracy
0.2%-set value stability
Temperature coefficient
0.05%/℃,at=20℃(0.05%F,at=68°F)
Output
2XSPDT
Current rating
2×16A(AC1)
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Reset time
max.200ms
Operating temperature
-20℃ to+55℃(-4°Fto 131°F)
Storage temperature
-35℃ to+75℃(-22°Fto 158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
Ⅲ.
Pollu tion degree
2
Max.cable size(mm²)
solid wire max.1×2.5or2×1.5/with sleeve max.1X2.5(AWG 12)

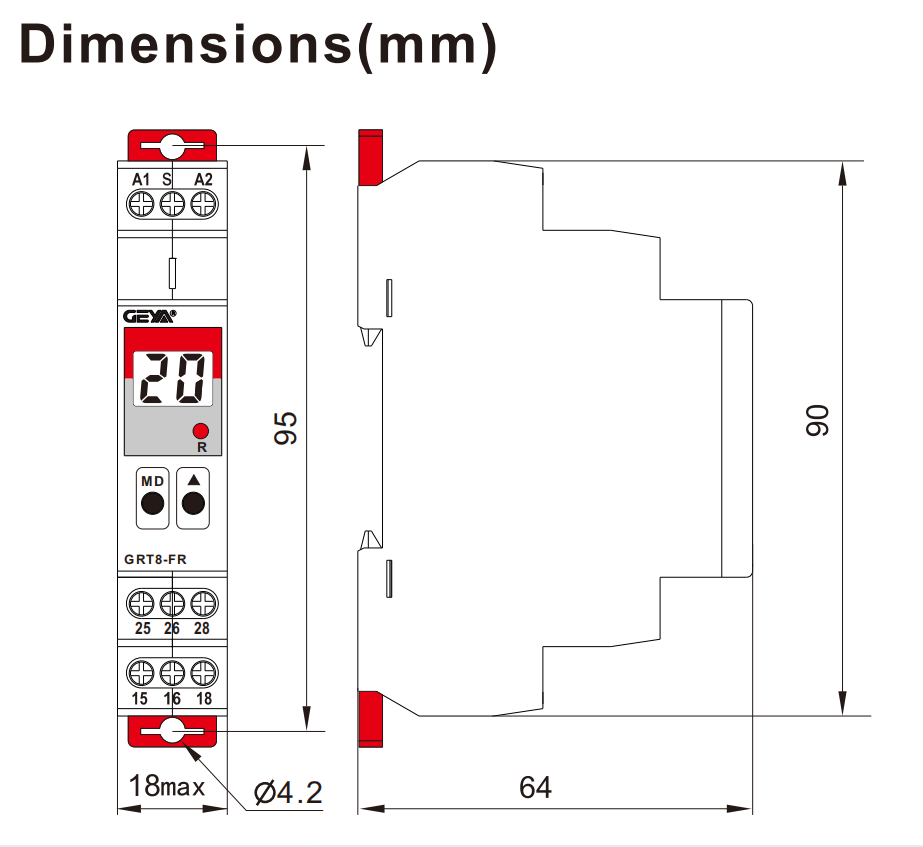

Dimensions
90×18×64mm
Weight
2XSPDT:W240-82g,A230-81g
Standards
EN61812-1,IEC60947-5-1
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-FR
A230
81.3
94.3
1009
6.40
10.56
20.82
GRT8-FR
AC/DC12V~240V
82.7
96.0
1026
6.51
10.73
21.16
