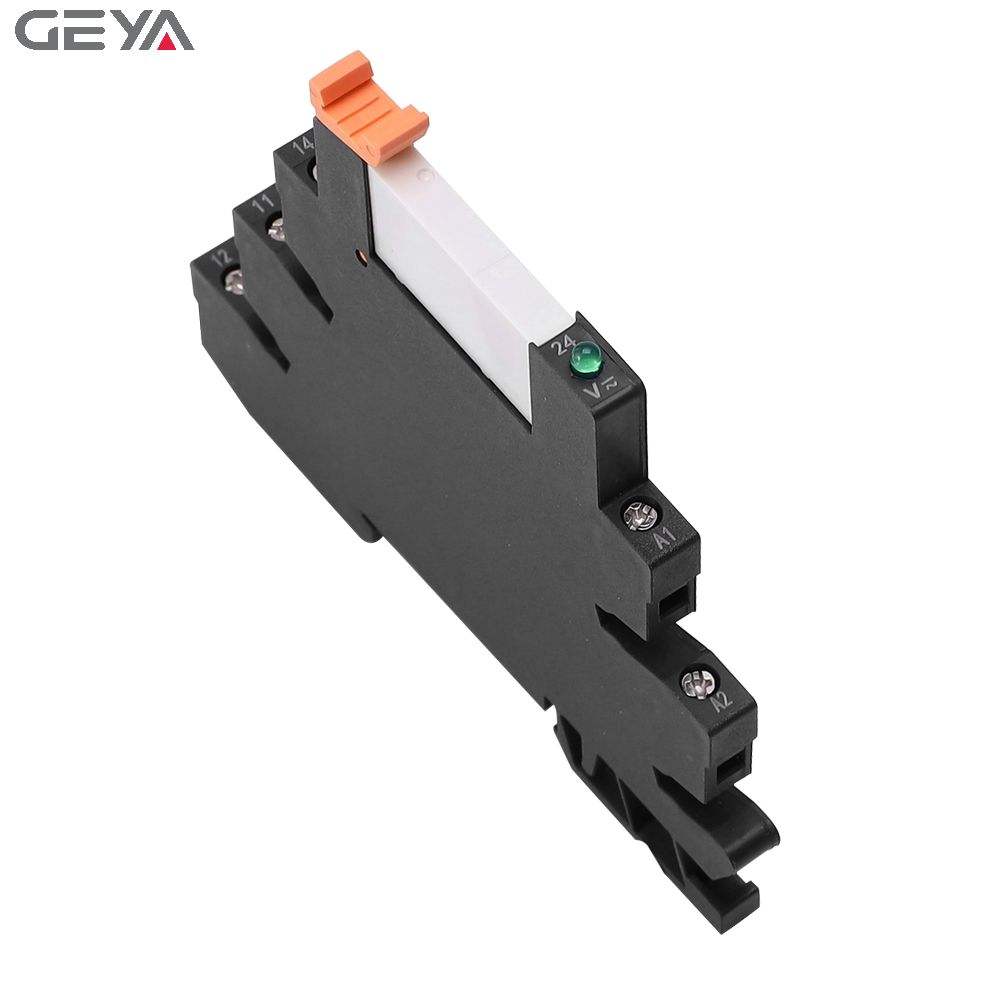

GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic

GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Fy-41f-1 Ac/dc24v Hongfa Relay With Socket 1 Channel Relay Module 12v 24v Ac Dc Relay Board Electronic - Buy Hongfa Relay relay Socket relay Board Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic
This link price is only for FY-41F-1 AC/DC24V. if you need other specifications, please feel free to contact us!
GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic
GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic
GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic
GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic
GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic
GEYA FY-41F-1 AC/DC24V Hongfa Relay with Socket 1 Channel Relay Module 12V 24V AC DC Relay Board Electronic
Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to PLC, microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key control systems not being destroyed.
1. 6A Rated Operation Current
2. 1 C/O Contact
3. Compact size only 6.2mm thickness
4. LED Indicator when relay is energizes
5. Protection Circuit
SPECIFICATIONS
Rated output Current
6A
Rated output Voltage
250VAC/30VDC
Dielectric Strength
Between Coil & Contacts:4000V/S Between Open Contacts:2500V/S
Torque
0.5Nm
Suitabe Cable
0.2~2.5m2
Ambient temperature
-20℃～50℃
Power Consumption
0.32W
