Home > Products > Automation Relay > GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC

GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Fy-ngg2r-8c+fuse Channel Relay Module For Plc Controller Spdt Plc Relay 12vdc 24vdc - Buy Plc plc Controller 24v Relay Module Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
·············This link price is only for FY-NGG2R-8C+Fuse············

Relay Modules are designed for current amplification and isolation protection of output loads.Applicable to PLC, microprocessor systems and time relays etc,amplifying the control current of outputs,to protect key control systems not being destroyed.


1. DIN Rail interface relay modules 1/2/4/6/8/10/12/14/16 channels optional;
2. Buit-in OMRON relay G2R-1 certified with VDE,UL,CSA,SEV,SEMKO;
3. Switching current upto 10A at 250VAC or 30VDC;
4. Input connections by screw terminal block.NPN&PNP can be interchangeable,
AC&DC can be in compatible;
5. Relay status indicator LED,surge suppression protection and overvoltage protection are
provided for each relay channel;
6. Relay socket pins are gold plated,makes contact more reliable and stable;
7. DIN Rail mountable for width TS15/28/35
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC

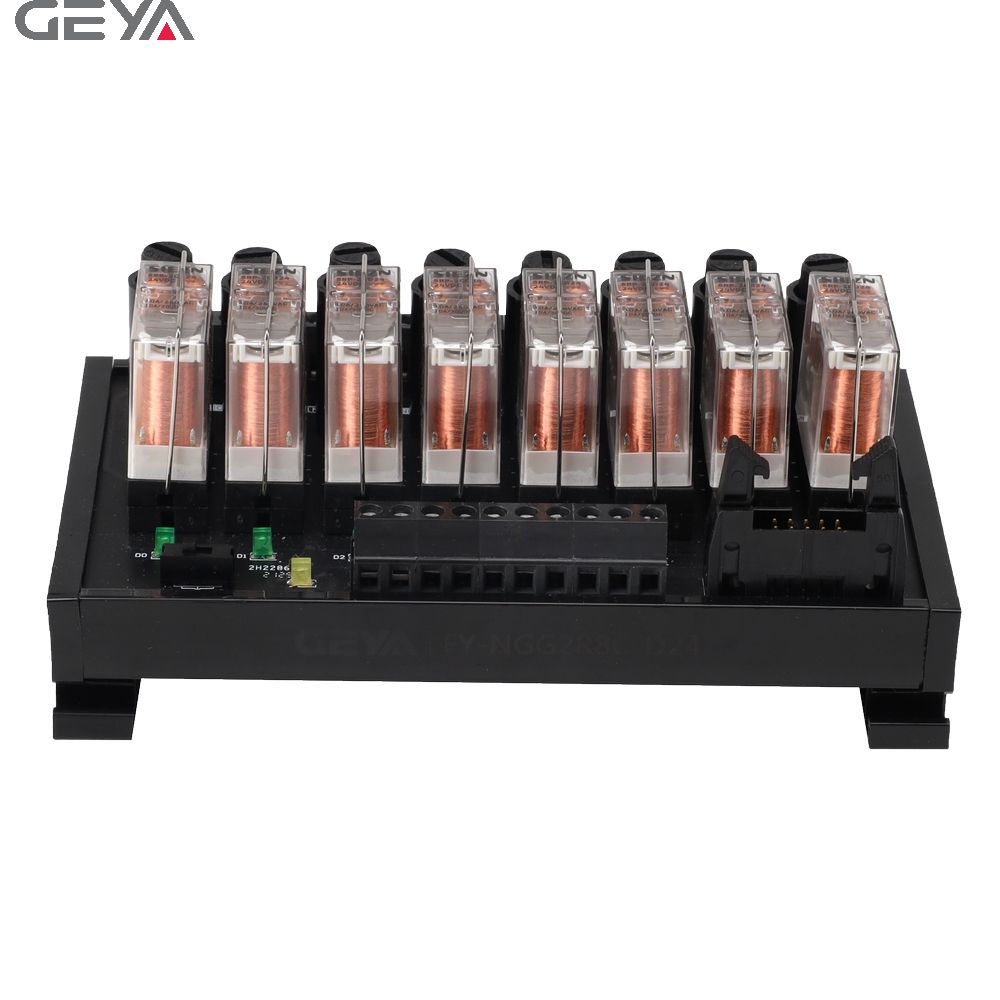

FY-NGG2R
8 Channel Relay Module
Please leave a message which specification needed?
Dimension
130*85*70mm
N.W.
370g
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
Technical Data
Input Operation Voltage
Rated DC ±20%&AC±10%
Relay Mounting
Pluggable
Rated Load Current
8A 250VAC/30VDC
Max Inrush Current
8A
Coil Power
Approx 0.53W
Operate Time(at normal volt.)
less15ms
Release Time(at normal volt.)
less10ms
Input/Output Connections
Screw terminal block
Wire Range
0.2~2.5mm2
Stripping Length
6-7mm
DIN Rail Mountable
15/28/35mm
Power Per Channel

GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
GEYA FY-NGG2R-8C+Fuse Channel Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC
If you want to know more technical information or price, please kindly contact us freely!
