GEYA Good Price British Plastic Electrical Mcb Power Distribution Box 4way for Low Voltage ODM OEM

GEYA Good Price British Plastic Electrical Mcb Power Distribution Box 4way for Low Voltage ODM OEM

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Geya Good Price British Plastic Electrical Mcb Power Distribution Box 4way For Low Voltage Odm Oem - Buy Electrical Distribution Box power Distribution Box distribution Box Electrical Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

DBSF series distribution box (hereinafter referred to as the distribution box) is mainly composed of the casing and modular terminal apparatus, suitbale for ac 50/60Hz, rated voltage of 230v, the load current is less than 100 a single-phase three-wire terminal of the circuit, as to control the power distribution, electrical equipment, at the same time also on line overload, short circuit, leakage protection, can be widely used in
Technical Data
Standard
IEC/EN 61439-3
Insulation voltage Ui
500V
Rated voltage Ue
230/400V
Rated current In
100A
Dielectric test voltage at and ind. Freq.for 1min
2500/1min
Enclosure protection class
Ip30
Work back to the way
3、5、10、14、18

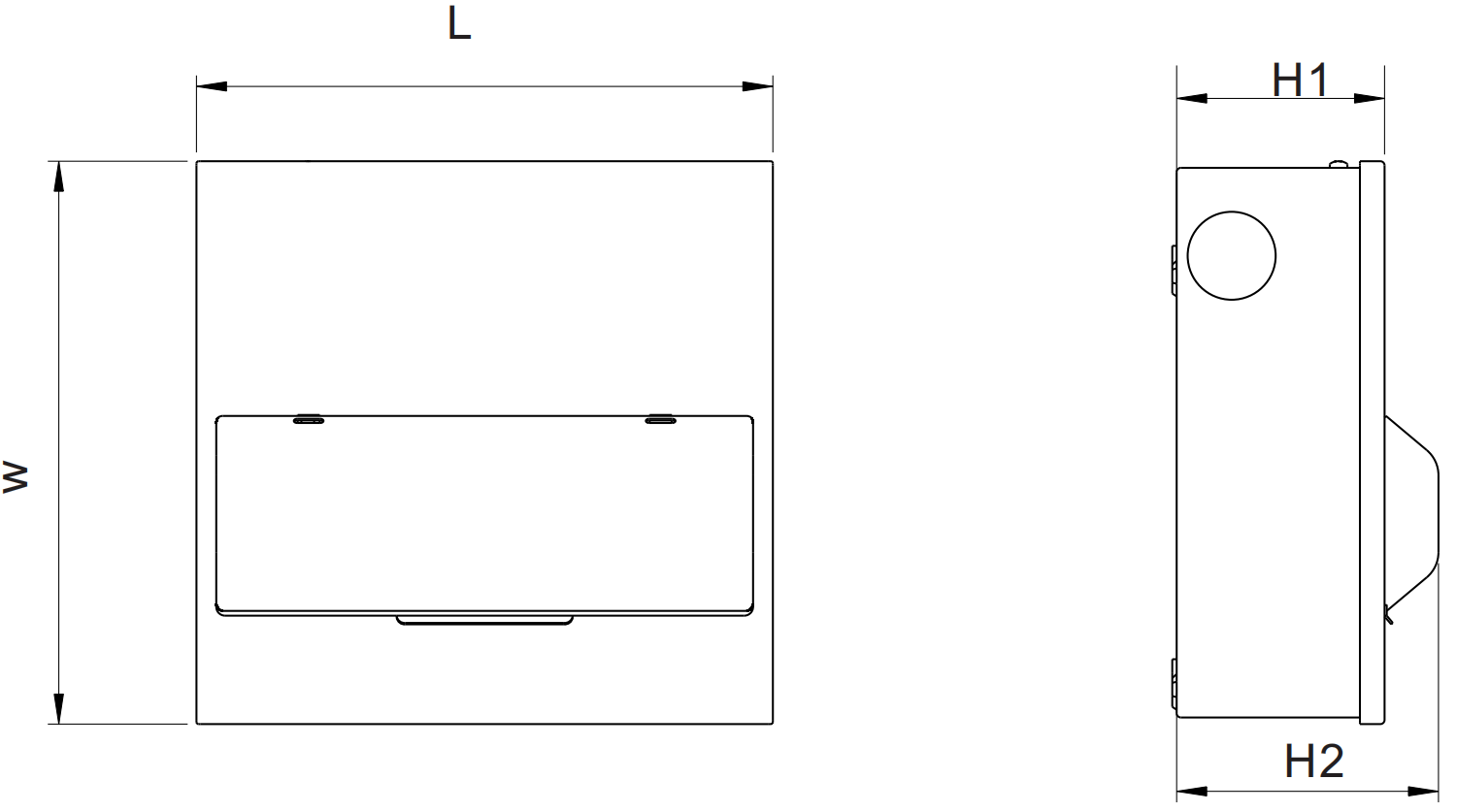

Overall shape and installation dimensions
Model
L
W
H1
H2
DBS-3
102±1.5
186±1.5
94.5±1.5
119±1.5
DBS-5
138±1.5
186±1.5
DBS-10
256±1.5
250±1.5
DBS-14
328±1.5
250±1.5
DBS-18
400±1.5
250±1.5
GEYA Good Price British Plastic Electrical Mcb Power Distribution Box 4way for Low Voltage ODM OEM

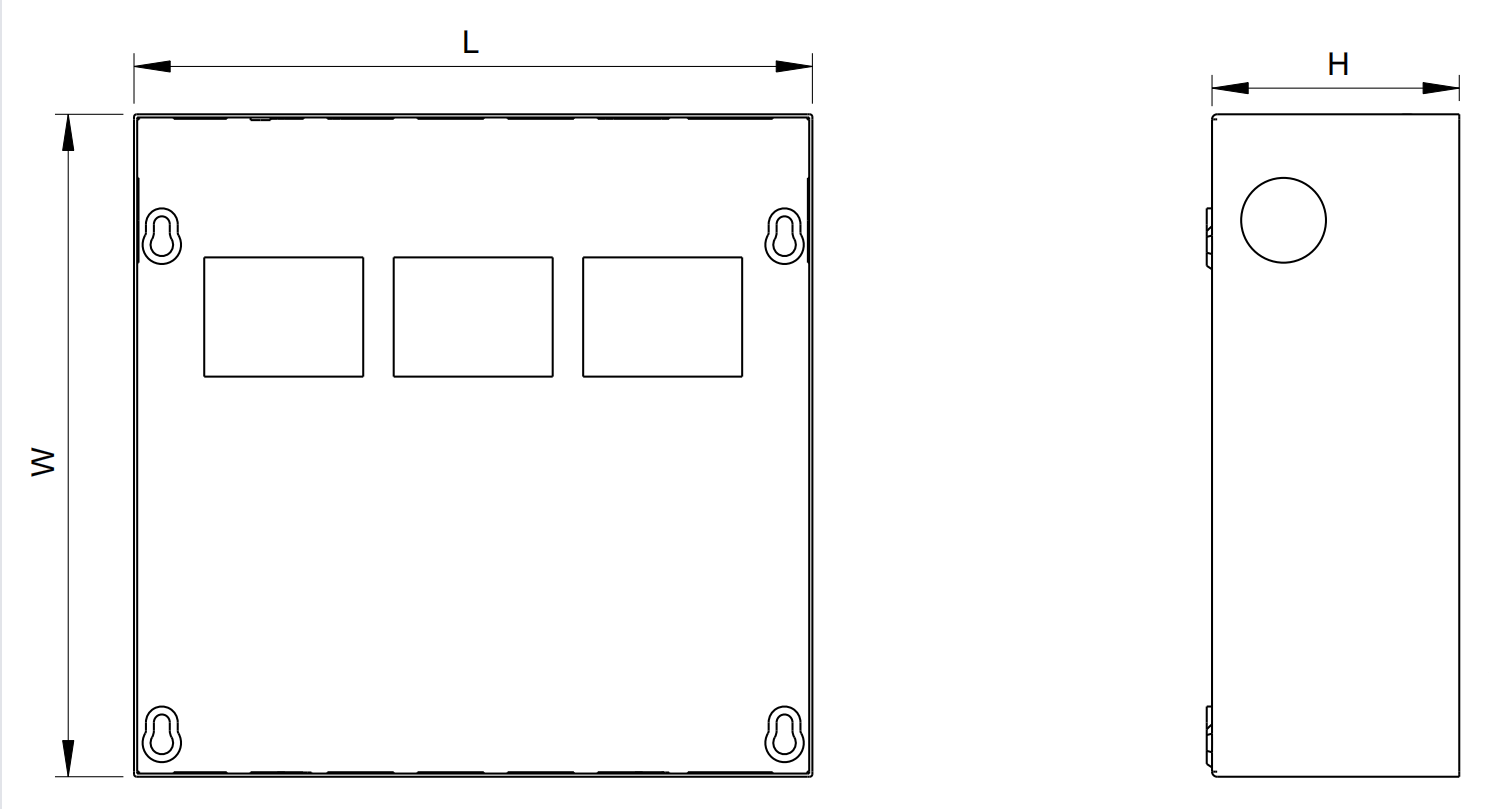

Shape and Dimension Diagram of Base
Model
L
W
H
DBSF-2
52±1.5
130±1.5
61.5±1.5
DBSF-4
98±1.5
182±1.5
93.3±1.5
DBSF-6
134±1.5
182±1.5
DBSF-10
256±1.5
250±1.5
DBSF-14
328±1.5
250±1.5
DBSF-18
400±1.5
250±1.5
GEYA Good Price British Plastic Electrical Mcb Power Distribution Box 4way for Low Voltage ODM OEM
