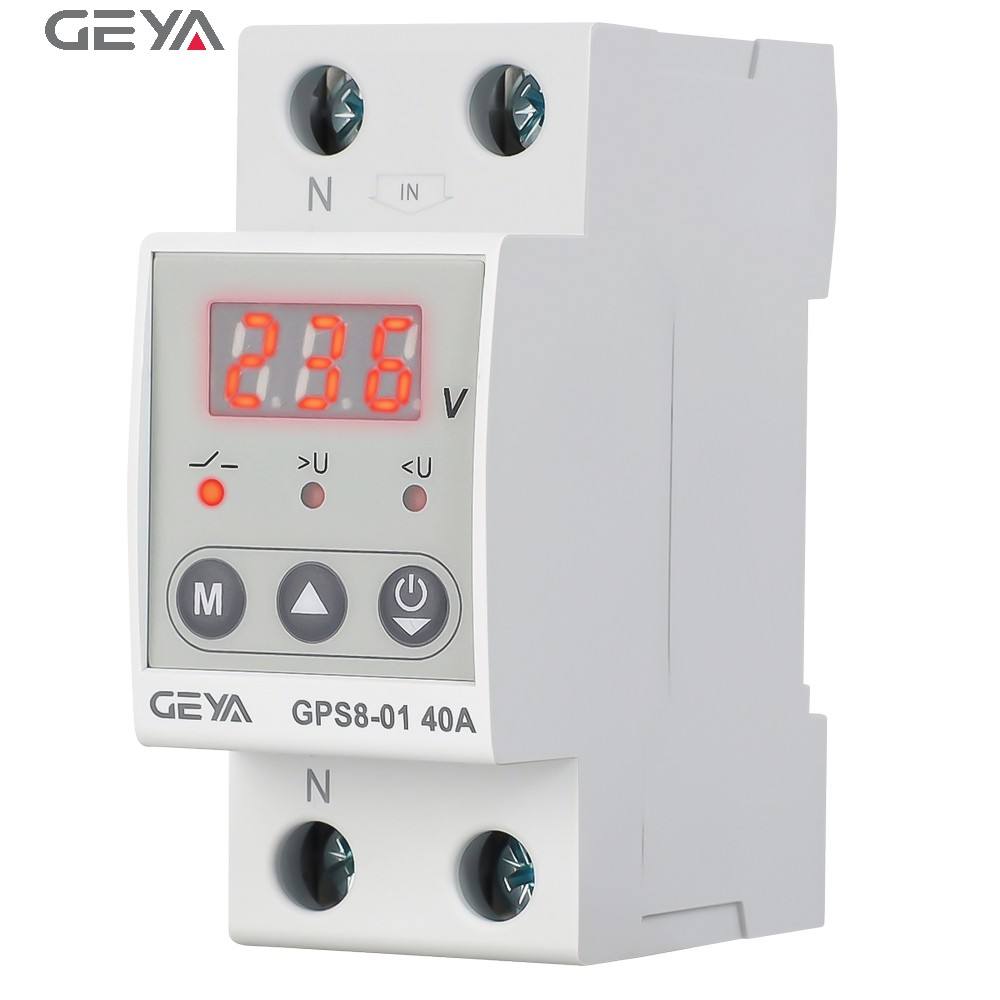

GEYA GPS8-01-40A AC Digital Over Under Voltage Protection Device Adjustable Voltage Protector

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gps8-01-40a Ac Digital Over Under Voltage Protection Device Adjustable Voltage Protector - Buy Electronic Protection Circuit Breakers ac Voltage Protector din Rail Adjustable Over Voltage And Under Voltage Protective Device Protector Relay Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

This link price is only for GPS8-01-40A

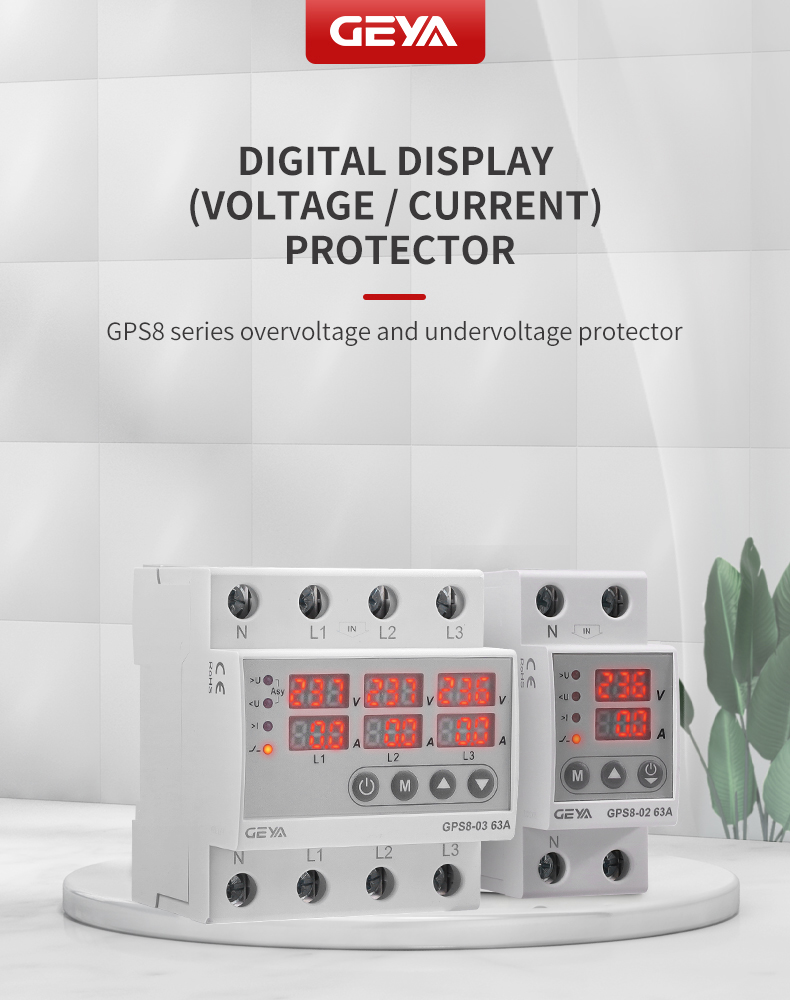

GEYA GPS8-01- 40A/50A/63A Din Rail Over Current Protector Over Voltage Under voltage Protective Device 63A 220VAC

GPS8-01 Overvoltage & Undervoltage Protection
GPS8-02 Over Current, Over voltage, Under Voltage

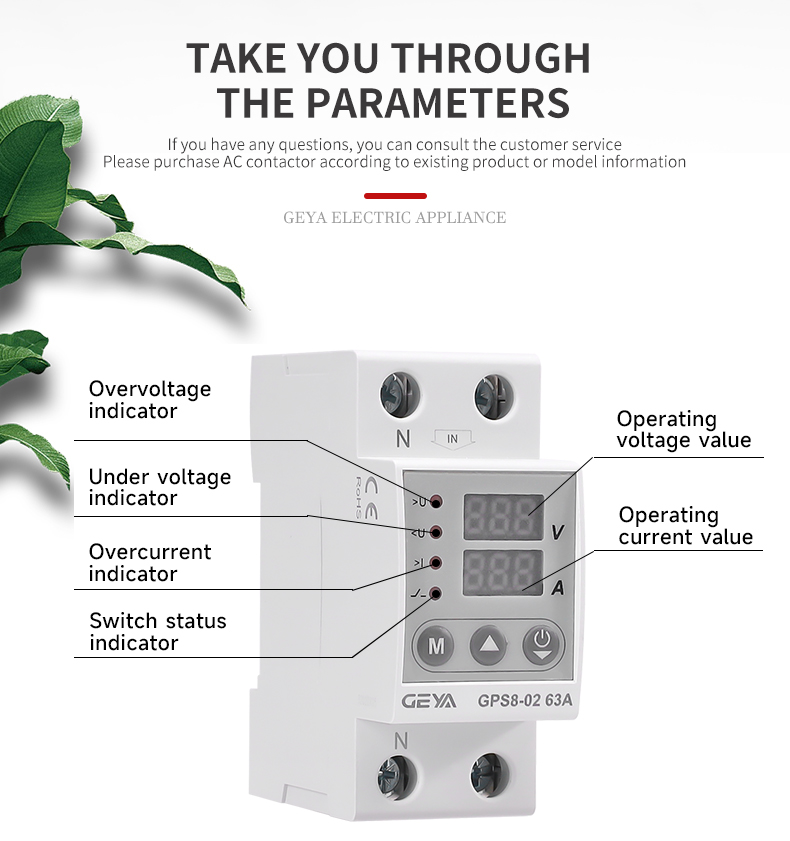

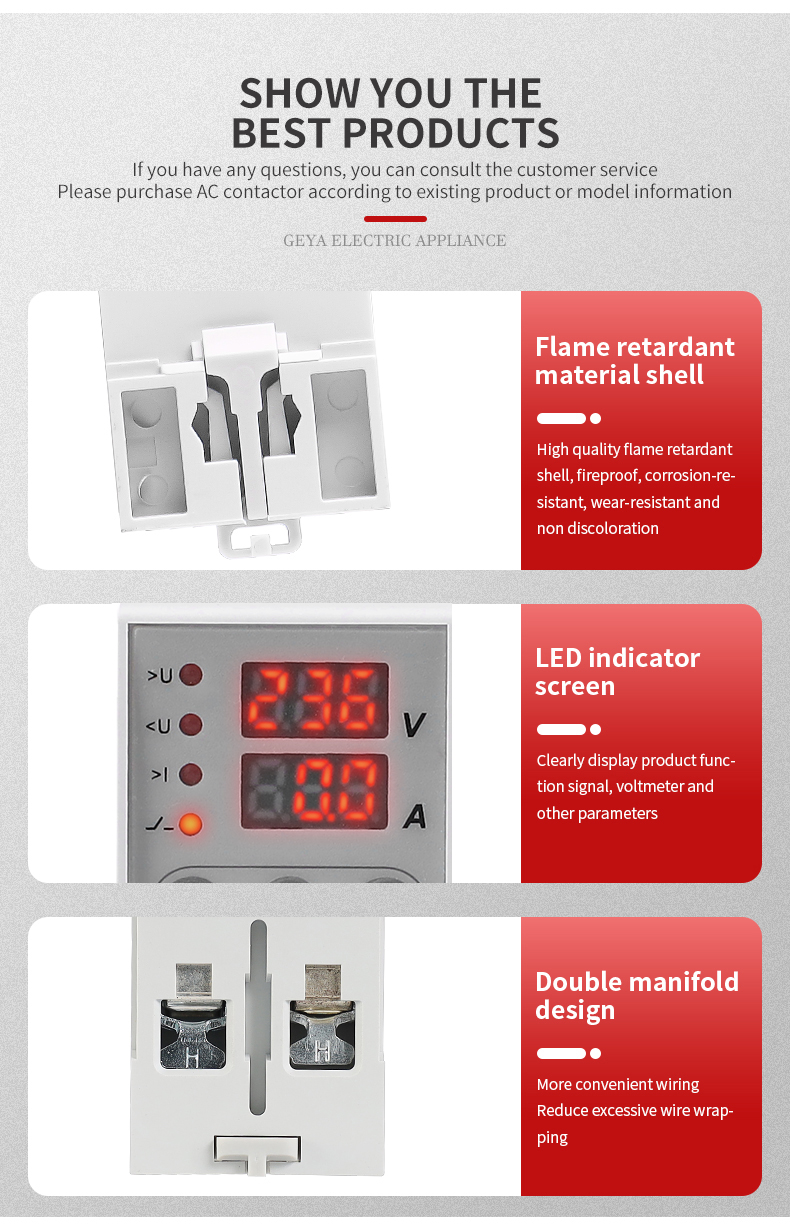

Function Features -Voltage / current monitoring and protection. -Double bus wiring design stronger ability. -Over / under voltage value and over-current value can be set. -Self reset after fault. -Digital display voltage, current value, fault status can be displayed by LED. -1-MODULE,DIN rail mounting.

	GPS8-01	GPS8-02
Function	over and under-voltage	over and under voltage，over current

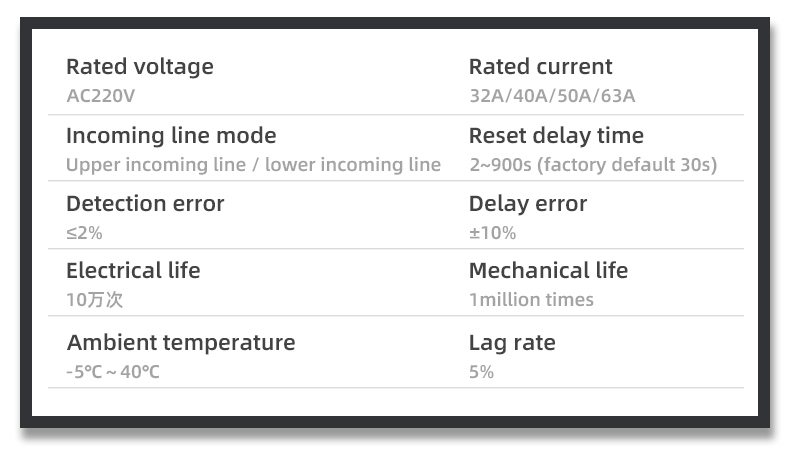

Rated supply voltage	AC220V（L-N)
Rated supply frequency	50/60Hz
Rated operational current	63A(AC1)
Burden	AC max.3VA
voltage display	√	√
current display	×	×
Overvoltage operation value	230V-300V(factory default：275V）
Under voltage operation value	145V-210V(factory default：175V）
Over/Under voltage action delay	0.5s
Overcurrent operation value	————	1A-63A(factory default：63A）
Overcurrent action delay		5s
Hysteresis	0.05（U, I)
Power-up delay	2s
Reset time	2-900s(factory default：30s）
Measurement error	≤1%
Operating temperature	-20℃ to+55℃（-4℉to131℉）
Storage temperature	-35℃ to+75℃（-22℉to158℉）
Mounting/DIN rail	Din rail EN/IEC 60715
Protection degree	IP40 for front panel/IP20 terminals
Operating position	any
Overvoltage category	III
Pollution degree	2

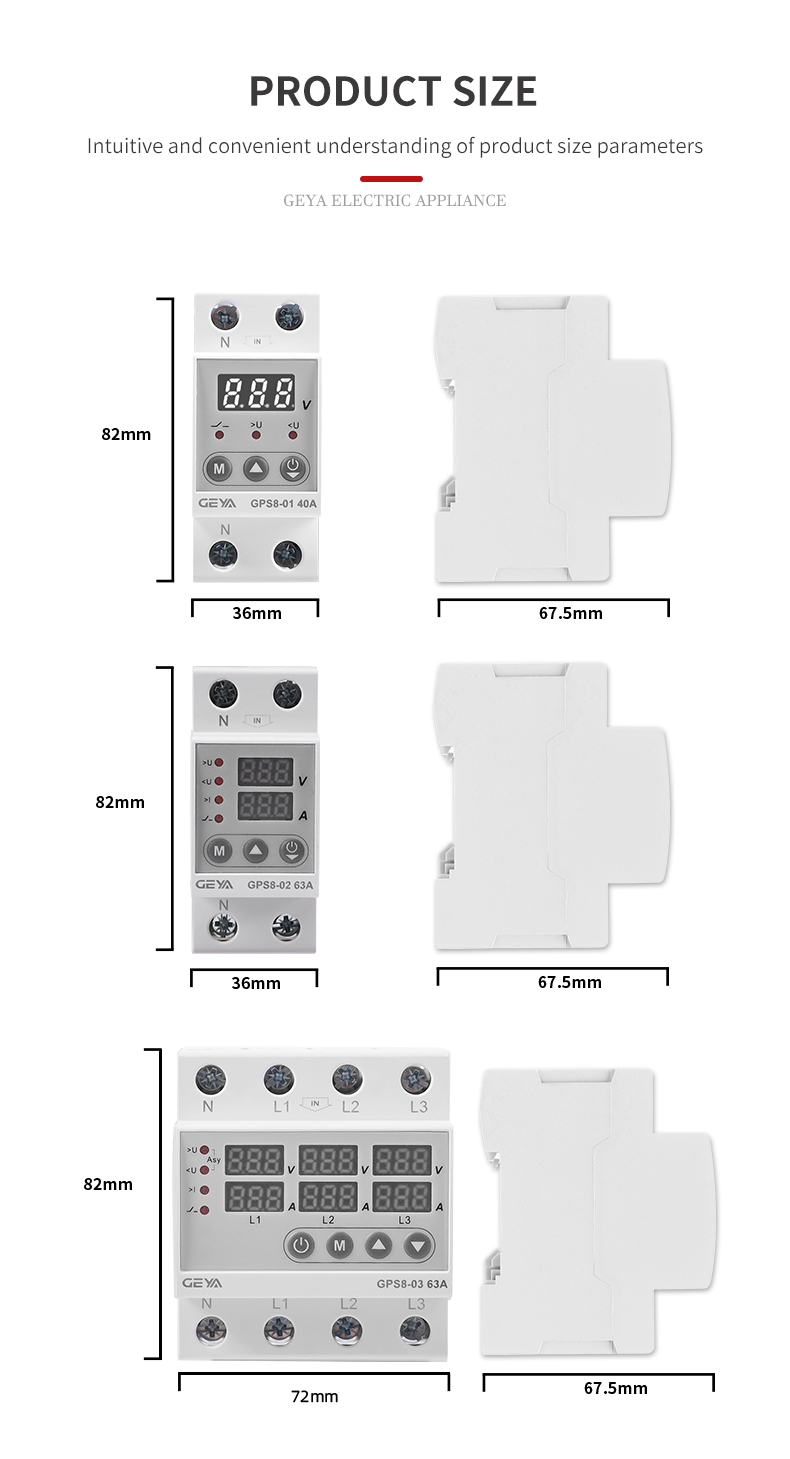

Dimensions	82x36x68mm
Weight	130g	135g

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
