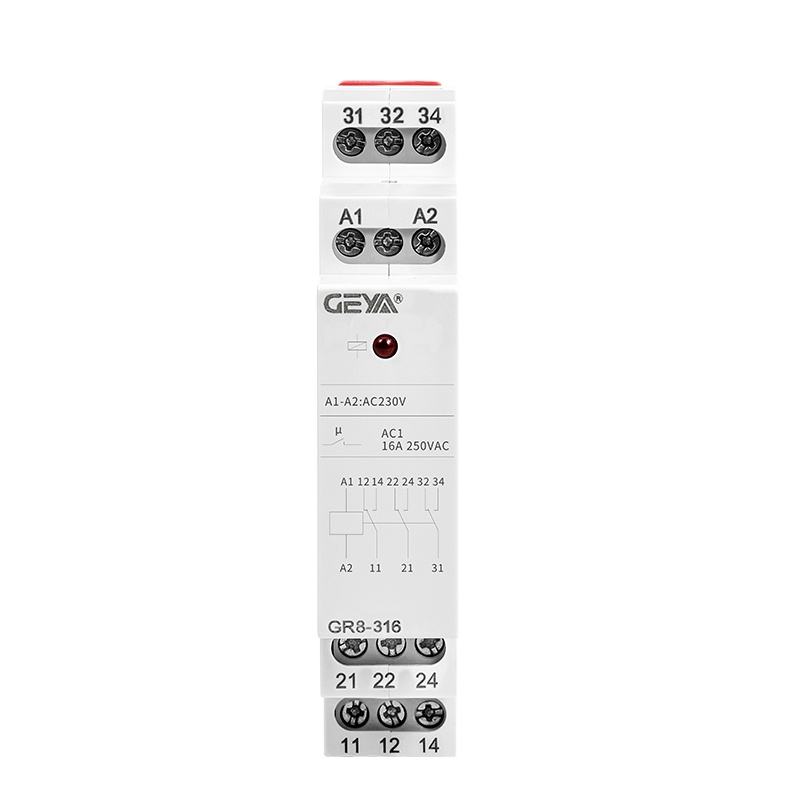

GEYA GR8-316 AC/DC24V 3 SPDT 16A in Stock Intermediate Relay

GEYA GR8-316 AC/DC24V 3 SPDT 16A in Stock Intermediate Relay

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gr8-316 Ac/dc24v 3 Spdt 16a In Stock Intermediate Relay - Buy Ac230v 16a Ac1 Intermediate Relay a1 A2 Ac.max 6va Intermediate Relay ac Dc24v 3 Spdt 16a Intermediate Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

This link price is only for GR8-316 AC/DC24V. if you need other specifications, please feel free to contact us!
GEYA GR8-316 AC/DC24V 3 SPDT 16A in Stock Intermediate Relay
GEYA GR8-316 AC/DC24V 3 SPDT 16A in Stock Intermediate Relay
GEYA GR8-316 AC/DC24V 3 SPDT 16A in Stock Intermediate Relay
GEYA GR8-316 AC/DC24V 3 SPDT 16A in Stock Intermediate Relay
GEYA GR8-316 AC/DC24V 3 SPDT 16A in Stock Intermediate Relay
GR8-116
GR8-208
GR8-308
GR8-316
Supply terminals
A1-A2
A1-A2
Voltage range
AC/DC 12V、24V、48V、110V
AC/DC 12V、24V
Burden
AC.max 12VA/DC.max1.9W
Supply terminals
A1-A2-A3
A1-A2
Voltage range AC230V(A1-A2),AC/DC24V(A1-A3)
AC230V
Burden
AC.max 12VA/DC.max1.9W
AC.max 6VA
Supply voltage tolerance
-15%;+10%
Max.chargeover time
40ms
Output
Number of contact
1×SPDT
2×SPDT
3×SPDT
3×SPDT
Current rating
16A/AC1
8A/AC1
16A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mV
Output indication
Red LED
Mechanical life
1*107
Electrical life(AC1)
1*105
Reset time
max.200ms
Operating temperature
-20℃to+55℃(-4°Fto131°F)
Storage temperature
-35℃to+75℃(-22°Fto 158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 forfront panel/IP20 terminals
Pollution degree
2
Max.cable size(mm²)
solid wire max.1×2.5or2×1.5/withsleeve max.1×2.5(AWG12)
Dimensions
90×18×64mm
Weight
44g/54g
50g/60g
72g/82g
86g/96g
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GR8-116
AC/DC12V
50
58.1
647
4.23
6.94
13.58
AC/DC24V
50
59.0
656
4.29
7.03
13.76
AC/DC48V
50
59.0
656
4.29
7.03
13.76
AC/DC110V
50.9
60.0
666
4.35
7.13
13.96
AC230V/AD24V
54.7
63.2
698
4.54
7.45
14.60
GR8-208
AC/DC12V
57.9
66.3
729
4.72
7.76
15.22
AC/DC24V
57.6
66.1
727
4.71
7.74
15.18
AC/DC48V
57.6
66.4
730
4.73
7.77
15.24
AC/DC110V
59
68.0
746
4.83
7.93
15.56
AC230V/AD24V
62.7
71.1
777
5.01
8.24
16.18
GR8-308
AC/DC12V
69
78.0
846
5.43
8.93
17.56
AC/DC24V
69
78.0
846
5.43
8.93
17.56
AC/DC48V
69
78.0
846
5.43
8.93
17.56
AC/DC110V
70
78.7
853
5.47
9.00
17.70
AC230V/AD24V
74.4
82.8
894
5.71
9.41
18.52
GR8-316
AC/DC12V
89
98.0
1046
6.63
10.93
21.56
AC/DC24V
88.3
97.0
1036
6.57
10.83
21.36
AC230V
94
102.5
1091
6.90
11.38
22.46
