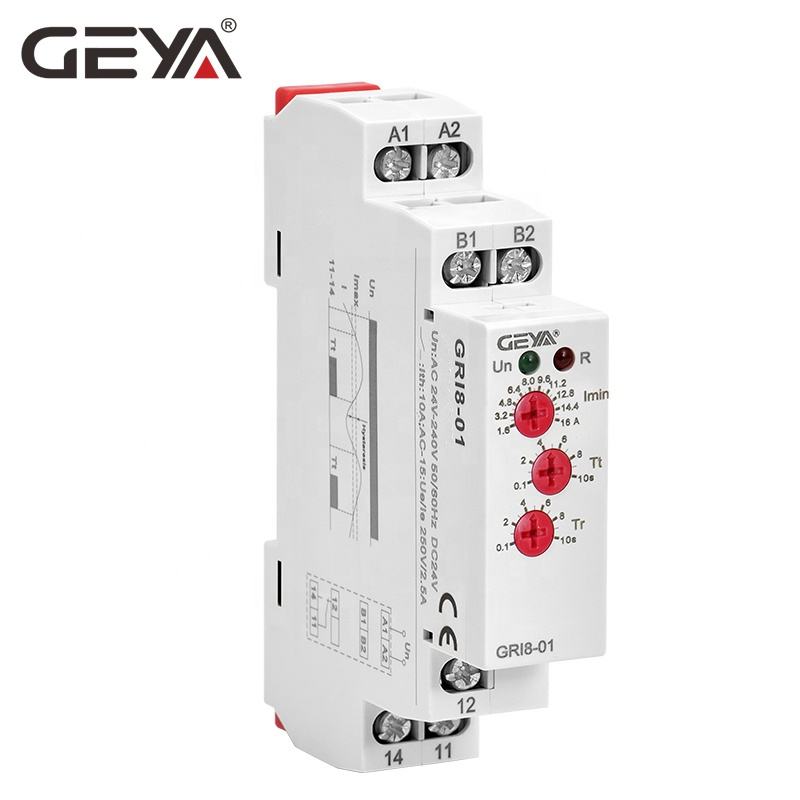

GEYA GRI8-01 Over Current Monitoring Relay Current Range 0.5A-16A W240V or DC24V Current Sensing Relay

GEYA GRI8-01 Over Current Monitoring Relay Current Range 0.5A-16A W240V or DC24V Current Sensing Relay

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gri8-01 Over Current Monitoring Relay Current Range 0.5a-16a W240v Or Dc24v Current Sensing Relay - Buy Over Current Monitoring Relay current Sensing Detecting Delay Relay current Sensing Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

This link price is only for GRI8-01-0.5A-16A. if you need other specifications, please feel free to contact us!
GEYA GRI8-01 Over Current Monitoring Relay Current Range 0.5A-16A W240V or DC24V Current Sensing Relay
GEYA GRI8-01 Over Current Monitoring Relay Current Range 0.5A-16A W240V or DC24V Current Sensing Relay
GEYA GRI8-01 Over Current Monitoring Relay Current Range 0.5A-16A W240V or DC24V Current Sensing Relay
GEYA GRI8-01 Over Current Monitoring Relay Current Range 0.5A-16A W240V or DC24V Current Sensing Relay
GEYA GRI8-01 Over Current Monitoring Relay Current Range 0.5A-16A W240V or DC24V Current Sensing Relay
GEYA GRI8-01 Over Current Monitoring Relay Current Range 0.5A-16A W240V or DC24V Current Sensing Relay
GRI8-01
GRI8-02
GRI8-03
GR18-04
Function
Over current
Under current
Over Under current
Over/Undercurrent
Supply terminals
A1-A2
Rated supply voltage
AC/DC 24V-240V
Rated supply frequency
50/60Hz
Burden
max 25VA
Supply voltage tolerance
-15%;+10%
Current range
0.05A-0.5A
0.1A-1A
0.2A-2A
0.5A-5A
0.08A-8A
1.6A-16A
Current frequency
AC 50Hz
Max.operating current
1A
2A
5A
8A
12A
22A
Current adjustment
potentiometer
Time delay
adjustable 0.1-10 s
Power up delay
adjustable 0.1-10 s
Supply indication
green LED
Setting accuracy
10%
Repeat accuracy
<1 %
Temperature dependancy
<0.1 %/℃
Limit values tolerance
5%(10%for0.05-0.5Arange)
Hysteresis
5%
Temperature coefficient
0.05%/℃,at=20℃(0.05%°F,at=68°F)
Output
1*SPDT
Current rating
10A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
RED LED
Mechanical life
1×107
Electrical life(AC1)
1×105
Operating temperature
-20℃to+55℃(-4°Fto131°F)
Storage temperature
-235℃to+75℃(-22°Fto158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
Ⅲ.
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRI8-01/0.5
AC/DC24-240V
68.3
81.6
882
5.64
9.29
18.28
GRI8-01/1
AC/DC24-240V
68
80.8
874
5.59
9.21
18.12
GRI8-01/2
AC/DC24-240V
68.4
81.5
881
5.64
9.28
18.26
GRI8-01/5
AC/DC24-240V
70
82.4
890
5.69
9.37
18.44
GRI8-01/8
AC/DC24-240V
68.5
81.8
884
5.65
9.31
18.32
GRI8-01/16
AC/DC24-240V
70
82.9
895
5.72
9.42
18.54
GRI8-02/0.5
AC/DC24-240V
68
81.5
881
5.64
9.28
18.26
GRI8-02/1
AC/DC24-240V
68.5
81.9
885
5.66
9.32
18.34
GRI8-02/2
AC/DC24-240V
68.5
81.9
885
5.66
9.32
18.34
GRI8-02/5
AC/DC24-240V
68.5
81.8
884
5.65
9.31
18.32
GRI8-02/8
AC/DC24-240V
68.3
81.9
885
5.66
9.32
18.34
GRI8-02/16
AC/DC24-240V
68.8
82.2
888
5.68
9.35
18.40
GRI8-03/0.5
AC/DC24-240V
68.8
82.0
886
5.67
9.33
18.36
GRI8-03/1
AC/DC24-240V
69.2
82.8
894
5.71
9.41
18.52
GRI8-03/2
AC/DC24-240V
68.6
81.9
885
5.66
9.32
18.34
GRI8-03/5
AC/DC24-240V
68.5
82.0
886
5.67
9.33
18.36
GRI8-03/8
AC/DC24-240V
69
82.5
891
5.70
9.38
18.46
GRI8-03/16
AC/DC24-240V
69.3
82.5
891
5.70
9.38
18.46
GRI8-04/0.5
AC/DC24-240V
68.4
81.9
885
5.66
9.32
18.34
GRI8-04/1
AC/DC24-240V
68.9
82.5
891
5.70
9.38
18.46
GRI8-04/2
AC/DC24-240V
68.7
82.3
889
5.68
9.36
18.42
GRI8-04/5
AC/DC24-240V
68.6
82.2
888
5.68
9.35
18.40
GRI8-04/8
AC/DC24-240V
68.2
81.7
883
5.65
9.30
18.30
GRI8-04/16
AC/DC24-240V
69
82.5
891
5.70
9.38
18.46
