Product Description

··········This link price is only for GRIS8-01 AC85-265V··········

Applications -Isolated Relays are mainly used in fire safety applications that interface with HVAC system, elevator controls and access control doors. It can also be integrated with PLC systems. Function Features -Provides effective 3 way Isolation between supply, input switch & relay output. -Provides isolation of dissimilar circuits. -Enables control of multiple loads when only one relay output is available -DIN rail mounting.

	GRIS8-01	GRIS8-02
Function	Interface/ Control Relay
Supply terminals	A1-A2
Voltage range	AC85-265V 45-65Hz
Burden	2.5VA	3VA
Supply indication	green LED
Isolation voltage
Supply I/P to I/P Switch	4VAC
Supply I/P to O/P Switch	4VAC
I/P Switch to Relay O/P	4VAC
Output	1×SPDT	2×SPDT
Current rating	10A/AC1
Switching voltage	250VAC/24VDC
Min.breaking capacity DC	500mW
Output indication	red LED
Mechanical life	1×10^7
Electrical life(AC1)	1×10^5
Operating temperature	-20℃~+55℃
Storage temperature	-35℃~+75℃
Mounting/DIN rail	Din rail EN/IEC 60715
Protection degree	IP20
Operating position	any
Overvoltage cathegory	III
Pollution degree	2
Max.cable size(mm²)	1×2.5mm^2 或 2×1.5mm^2 0.4N·m

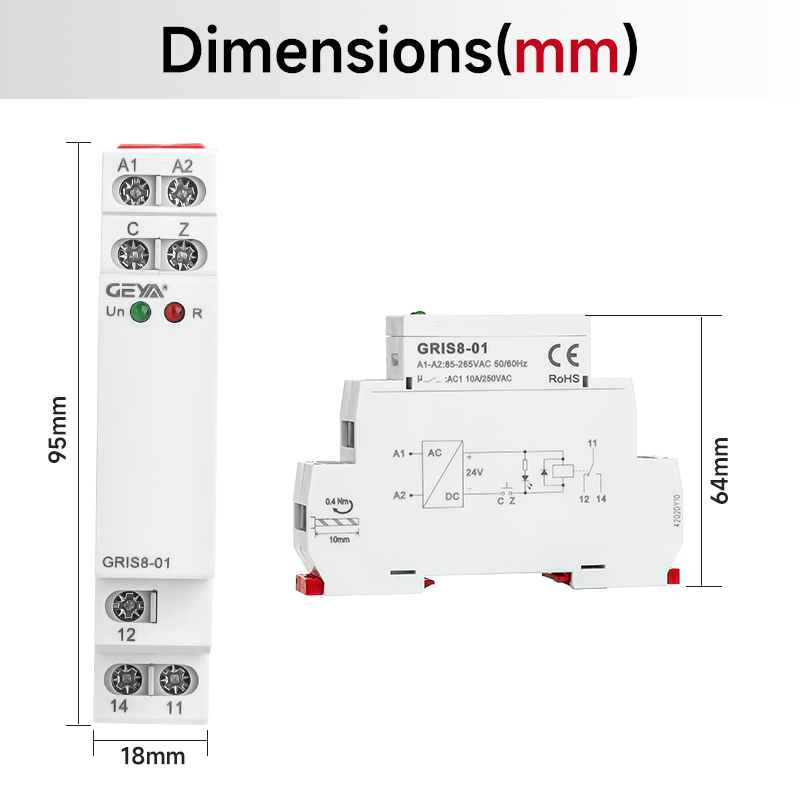

Dimensions	90mm×18mm×64mm
Weight	62g	120g
Standards	GB/T14048.5,IEC60947-5-1

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
