GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control

GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gris8-02 Ac85-265v High-performance Gris8 Isolated Relay With 3-way Isolation For Hvac And Elevator Control - Buy Multiple Load Control Relay circuit Isolation access Control Doors Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

············This link price is obnly for GRIS8-02 AC85-265V··········
Applications -Isolated Relays are mainly used in fire safety applications that interface with HVAC system, elevator controls and access control doors. It can also be integrated with PLC systems. Function Features -Provides effective 3 way Isolation between supply, input switch & relay output. -Provides isolation of dissimilar circuits. -Enables control of multiple loads when only one relay output is available -DIN rail mounting.
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GRIS8-01
GRIS8-02
Function
Interface/ Control Relay
Supply terminals
A1-A2
Voltage range
AC85-265V 45-65Hz
Burden
2.5VA
3VA

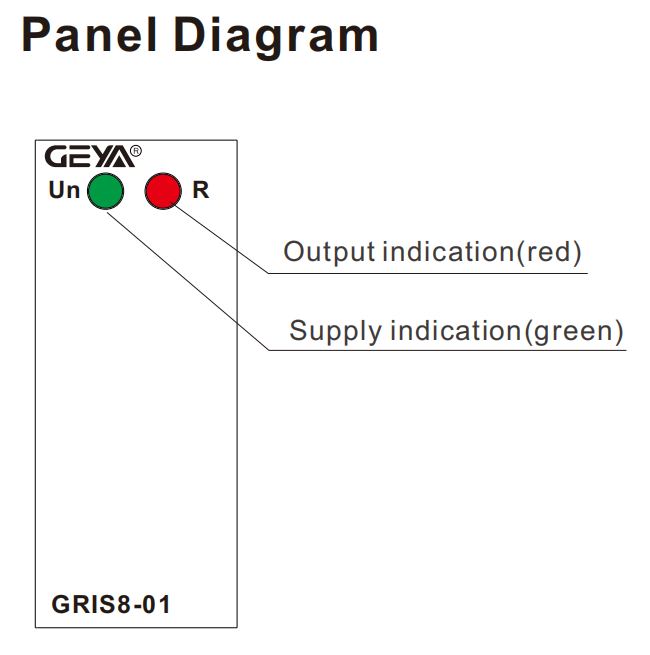

Supply indication
green LED
Isolation voltage
Supply I/P to I/P Switch
4VAC
Supply I/P to O/P Switch
4VAC
I/P Switch to Relay O/P
4VAC
Output
1×SPDT
2×SPDT
Current rating
10A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW

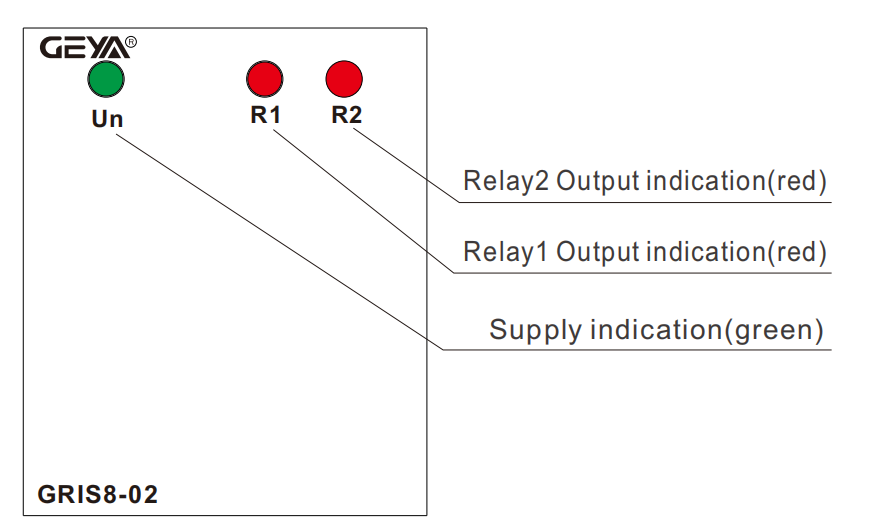

Output indication
red LED
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Operating temperature
-20℃~+55℃
Storage temperature
-35℃~+75℃
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP20
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm²)
1×2.5mm^2 或 2×1.5mm^2 0.4N·m

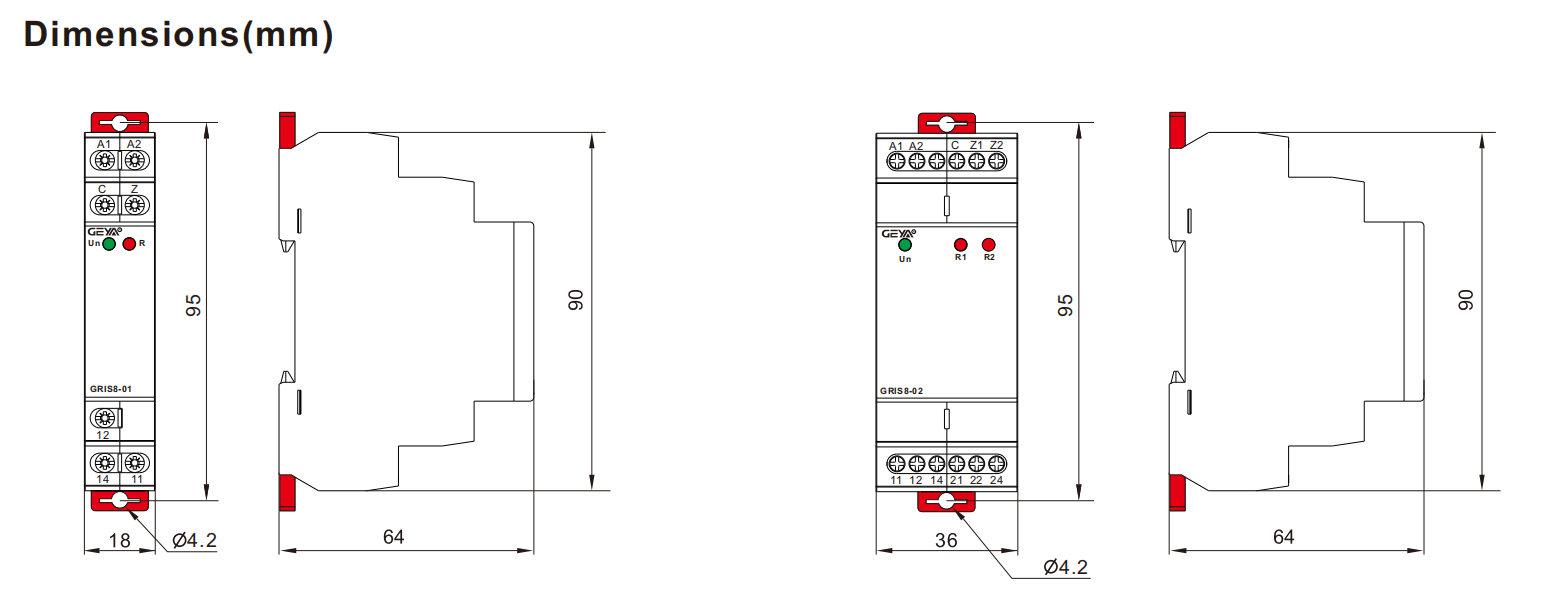

Dimensions
90mm×18mm×64mm
Weight
62g
120g
Standards
GB/T14048.5,IEC60947-5-1
view more >>Recommended by seller

GEYA GRT8-A/B Timer on Off Delay Relay 1SPDT Din Rail Time Relay 16A Single Function AC/DC12V-240V Delay Relay 12V

$5.06-6.54 / piece

20 pieces

GEYA GRV8-05 460V 3 Phase Monitoring Relay Electronic Din Rail Asymmetry Potential Relay

$7.09-8.89 / piece

20 pieces

GEYA GYPV-1038 1A 2A 3A 4A 5A 6A 8A 10A 12A 15A 16A 20A 25A 30A 32A Manufacturer 10x38 Solar Pv Fuse Pv Inline Holder Dc 1000v

$0.52-0.66 / piece

50 pieces

GEYA GYAR9-AC-G AC~220V Ac Dc RS485 Remote Control Automatic Reclosing Auto Recloser Mcb Circuit Breaker RCD

$19.78-24.85 / piece

20 pieces

GEYA GWS9-DW Tuya Mcb Wifi Smart Circuit Breaker with Metering Mcb 1p n 63a Din Rail Circuit Breaker Mini Smart Switch

$14.45-17.86 / piece

20 pieces

GEYA 250A DEKRA&KEMA Certificate Electronic Adjustable Circuit Breaker MCCB 1000 Amp LCD Display Intelligent MCCB

$19.08-23.26 / set

20 sets

GEYA G2R 63A 220V 2P Ats Dinrail Change Over Switch 63a Smart Automat Switch Transfer 63 Amp Ats Dinrail 2 Pole

$10.80 / piece

5 pieces

GEYA G2R 63A 4 Pole Automat Chang Over Switch Ats Switch for Generator Automatic Transfer Switches 25a-250a for Distribution

$12.16 / piece

5 pieces

GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch

$14.49-17.92 / piece

20 pieces

GEYA GYHC MINI Modular Household 16A/20A/25A 2P 2NO 24V AC Contactor for Hotel and Home Use

$2.33-2.80 / piece

20 pieces

GEYA NEW GYM9 DC MCB 63A 250V 6kA Single Phase Miniature Circuit Breaker MCB for Solar PV System Breaker Circuit

$1.54-1.93 / piece

50 pieces

GEYA GTS8-W 2P 63A Electrical Equipment Supplies Electrical WiFi Timer Switch 220v Programmable Digital Timer Switch Us

$7.70-9.94 / piece

20 pieces

GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
VR
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
GEYA GRIS8-02 AC85-265V High-Performance GRIS8 Isolated Relay with 3-Way Isolation for HVAC and Elevator Control
Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
