GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch

GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grl8-02 Din Rail Level Control Switch With Water Level Probe Ac/dc24-240v Switching Dc Control Relay For Low Voltage Switch - Buy Level Control Switch level Control Switching Dc Control Relay For Low Voltage Switch water Level Probe Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··········This link price is only for GRL8-02-AC/DC24V~240V without sensor··········
Applications -Designed for monitoring levels in wells, basins, reservoirs, tanks..….

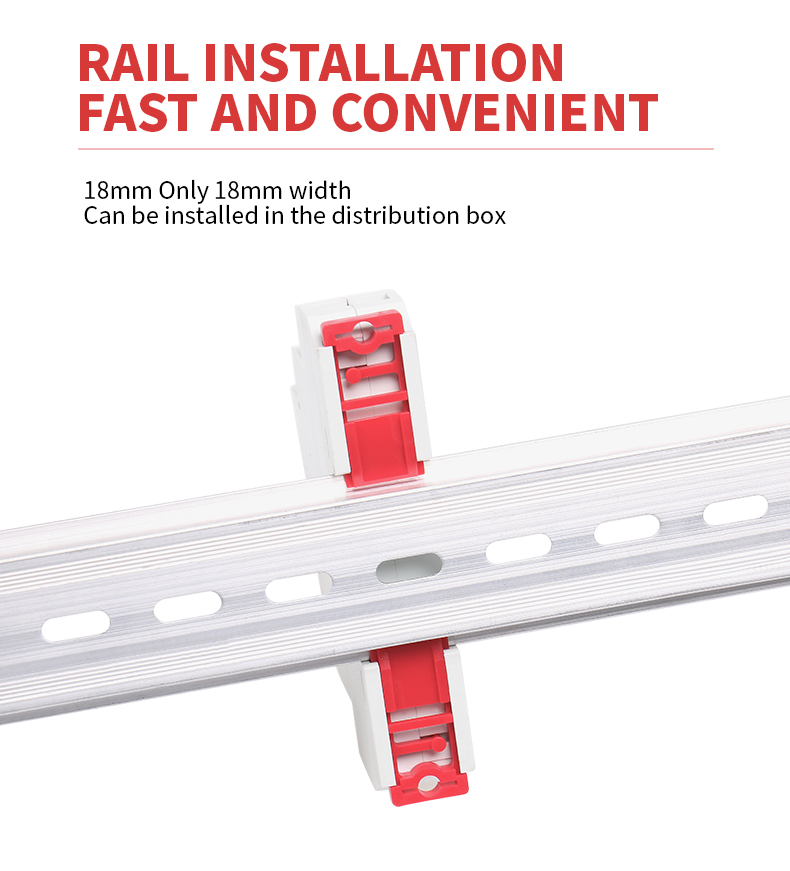

Feature -In one device you can choose the following configurations: -2 level control mode -1 level control mode -Choice of function PUMP UP, PUMP DOWN. -Adjustable time delay on the output (0.1-10s). -Sensitivity adjustable by a potentiometer（5-100kΩ）. -Galvanically separated supply voltage AC/DC 24-240V. -Relay status is indicated by LED. -1-MODULE, DIN rail mounting.
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRL8-01
AC/DC24V~240V
70.1
82.9
895
5.72
9.42
18.54
GRL8-02
72
84.8
914
5.83
9.61
18.92
item
value
Place of Origin
China
Zhejiang
Brand Name
GEYA
Model Number
GRL8-02-AC/DC24V~240V
Theory
MONITORING RELAY
Usage
Level Control
Size
Miniature
Protect Feature
ISOLATION
Contact Load
Low Power
Product name
Water Level Controller
Function
Control PUMP UP & DOWN
Voltage Range
AC/DC24-240V
Frequency
50/60HZ
Rated Current
10A
Output
1SPDT
PLEASE CONTACT US FREELY!
0.15KG/PCS
Certifications
CE CB
Warranty/guarantee
18months
MOQ
50PCS
