Product Description

···········This link price is only for GRL8-03 AC/DC24V~240V···········

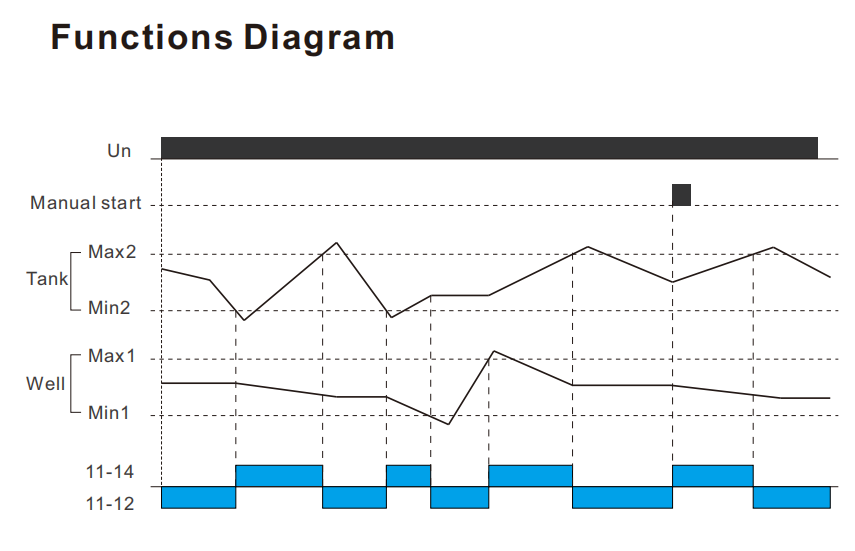

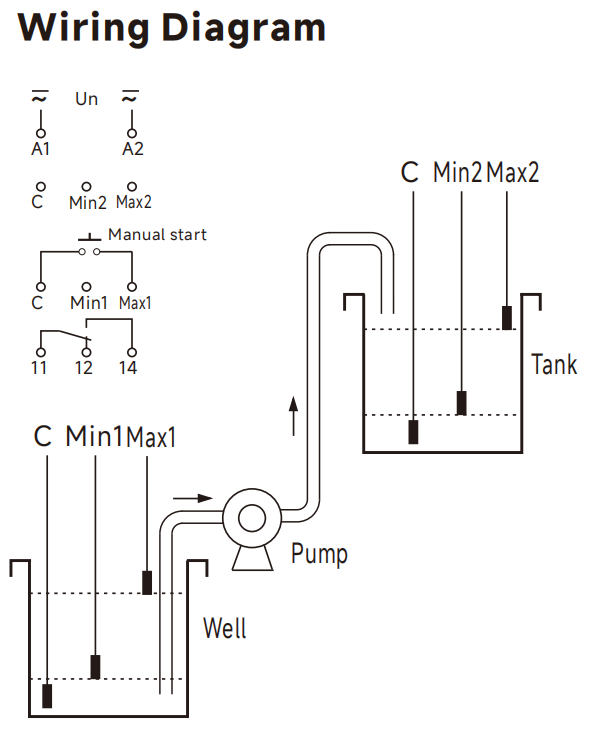

Applications -The function is used to ensure the water supply by means of a water tower and a well. Function Features -It has a button to manually start the water pump, and can also be connected to an external start button. -When the well is short of water, it can prevent the water pump from running empty. -Adjustable time delay on the output (0.1 - 10s). -Sensitivity adjustable by a potentiometer (5-100kΩ). -Galvanically separated supply voltage AC/DC 24-240V. - Relay status is indicated by LED. - 1-MODULE,DIN rail mounting

	GRL8-03
Function	well-tank level contorl
Supply terminals	A1-A2
Voltage range	AC/DC 24-240V(50-60Hz)
Input	max.2VA
Supply voltage tolerance	-15%;+10%
Sensitivity(input resistance)	adjustable in range 5kΩ-100 kΩ
Voltage in electrodes	max.AC5V
Current in probe	AC<0.1mA
Time response	max.400 ms
Max.capacity length	800m(sensitivity 25kQ),200m(sensitivity 100 kQ)
Max.capacity of probe cable	400 nF(sensitivity 25kΩ),100nF(sensitivity 100 kQ)
Supply indication	green LED
Accuracyin setting(mechanical)	≤10%
Output	1×SPDT
Current rating	10A/AC1
Switching voltage	250VAC/24VDC
Min.breaking capacity DC	500mW
Output indication	red LED
Mechanical life	1×107
Electrical life(AC1)	1×10⁵
Reset time	max.200ms
Operating temperature	-20℃ to+55℃
Storage temperature	-35℃ to+75℃
Mounting/DIN rail	Din rail EN/IEC 60715
Protection degree	IP40 for front panel/IP20 terminals
Operating position	any
Overvoltage cathegory	Ⅲ.
Pollution degree	2
Max.cable size(mm²)	solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12)
Tightening torque	0.8Nm
Dimensions	90×18×64mm
Weight	80g
Standards	EN62055-1

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
