Technical parameters | GRM8-01 | GRM8-02 | |
Function | 1 | 2 | |

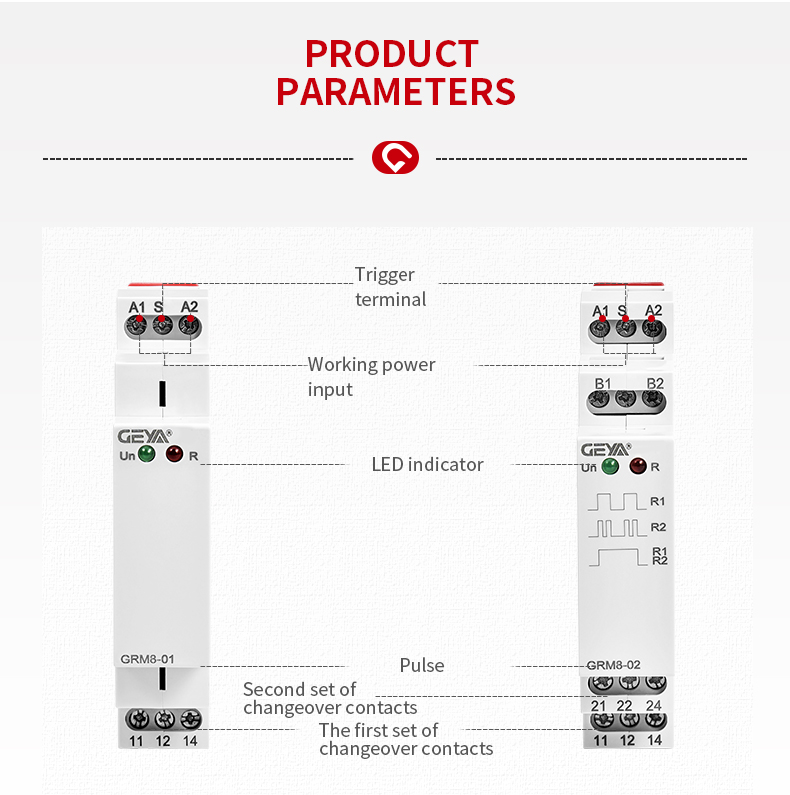

Supply terminals | A1-A2 | ||
Voltage range | AC/DC 12-240V(50-60Hz) | ||
Burden | AC 0.09-3VA/DC 0.05-1.2W | ||
Voltage range | AC 230V(50-60Hz) | ||
Power input | AC max.12VA/1.3W | AC max.12VA/1.9W | |
Supply voltage tolerance | -15%;+10% | ||

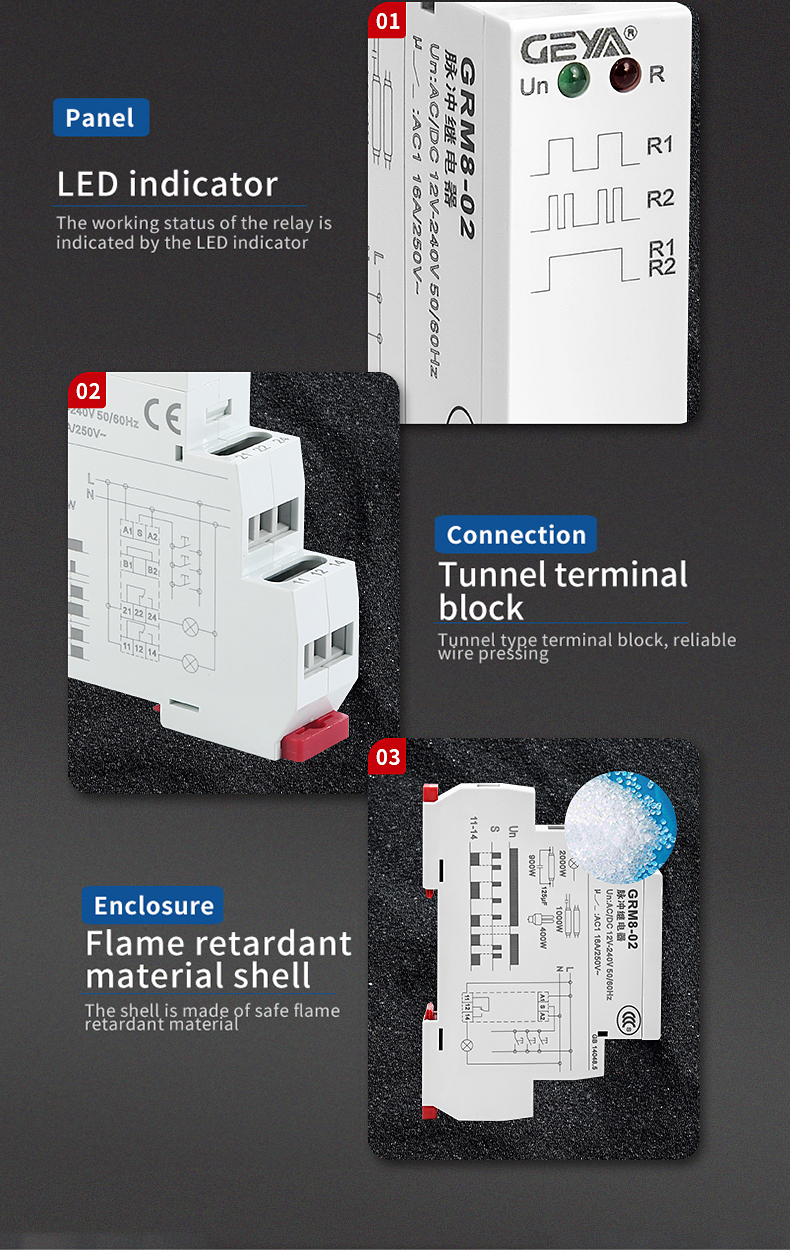

Supply indication | green LED | ||
Control terminals | A1-S | ||
Glow tubes connections | Voltage range: AC 230V Yes(A1-S) | ||
Max.amount of glow lamps | 230V,max.75 pcs(Measured with glow lamp 0.68mA/230V AC) | ||
Impulse length | min.25ms | ||
Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) | ||
Output | 1×SPDT | 2×SPDT | |
Current rating | 16A(AC1) | ||
Switching voltage | 250VAC/24VDC | ||
Min. breaking capacity DC | 500mW | ||
Output indication | red LED | ||
Mechanical life | 1×107 | ||
Electrical life(AC1) | 1×105 | ||
Reset time | max.200ms | ||
Operating temperature | -20℃ to+55℃（-4℉to131℉） | ||
Storage temperature | -35℃ to+75℃（-22℉to158℉） | ||
Mounting/DIN rail | Din rail EN/IEC 60715 | ||
Protection degree | IP40 for front panel/IP20 terminals | ||
Operating position | any | ||
Overvoltage category | III. | ||
Pollution degree | 2 | ||
Max.cable size(mm 2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | ||
Dimensions | 90×18×64mm | ||
Tightening torque | 0.4Nm | ||
Weight | 1×SPDT:W240-60g,A230-59g | ||
2×SPDT:W240-84g,A230-82g | |||
Standards | EN 61810-1 | ||
Item | Specification | N.W. of product (g) | G.W. of product (g) | Medium box weight (g) | G.W. of 60pcs/CTN (kg) | G.W. of 100pcs/CTN(kg)±50g | G.W. of 200pcs/CTN(kg) |
GRM8-01 | AC230 | 59.2 | 72.0 | 786 | 5.07 | 8.33 | 16.36 |
GRM8-01 | AC/DC12V~240V | 60 | 73.0 | 796 | 5.13 | 8.43 | 16.56 |
GRM8-02 | AC230 | 82.5 | 95.3 | 1019 | 6.46 | 10.66 | 21.02 |
GRM8-02 | AC/DC12V~240V | 84.2 | 97.0 | 1036 | 6.57 | 10.83 | 21.36 |
