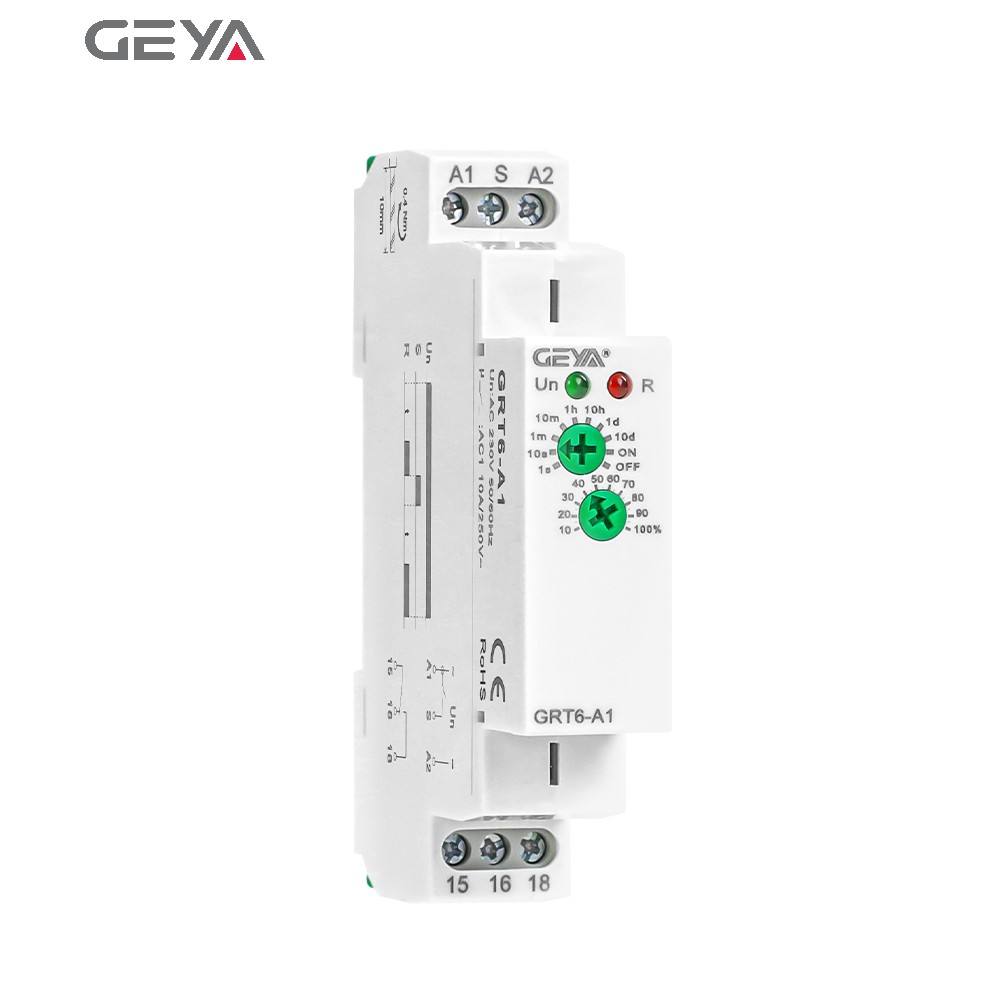

GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer

GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt6-a/b On Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive Off Delay Timer - Buy Timer Relay Switch On Delay And Off Delay Timer on Off Timer Relay 24v Timer Relay Off Delay Timer Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

···········This link price is only for GRT6-A1,B1 AC/DC24V~240V···········
GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer
GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer
GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer
GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer
GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer
GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer
GEYA GRT6-A/B on Delay Timer Relay 220v Single-function Time Delay Relay 24v Automotive off Delay Timer
Applications -Suitable for applications where function and time requirements are know. -Time switch , possible to be used for pump decay time after switching heating off , switching of fans.
Function Features -Single-function relay with possibility of time setting by a potentiometer. -Choice of 2 functions: A:Delay ON B:Delay OFF -Time scale 0.1 s - 10 days divided into 10 ranges.. - Relay status is indicated by LED. - 1-MODULE,DIN rail mounting.
If you want to know more technical information or price, please kindly contact us freely!
Technical parameters
GRT6-A1/B1
GRT6-A2/B2
GRT6-At/Bt
Function
A:delay ON;B:delay OFF
Supply terminals
A1-A2
Voltage range
AC/DC24-240V(50-60Hz)
Burden
AC 0.09-3VA/DC 0.05-1.7W
Voltage range
AC 230V(50-60Hz)
Power input
AC max.6VA/1.3W
AC max.6VA/1.9W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
0.1s-10days,ON,OFF
Time setting
potentionmete
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Temperature coecient
0.05%/℃,at=20℃(0.05%F,at=68F)
Output
1×SPDT
2×SPDT
1xSPDT(del)+1xSPDT(ins)
Currentrating
10A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LFD
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Reset time
max.200ms
Operating temperature
-20℃ to +55℃(-4F to 131F)
Storage temperature
35℃ to+75℃(-22F to 158F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm)
solid wire max.1x2.5or2×1.5/with sleeve max.1x2.5(AWG 12)
Tightening torque
0.4Nm
Dimensions
90×18x64mm
Weight
S240-61g,A230-61g S240-81g,A230-80g
Standards
EN 61812-1,IEC60947-5-1
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT6-A1/B1
S240
52
64.8
714
4.63
7.61
14.92
GRT6-M1
S240
53
65.7
723
4.69
7.70
15.10
GRT6-S1
S240
53.2
66.0
726
4.71
7.73
15.16
