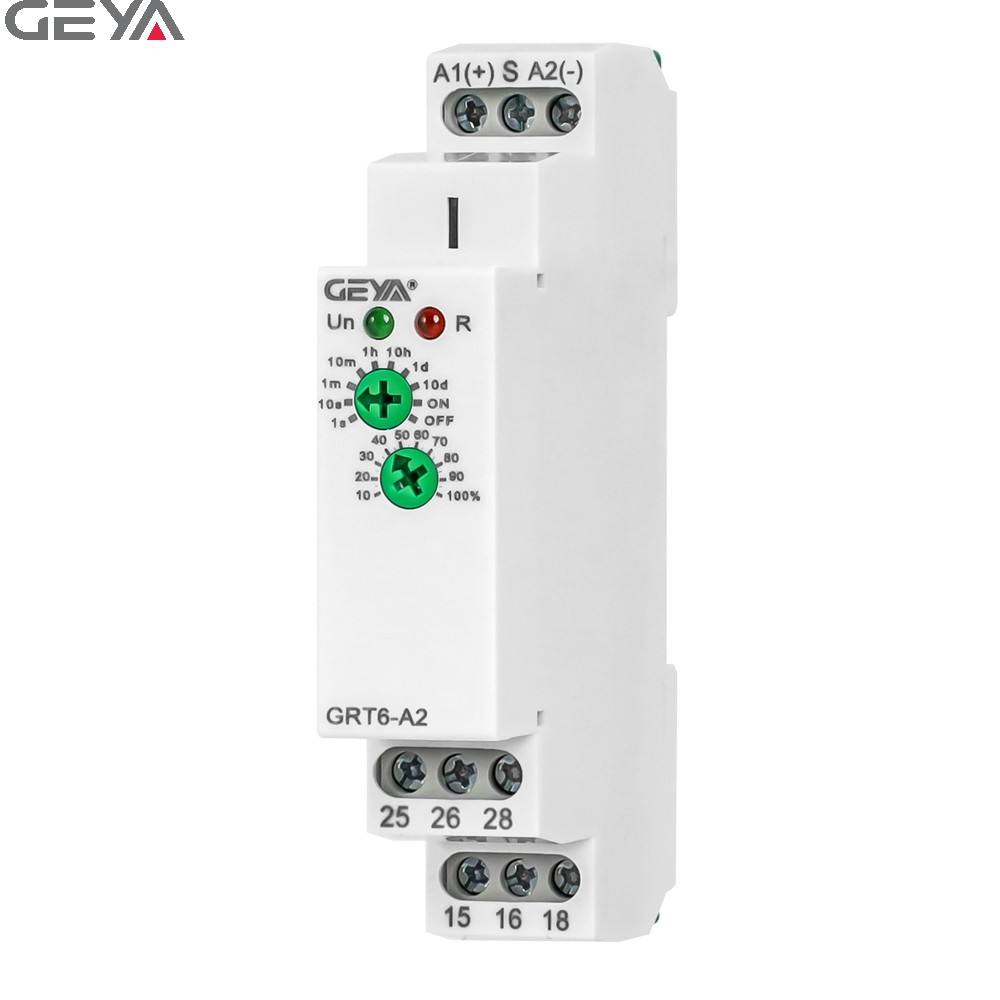

GEYA GRT6-A2 AC/DC24V~240V 10A Time Delay Relay 24 Volt Circuit 220v Industrial Automation and Control Time Delay Relay

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt6-a2 Ac/dc24v~240v 10a Time Delay Relay 24 Volt Circuit 220v Industrial Automation And Control Time Delay Relay - Buy Relay Independent Timing Cycle time Relay 1-10 Min Cut Off The Power And Delay Th time Relay Din Rail T1 T2 Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

··············This link price is only for GRT6-A2 AC/DC24V~240V 10A···········

Applications -Suitable for applications where function and time requirements are know. -Time switch , possible to be used for pump decay time after switching heating off , switching of fans. Function Features -Single-function relay with possibility of time setting by a potentiometer. -Choice of 2 functions: A:Delay ON B:Delay OFF -Time scale 0.1 s - 10 days divided into 10 ranges.. - Relay status is indicated by LED. - 1-MODULE,DIN rail mounting.

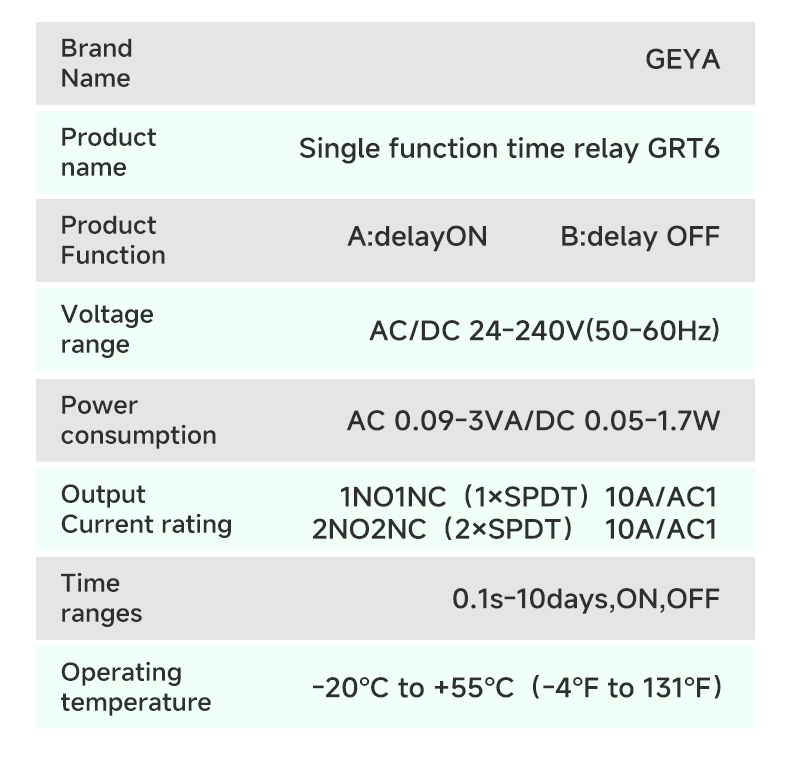

Technical parameters	GRT6-A1/B1	GRT6-A2/B2	GRT6-At/Bt

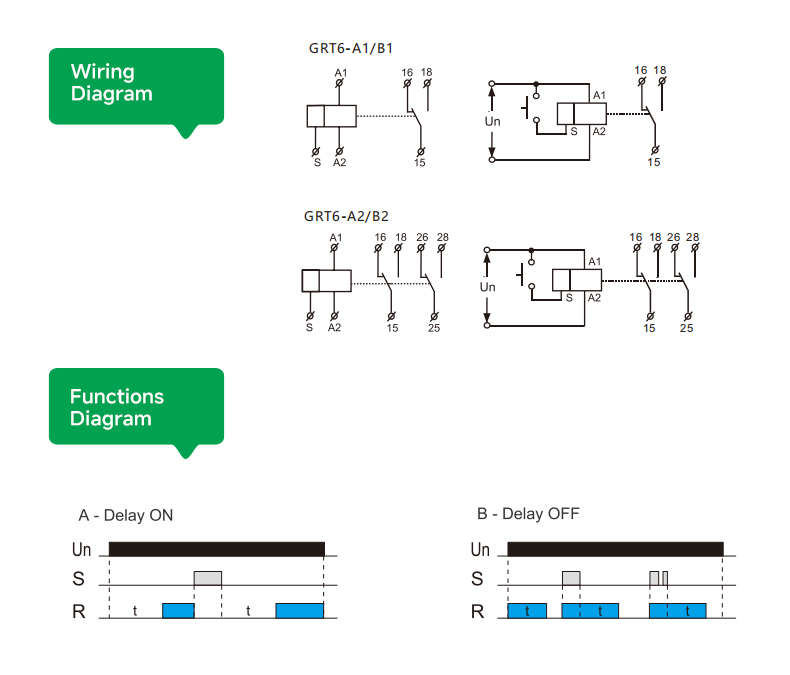

Function	A:delay ON;B:delay OFF
Supply terminals	A1-A2
Voltage range	AC/DC24-240V(50-60Hz)
Burden	AC 0.09-3VA/DC 0.05-1.7W
Voltage range	AC 230V(50-60Hz)
Power input	AC max.6VA/1.3W	AC max.6VA/1.9W
Supply voltage tolerance	-15%;+10%
Supply indication	green LED
Time ranges	0.1s-10days,ON,OFF
Time setting	potentionmete
Time deviation	10%-mechanical setting
Repeat accuracy	0.2%-set value stability
Temperature coecient	0.05%/℃,at=20℃(0.05%F,at=68F)
Output	1×SPDT	2×SPDT	1xSPDT(del)+1xSPDT(ins)
Currentrating	10A/AC1
Switching voltage	250VAC/24VDC
Min.breaking capacity DC	500mW
Output indication	red LFD
Mechanical life	1×10^7
Electrical life(AC1)	1×10^5
Reset time	max.200ms
Operating temperature	-20℃ to +55℃(-4F to 131F)
Storage temperature	35℃ to+75℃(-22F to 158F)
Mounting/DIN rail	Din rail EN/IEC 60715
Protection degree	IP40 for front panel/IP20 terminals
Operating position	any
Overvoltage cathegory	III
Pollution degree	2
Max.cable size(mm)	solid wire max.1x2.5or2×1.5/with sleeve max.1x2.5(AWG 12)
Tightening torque	0.4Nm

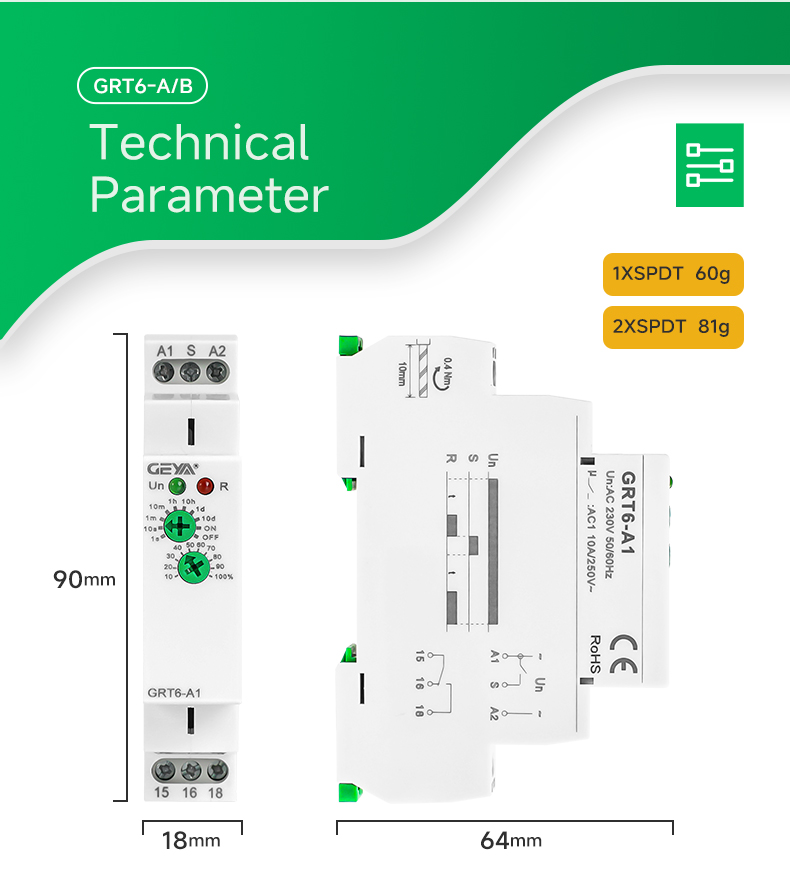

Dimensions	90×18x64mm
Weight	S240-61g,A230-61g S240-81g,A230-80g
Standards	EN 61812-1,IEC60947-5-1

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
