Home > Products > Automation Relay > GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO

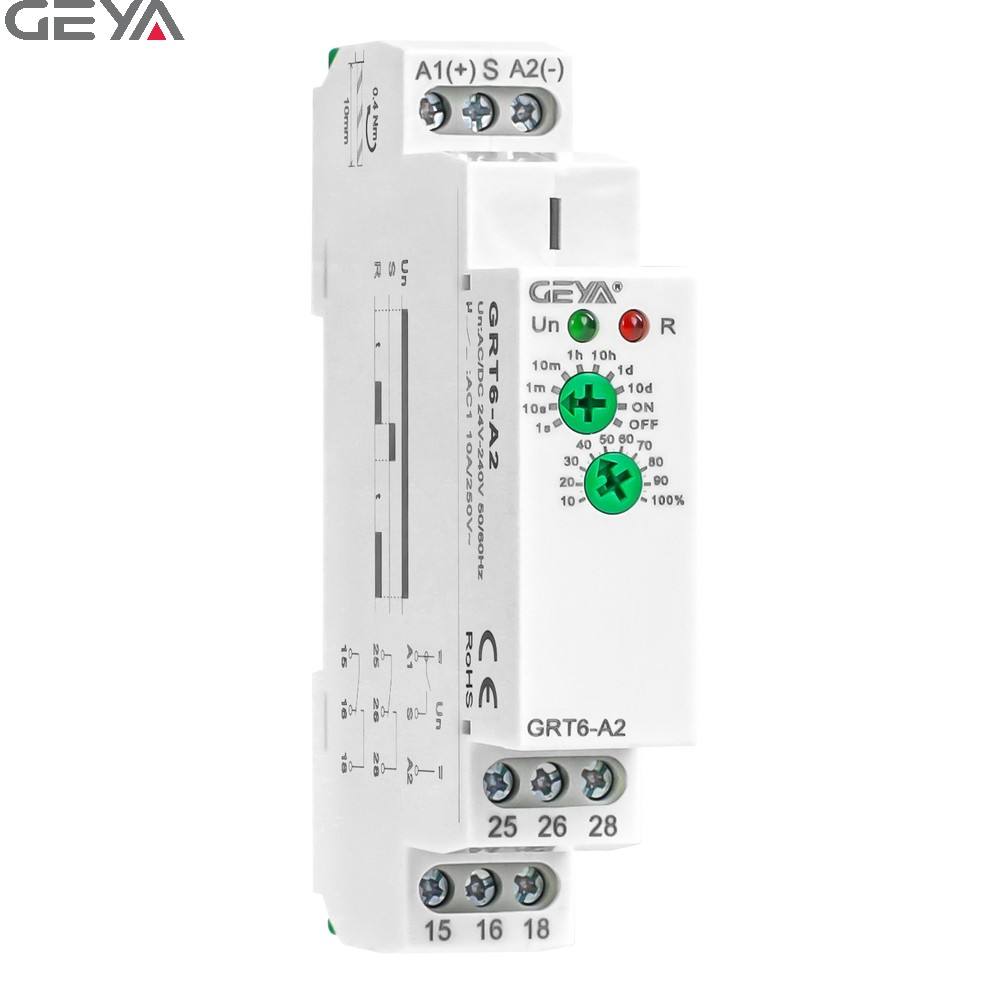

GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO

GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt6-a2 Weekly 220v 24v Timer Relay Time Delay Din Rail On Delay Off Delay Timer 12v Timer Relay Switch 2no - Buy Dual Input Ac Timer Relay Switch dual Timer Relay electronic Timer Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··············This link price is only for GRT6-A2 AC/DC24V~240V 10A···········
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
Applications -Suitable for applications where function and time requirements are know. -Time switch , possible to be used for pump decay time after switching heating off , switching of fans. Function Features -Single-function relay with possibility of time setting by a potentiometer. -Choice of 2 functions: A:Delay ON B:Delay OFF -Time scale 0.1 s - 10 days divided into 10 ranges.. - Relay status is indicated by LED. - 1-MODULE,DIN rail mounting.
Technical parameters
GRT6-A1/B1
GRT6-A2/B2
GRT6-At/Bt
Function
A:delay ON;B:delay OFF
Supply terminals
A1-A2
Voltage range
AC/DC24-240V(50-60Hz)
Burden
AC 0.09-3VA/DC 0.05-1.7W
Voltage range
AC 230V(50-60Hz)
Power input
AC max.6VA/1.3W
AC max.6VA/1.9W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
0.1s-10days,ON,OFF
Time setting
potentionmete
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Temperature coecient
0.05%/℃,at=20℃(0.05%F,at=68F)
Output
1×SPDT
2×SPDT
1xSPDT(del)+1xSPDT(ins)
Currentrating
10A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LFD
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Reset time
max.200ms
Operating temperature
-20℃ to +55℃(-4F to 131F)
Storage temperature
35℃ to+75℃(-22F to 158F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm)
solid wire max.1x2.5or2×1.5/with sleeve max.1x2.5(AWG 12)
Tightening torque
0.4Nm
Dimensions
90×18x64mm
Weight
S240-61g,A230-61g S240-81g,A230-80g
Standards
EN 61812-1,IEC60947-5-1
view more >>Recommended by seller

GEYA G2R 50A 2p Ats Dual Ats Automatic Transfer Switch Changeover Switches Din Rail Type to Generator Ats 63A Switch 230V AC

$10.80 / piece

5 pieces

GEYA G2R 63A 4 Pole Automat Chang Over Switch Ats Switch for Generator Automatic Transfer Switches 25a-250a for Distribution

$12.16 / piece

5 pieces

GEYA GRL8-02 Level Control System for Water Level Controller Automatic Pump up and Pump Down

$11.61-14.59 / piece

20 pieces

GEYA GRT8-M1 Multi FunctionTimer Relay Modular Time Delay Relay Timer Relay 24V 220 Volt Time Timer

$6.03-7.78 / piece

20 pieces

GEYA GYM9-125 2P 63-125A Mini Circuit Breaker Wholesale 63A 80A 100A 125A DC MCB 400V for Solar PV System Home Use

$4.99-6.27 / piece

50 pieces

GEYA GYL9 a or AC Type ID RCCB Residual Current Device Circuit Breaker Delay Type ELCB

$7.16-8.99 / piece

50 pieces

GEYA GYHC-16 2P 1NO1NC 220V 16A Household Modular Contactor AC Din Rail Type

$2.17-2.69 / piece

20 pieces

GEYA FY-41F-1 AC/DC12V Single Channel Relay Module 12V or 24V AC DC Relay Board Slim Dinrail Relay

$2.11-2.62 / piece

20 pieces

GEYA GYHO8-63 1P Mcb Changeover Switch SP DP TP FP CHANGEOVER OTHER SWITCH SF Type 400VAC

$0.87-1.09 / piece

10 pieces

GEYA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A 220V 400V AC Mini Circuit Breaker

$1.28-1.62 / piece

50 pieces

GEYA THC-15A AHC-15A Programmable Timer Digital Electrical Time Switches Electrical Weekly Timer Switch 12V 24V 48V 110V 220V

$5.26-6.31 / piece

20 pieces

GEYA Afci AFDD Arc Fault Circuit Breaker Arc Fault Protection Preventing Protection Fire Prevention Unit

$46.67-56.01 / piece

50 pieces

GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
VR
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
GEYA GRT6-A2 Weekly 220v 24v Timer Relay Time Delay Din Rail on Delay off Delay Timer 12v Timer Relay Switch 2NO
Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
