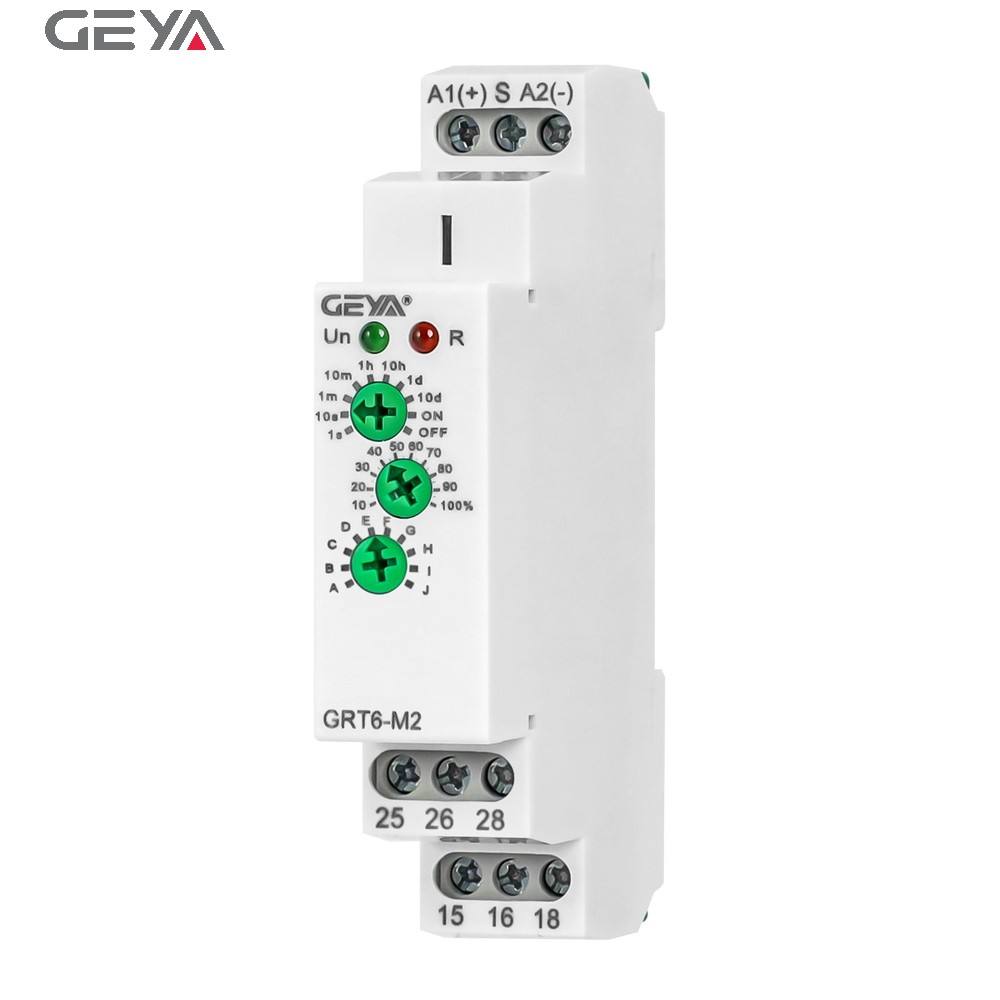

Technical parameters | GRT6-M1 | GRT6-M2 | |

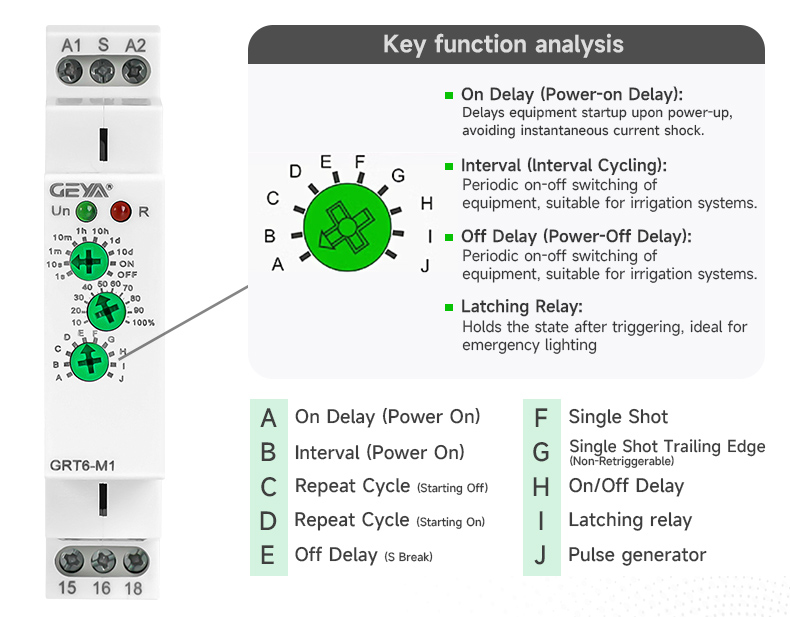

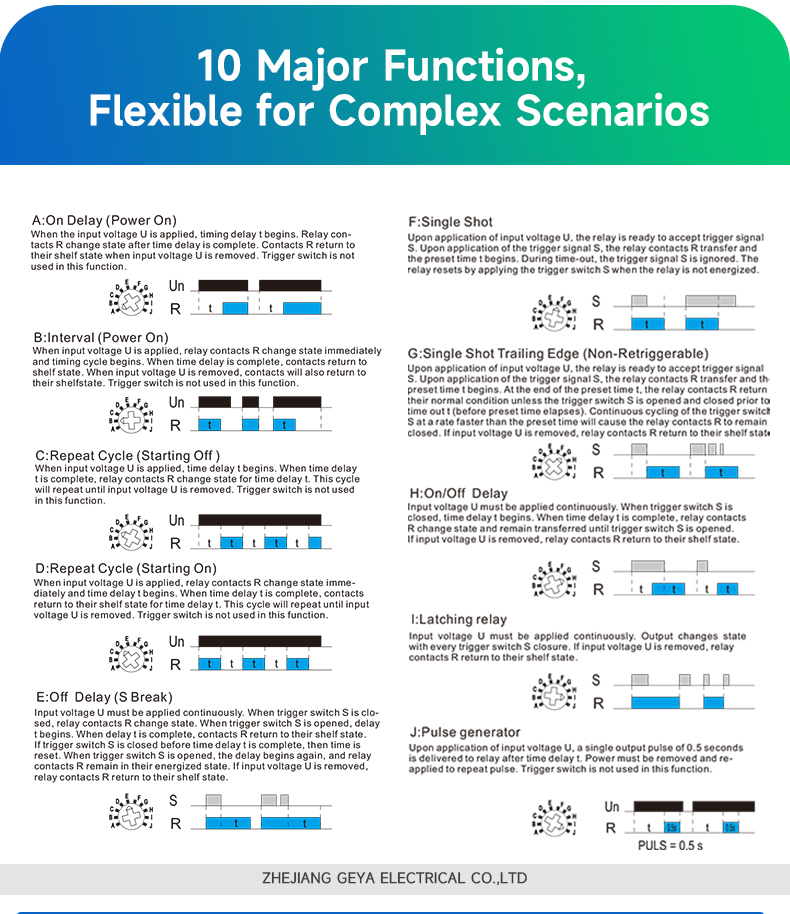

Function | A,B,C,D,E,F,G,H,I,J | ||
Supply terminals | A1-A2 | ||
Voltage range | AC/DC24-240V(50-60Hz) | ||
Burden | AC 0.09-3VA/DC0.05-1.7W | ||
Voltage range | AC 230V(50-60Hz) | ||
Power input | AC max.6VA/1.3W | AC max.6VA/1.9W | |
Supply voltage tolerance | -15%;+10% | ||
Supply indication | green LED | ||

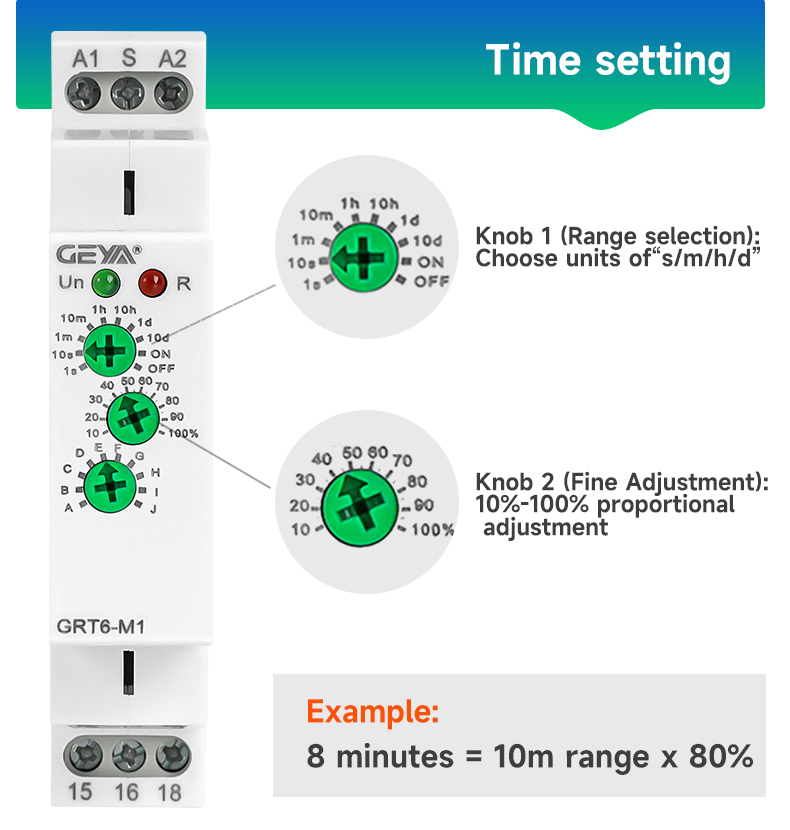

Time ranges | 0.1s-10days,ON,OFF | ||
Time setting | potentionmetei | ||
Time deviation | 10%-mechanical setting | ||
Repeat accuracy | 0.2%-setvalue stability | ||
Temperature coecient | 0.05%/℃,at=20℃(0.05%F,at=68F) | ||
Output | 1×SPDT | 2×SPDT | |
Current rating | 10A/AC1 | ||
Switching voltage | 250VAC/24VDC | ||
Min.breaking capacity DC | 500mW | ||
Output indication | red LED | ||
Mechanical life | 1*10^7 | ||
Electrical life(AC1) | 1×10^5 | ||
Reset time | max.200ms | ||
Operating temperature | -20℃ to+55℃(-4°F to 131F) | ||
Storage temperature | -35℃ to +75℃(-22F to 158F | ||

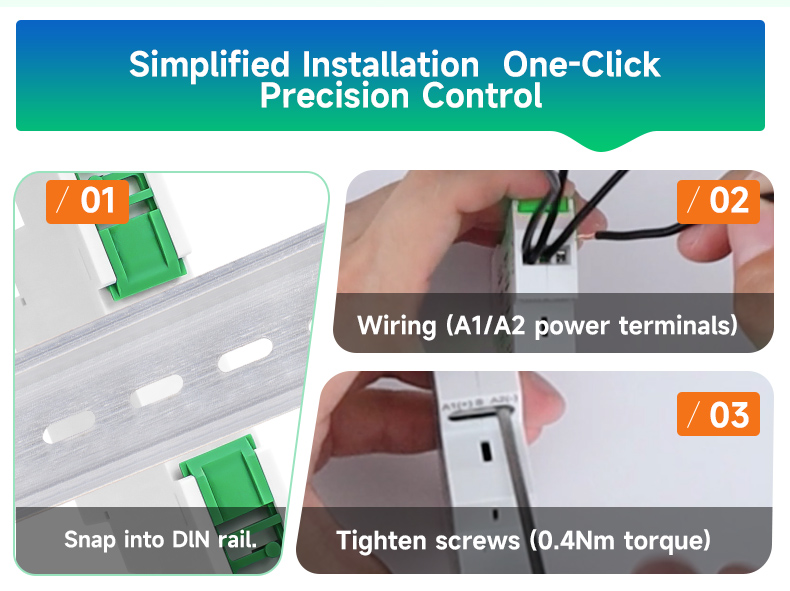

Mounting/DIN rail | Din rail EN/IEC 60715 | ||
Protection degree | IP40 for front panel/IP20 terminals | ||
Operating position | any | ||
Overvoltage cathegory | III | ||
Pollution degree | 2 | ||
Max.cable size(mm) solid wire | max.1X2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | ||
Tightening torque | 0.4Nm | ||

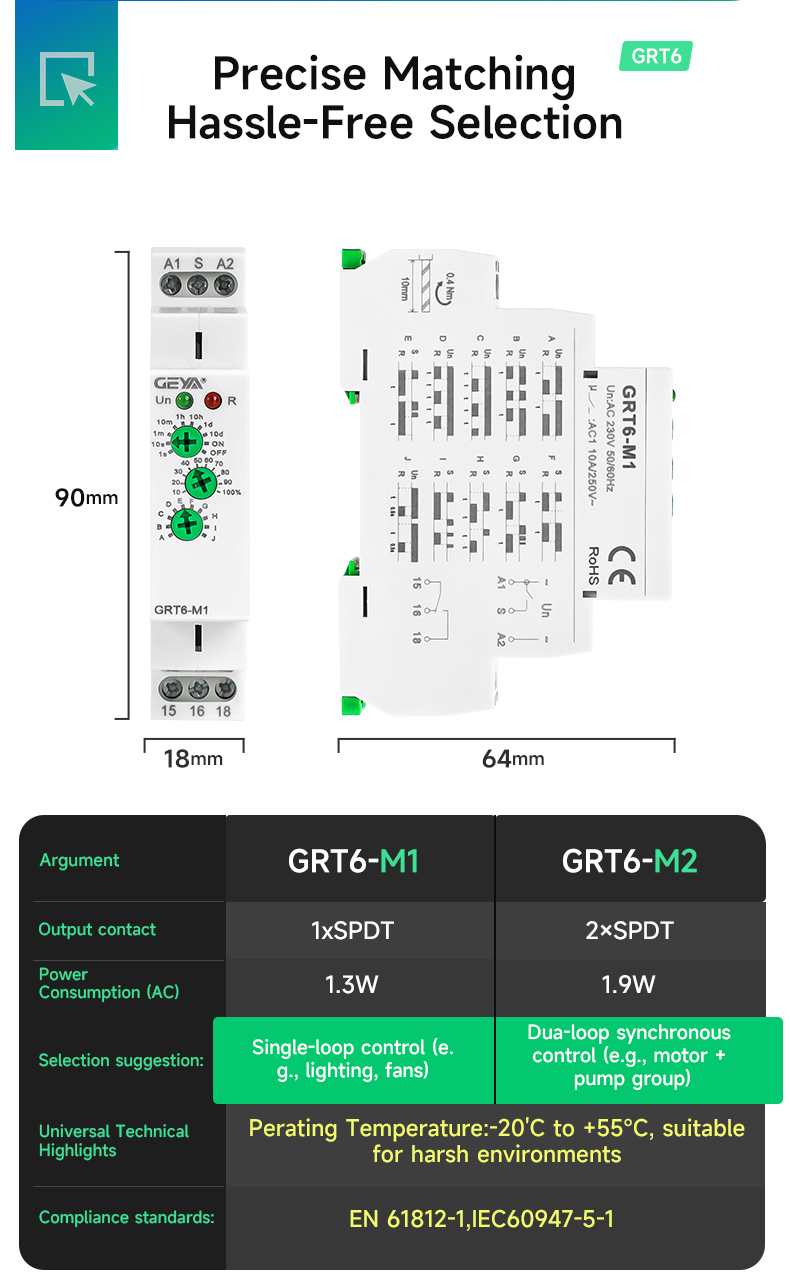

Dimensions | 90×18×64mm | ||
Weight | 1×SPDT:S240-63g,A230-62g | ||
2×SPDT:S240-82g,A230-81g | |||
Standards | EN61812-1,IEC60947-5-1 | ||
Item | Specification | N.W. of product (g) | G.W. of product (g) | Medium box weight (g) | G.W. of 60pcs/CTN (kg) | G.W. of 100pcs/CTN(kg)±50g | G.W. of 200pcs/CTN(kg) |
GRT6-A1/B1 | S240 | 52 | 64.8 | 714 | 4.63 | 7.61 | 14.92 |
GRT6-M1 | S240 | 53 | 65.7 | 723 | 4.69 | 7.70 | 15.10 |
GRT6-S1 | S240 | 53.2 | 66.0 | 726 | 4.71 | 7.73 | 15.16 |
