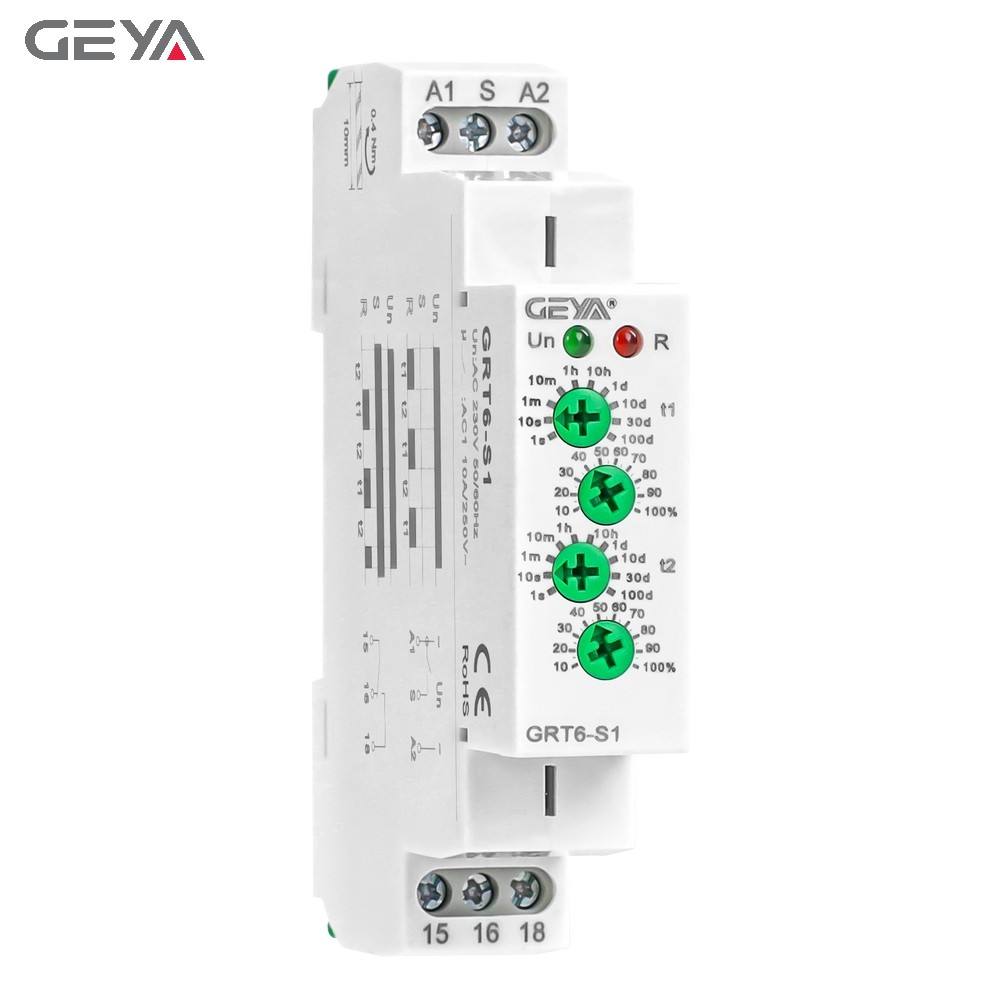

GEYA GRT6-S1 A230 High Quality Asymmetric Cycler Time Relay 10A Electric Manufacture

GEYA GRT6-S1 A230 High Quality Asymmetric Cycler Time Relay 10A Electric Manufacture

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt6-s1 A230 High Quality Asymmetric Cycler Time Relay 10a Electric Manufacture - Buy Asymmetric Cycler Time Relay Module Din-rail Mounting With 10 Time Ranges Relay Oem electric Factory Shop Ac/dc12-240v Adjustable Protective Time Relay Cycler 12v 24v 48 Volt Dc Relay Price relay Asymmetric Cycler Time Relay Cyclic Timer With Pulse Or Pause Electronic Timer Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··········This link price is only for GRT6-S1-AC230··········
Applications -It is used for regular room ventilation, cyclic dehumidifi cation, light control, circulating pumps, noon signs, etc.

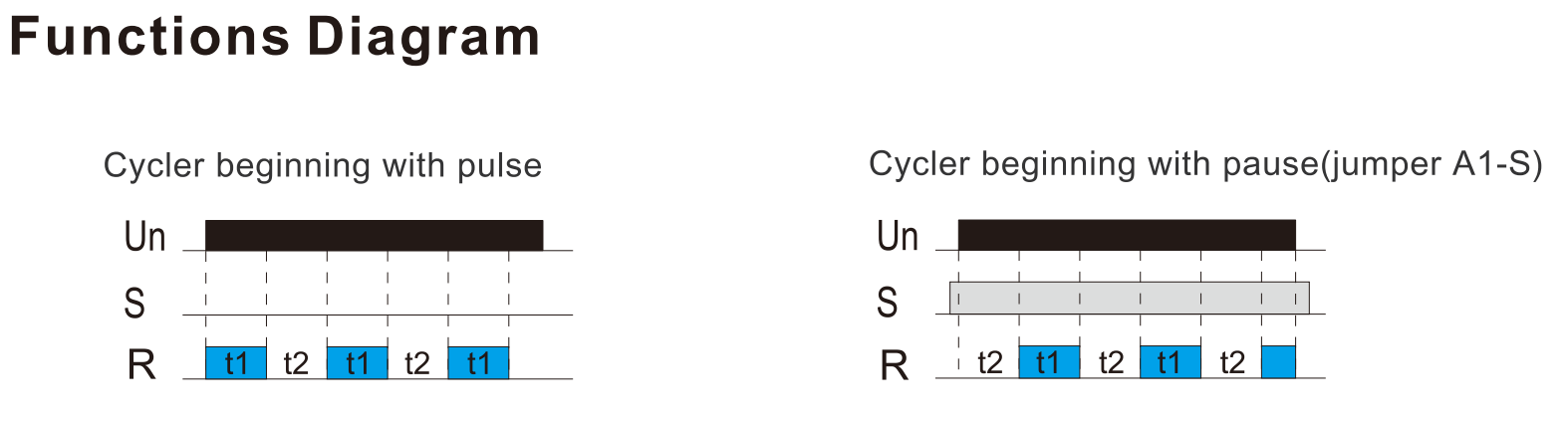

Function Features -2 time functions: -Cycler beginning with pulse -Cycler beginning with pause -Function choice is done by an external jumper of terminals S-A1. -Time scale 0.1 s - 100 days devided into 10 time ranges: (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days / 10 days - 100 days). -Relay status is indicated by LED. -1-MODULE,DIN rail mounting.
GEYA GRT6-S1 A230 High Quality Asymmetric Cycler Time Relay 10A Electric Manufacture
GEYA GRT6-S1 A230 High Quality Asymmetric Cycler Time Relay 10A Electric Manufacture
GEYA GRT6-S1 A230 High Quality Asymmetric Cycler Time Relay 10A Electric Manufacture
GEYA GRT6-S1 A230 High Quality Asymmetric Cycler Time Relay 10A Electric Manufacture
GEYA GRT6-S1 A230 High Quality Asymmetric Cycler Time Relay 10A Electric Manufacture
Technical parameters
GRT6-S1
GRT6-S2
Function
Asymmetric cycler time relay
Supply terminals
A1-A2
Voltage range
AC/DC 24-240V(50-60Hz)
Burden
AC 0.09-3VA/DC 0.05-1.7W
Voltage range
AC 230V(50-60Hz)
Power input
AC max.6VA/1.3W
AC max.6VA/1.9W
Supply voltage tolerance
-15%;+10%
Supply indication
greenLED
Time ranges
0.1s-10days
Time setting
potentionmeten
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-setvalue stability
Temperature coecient
0.05%/℃,at=20℃(0.05%℉，at=68℉)
Output
1×SPDT
2×SPDT
Currentrating
10A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×10^1
Electrical life(AC1)
1×10^5
Reset time
max.200ms
Operating temperature
-20℃ to +55℃(-4F to 131°F)
Storage temperature
-35℃ to +75℃（-22℉ to 158℉）
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm)
solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12
Tightening torque
0.4Nm

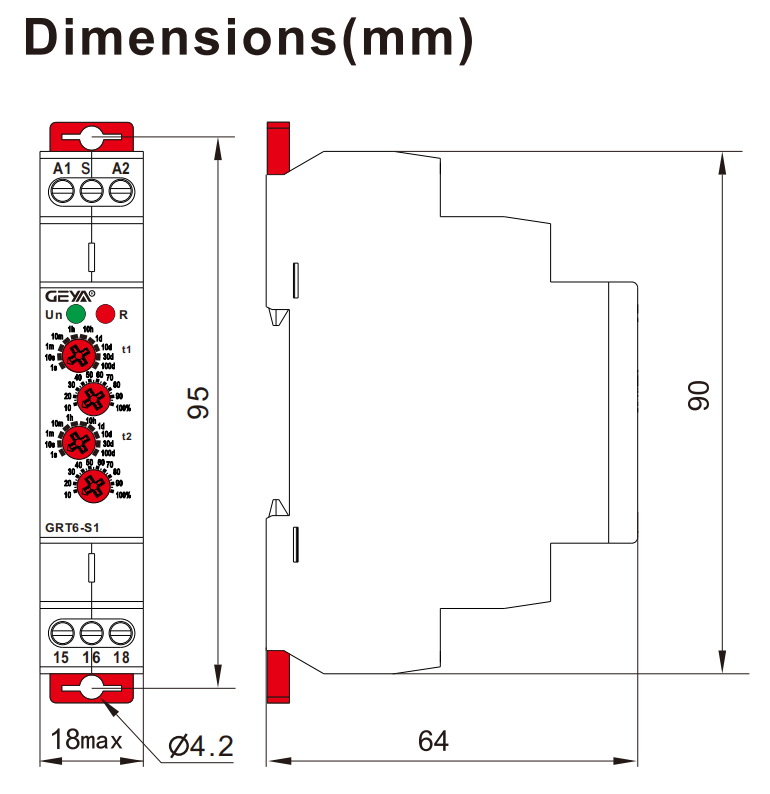

Dimensions
90×18×64mm
Weight
1×SPDT:S240-63g,A230-62g
2×SPDT:S240-83g,A230-82g
Standards
EN61812-1,IEC60947-5-1
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT6-A1/B1
S240
52
64.8
714
4.63
7.61
14.92
GRT6-M1
S240
53
65.7
723
4.69
7.70
15.10
GRT6-S1
S240
53.2
66.0
726
4.71
7.73
15.16
