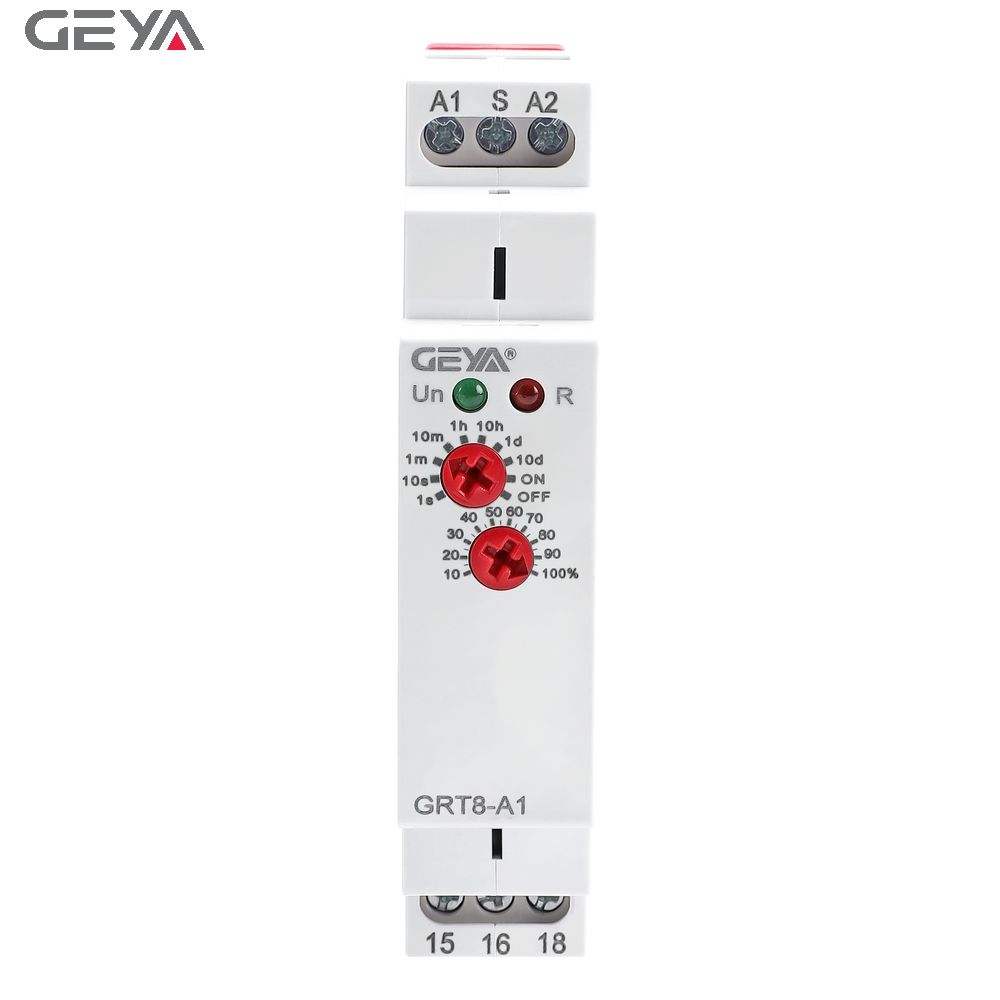

GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer

GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Grt8-a1 A230v Din Rail Time Relay Miniature Single Function Timer On Off Delay Relay Din Rail Timer - Buy Time Delay Relay Timer Ac230v 240v Delay Relay on Delay Timer Relay adjustable Timer Relay din Rail Timer Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
··········This link price is only for GRT8-A1 A230V···········
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer

**This link special for GRT8-A model, if you need other specification, please check with us!

GRT8-A/B Single Function Time Relay suitable for applications where function and time requirements are known. -As a Time switch ,
possible to be used for pump decay time after switching heating off , switching of fans.

- GRT8-A Delay on Function Time Relay
- GRT8-At Delay on with Instananeous Contact
- GRT8-B Delay off Function Time Relay
- GRT8-Bt Delay off with Instananeous Contact
- Support Wide Range Voltage: AC/DC12-240V or AC230V
- Output Contact: 1SPDT or 2SPDT or 1SPDT(del)&1SPDT(ins)
- Time scale 0.1 s - 10 days divided into 10 ranges, time setting by a potentiometer.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day,1-10day, only ON, only OFF
- Relay status is indicated by LED.
-1 MODULE 18mm,DIN rail mounting.
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GRT8-A
 Delay on Time Relay Selection
Please leave a message which specification needed?

1SPDT 16A/AC1
GRT8-A1 AC230V
GRT8-A1 AC/DC12-240V
2SPDT 16A/AC1
GRT8-A2 AC230V
GRT8-A2 AC/DC12-240V
1SPDT(del)&
1SPDT(ins)
GRT8-At AC230V
GRT8-At AC/DC12-240V
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
If you want to know more technical information or price, please kindly contact us freely!
view more >>Best Selling

GEYA GYM9DC 2P C06 06A MCB Miniature Circuit Breaker

$3.07-3.86 / piece

50 pieces

GEYA 2020 Top Sale GRT8-B Single-Function Time Relay W240 Voltage off Delay China Relay 12V

$6.20-8 / piece

10 pieces

GEYA GSR2-1-40AA DC to AC SSR 10A 25A 40A 50A 60A 80A 90A 100A 120A Electrical Equipment Solid State Relay

$3.69-4.64 / piece

50 pieces

GEYA FY-NG2R-2C 2 Channel Relay Board 1NO 1NC Din Rail Relay Module Electromagnetic Relay 12V 24V

$4.12-5.10 / piece

20 pieces

GEYA GSP9-12.5 3P+N 12.5KA Surge Arrestor Rf Surge Protector Bnc Surge Arrester 3 Ghz 12kv 25 Ka

$21.90-27.08 / piece

20 pieces

GEYA W2R 2P 110V 63a 2p Dual Powered Ats Automatic Power Transfer Switchingats Auto Changeover 60 Amp Automatic Transfer Switch

$13.53-16.67 / piece

20 pieces

GEYA Photovoltatic 1000V Solar Distribution Box PV Array 6 String DC Combiner Box DC AC Switching Box

$43.43-55.83 / piece

20 pieces

GEYA GRV8-10 NEW 36mm Width 3 Phase Voltage Monitoring Relay with Reset Time 0.1s-10s Over Under Voltage Relays

$8.71-11.24 / piece

20 pieces

GEYA RCD RCCB RCBO GYL9-TYPE a 2P 63A 30mA ELCB AC Residual Current Device Circuit Breaker MCB

$5.78-7.26 / piece

50 pieces

GEYA Din Rail GRT8-A2 AC/DC12V-24V Delay on Relay Time Delay Switch 12volt Relay China Brand Relay 12 V

$8.42-10.36 / piece

10 pieces

NEW GEYA GYM9N DPN MCB 1P+N 6A 10A 16A 20A 25A 32A 40A 220V AC Mini Circuit Breaker DPNA 6KA 10KA

$1.43-1.79 / piece

50 pieces

GEYA GRV8-01/02 AC220V Over Voltage and Under Voltage Adjustable Monitoring Voltage Relay

$6.20-8 / piece

20 pieces

GRT8-A1/B1
GRT8-A2/B2
GRT8-At/Bt
Function
A:delay ON;B:delay OFF
Supply terminals
A1-A2
Voltage range
AC/DC 12-240V(50-60Hz)
Burden
AC0.09-3VA/DC0.05-1.7
Voltage range
AC230V(50-60Hz)
Power input
AC max. 6VA/1.3W
AC max. 6VA/1.9W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
0.1s-10days,ON,OFF
Time setting
potentionmeter
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Temperature coefficient
0.05%/℃,at=20℃(0.05%F,at=68°F)
Output
1×SPDT
2×SPDT
1×SPDT(del)+1×SPDT(ins)
Current rating
1×16A(AC1)
2×16A(AC1)
Switching voltage
250VAC/24VDC
Min.break ing capacity DC
500mW
Output indication
red LED
Mechanical life
1×100000000
Electrical life(AC1)
1×1000000
Reset time
max.200ms
Operating temperature
-20℃ to+55℃(-4°F to 131°F)
Storage temperature
-35℃ to+75℃(-22°F to 158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm)²
solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12)
Dimensions
90×18×64mm
Weight
1XSPDT:W240-60g,A230-59g
2XSPDT:W240-81g,A230-79g
Standards
EN 61812-1,IEC6947-5-1
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-A1
A230
61.3
74.1
807
5.19
8.54
16.78
GRT8-B1
A230
61.2
74.1
807
5.19
8.54
16.78
GRT8-A1
AC/DC12V~240V
61.7
74.8
814
5.23
8.61
16.92
GRT8-B1
AC/DC12V~240V
61.9
74.7
813
5.23
8.60
16.90
GRT8-A2
A230
80
93.8
1004
6.37
10.51
20.72
GRT8-B2
A230
79
94.0
1006
6.39
10.53
20.76
GRT8-At
A230
80.6
93.6
1002
6.36
10.49
20.68
GRT8-Bt
A230
80.8
94.1
1007
6.39
10.54
20.78
GRT8-A2
AC/DC12V~240V
81.7
95.0
1016
6.45
10.63
20.96
GRT8-B2
AC/DC12V~240V
82
95.2
1018
6.46
10.65
21.00
GRT8-At
AC/DC12V~240V
81.8
94.7
1013
6.43
10.60
20.90
GRT8-Bt
AC/DC12V~240V
81.7
94.8
1014
6.43
10.61
20.92
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
VR
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
GEYA GRT8-A1 A230V Din Rail Time Relay Miniature Single Function Timer on Off Delay Relay Din Rail Timer
