Home > Products > Automation Relay > GEYA GRT8-B2 AC/DC12V-24V off Delay Timer 12vdc Delay Relay Module 16A Safety Relay
GEYA GRT8-B2 AC/DC12V-24V off Delay Timer 12vdc Delay Relay Module 16A Safety Relay

GEYA GRT8-B2 AC/DC12V-24V off Delay Timer 12vdc Delay Relay Module 16A Safety Relay

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt8-b2 Ac/dc12v-24v Off Delay Timer 12vdc Delay Relay Module 16a Safety Relay - Buy 12vdc Delay Relay safety Relay relay Module Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

···········This link price is only for GRT8-B2-AC/DC12V~240V···········

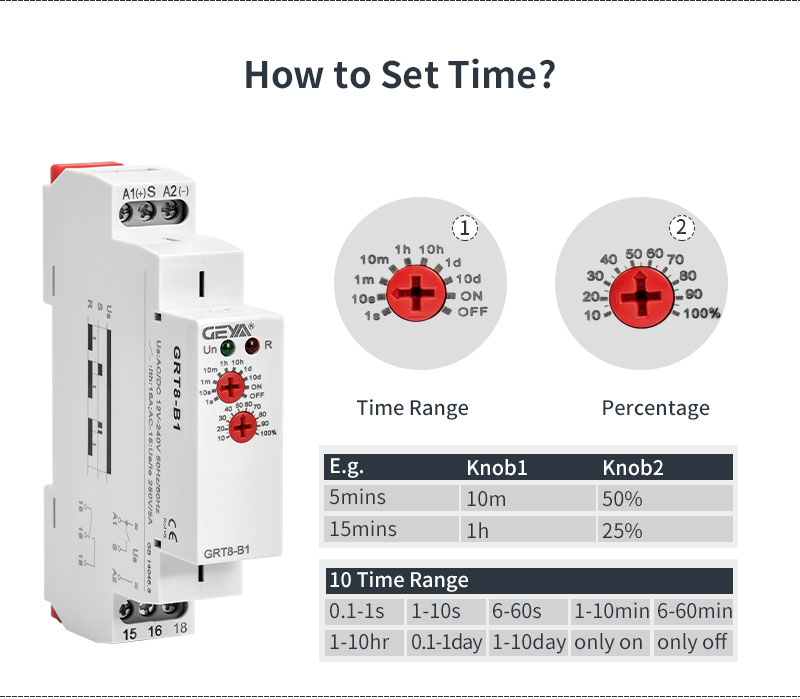

Applications -Suitable for applications where function and time requirements are known. -Time switch, possible to be used for pump decay time after switching the heating off, and switching off fans. Feature -Single-function relay with the possibility of time set by a potentiometer. -Choice of 2 functions: A: Delay ON B: Delay OFF -Time scale 0.1 s-10 days divided into 10 ranges. -Relay status is indicated by LED. -1-MODULE, DIN rail mounting.
GEYA GRT8-B2 AC/DC12V-24V off Delay Timer 12vdc Delay Relay Module 16A Safety Relay
GEYA GRT8-B2 AC/DC12V-24V off Delay Timer 12vdc Delay Relay Module 16A Safety Relay
GEYA GRT8-B2 AC/DC12V-24V off Delay Timer 12vdc Delay Relay Module 16A Safety Relay

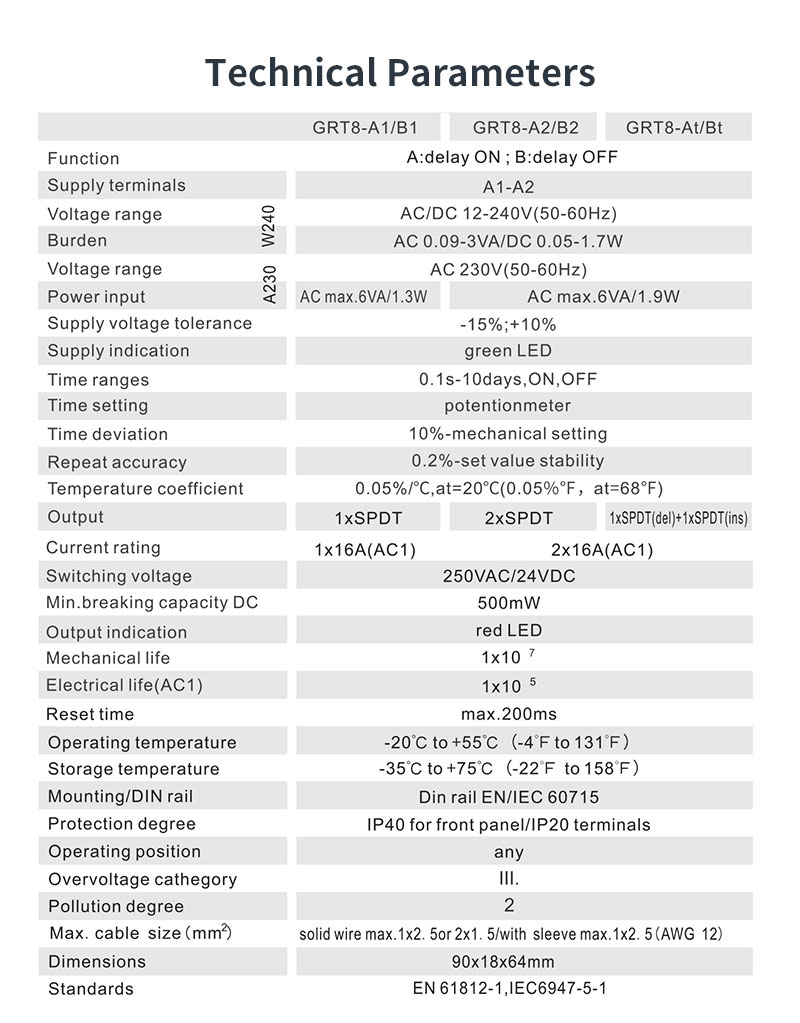

item
value
Place of Origin
China
Zhejiang
Brand Name
GEYA OEM ODM
Model Number
GRT8-B2-AC/DC12V~240V
Theory
Time Relay
Usage
General Purpose
Size
Miniature
Protect Feature
Sealed
Contact Load
Low Power
2 Function
Delay on,Delay off Time Relay
Supply Terminals
1SPDT OR 2SPDT
Frequency
50/60HZ
Time Range
0.1s-10h (in 6 alternate)
Voltage Range
AC/DC12-240V or AC 220V
Weight/pcs
0.1KG/PCS
Current
16A
Warranty/guarantee
18months
Certifications
CE CB
view more >>Recommended by seller

GEYA GRT8-S1 Asymmetric Cycler Time Relay Cyclic Timer with Pulse or Pause Electronic Timer Relay

$6.68-8.62 / piece

20 pieces

GEYA GRL8 Liquid Level Controller AC DC 24-240V 10A for Industrial Monitorig Level Water Pump Controller

$6.70-8.64 / piece

20 pieces

GEYA GRV8-04 AC Voltage Controller Phase Sequence and Failure Protection Relay 10A

$5.66-7.31 / piece

20 pieces

GEYA FY-41F-1 Din Rail Slim Relay Module Switch 6.22mm Thickness PLC Electromagnetic Relay AC/DC12V 1Channel Relay Module 6A

$2.01-2.49 / piece

50 pieces

GEYA Original 6KA MCB 1A 2A 3A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A Miniature Circuit Breaker 1 Phase Modular Din Rail MCB

$0.89-1.09 / piece

50 pieces

GEYA OEM ODM GYM9 DC MCB 6kA 2P 50/60 Hz 250V 500V 750V 1000V Solar PV System Miniature Circuit Breaker

$3.07-3.86 / piece

50 pieces

GEYA GSP9-C40 3P 275V 20KA 40KA Thunder Surge Arrester Protectors SPD for Lighting System

$7.01-8.66 / piece

20 pieces

GEYA W2R-100 Din Rail Power Transfer Switch OEMS ATS Switch ATS 2P 3P 4P 100A AC 220V 4P 63A ATS PC Transfer Switch

$14.49-17.92 / piece

20 pieces

GEYA Automatic Transfer Switch 2P Din Rail ATS Dual Power Switches 50/60Hz 220V 63A 100A

$12.72-15.73 / piece

20 pieces

GEYA W2R Mini ATS 2P Automatic Transfer Switch Electrical Selector Switches Dual Power Switch Din Rail Type ATS 63A 100A

$11.47-14.19 / piece

20 pieces

Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-A1
A230
61.3
74.1
807
5.19
8.54
16.78
GRT8-B1
A230
61.2
74.1
807
5.19
8.54
16.78
GRT8-A1
AC/DC12V~240V
61.7
74.8
814
5.23
8.61
16.92
GRT8-B1
AC/DC12V~240V
61.9
74.7
813
5.23
8.60
16.90
GRT8-A2
A230
80
93.8
1004
6.37
10.51
20.72
GRT8-B2
A230
79
94.0
1006
6.39
10.53
20.76
GRT8-At
A230
80.6
93.6
1002
6.36
10.49
20.68
GRT8-Bt
A230
80.8
94.1
1007
6.39
10.54
20.78
GRT8-A2
AC/DC12V~240V
81.7
95.0
1016
6.45
10.63
20.96
GRT8-B2
AC/DC12V~240V
82
95.2
1018
6.46
10.65
21.00
GRT8-At
AC/DC12V~240V
81.8
94.7
1013
6.43
10.60
20.90
GRT8-Bt
AC/DC12V~240V
81.7
94.8
1014
6.43
10.61
20.92
