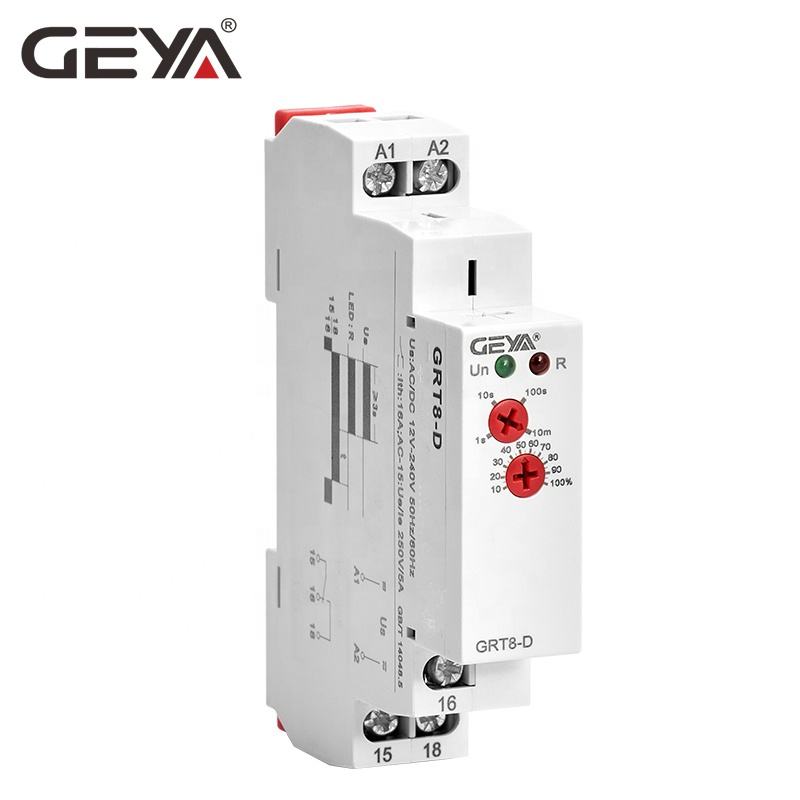

GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer

GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Grt8--d Delay Off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay On Off Delay Timer - Buy 12v Delay Timer delay Timer Module time Relay On Off Delay Timer Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
·········This link price is only for GRT8-D-AC/DC12V~240V·········
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer

GRT8-D is the -Back-up source for Delay OFF in case of voltage failure (emergency lighting, emergency respirator,or protection of el. controlled doors - in case of fire).


-GRT8-D True Delay OFF without Supply Voltage
-Time range (adjustable by rotary switch and fi ne setting by potentiometer):
0.1 s - 10 min.
-Output: 1SPDT 16A/AC1
-Voltage range: AC/DC12-240V , clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
GEYA GRT8--D Delay off Relay Without Supply Voltage 0.1-10mins Delay Time Range Time Relay on off Delay Timer
Technical parameters
GRT8-D
Function
Delay OFF without supply power
Supply terminals
A1-A2
Voltage range
AC/DC 12-240V(50-60Hz)
Burden
AC 0.09-3VA/DC 0.05-1.7W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time Ranges
0.1s-10min
Time setting
potentiometer
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Minimum power time
3s
Temperature coefficient
0.05%/℃,at=20℃(0.05%℉，at=68℉)
Output
1×SPDT
Current rating
1×16A(AC1)
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×106
Electrical life(AC1)
1×104
Reset time
max.200ms
Operating temperature
-20℃ to+55℃（-4℉to131℉）
Storage temperature
-35℃ to+75℃（-22℉to158℉）
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage category
III.
Pollution degree
2
Max.cable size(mm 2)
solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12)
If you want to know more technical information or price, please kindly contact us freely!
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-D
AC/DC12V~240V
68.9
81.7
883
5.65
9.30
18.30
