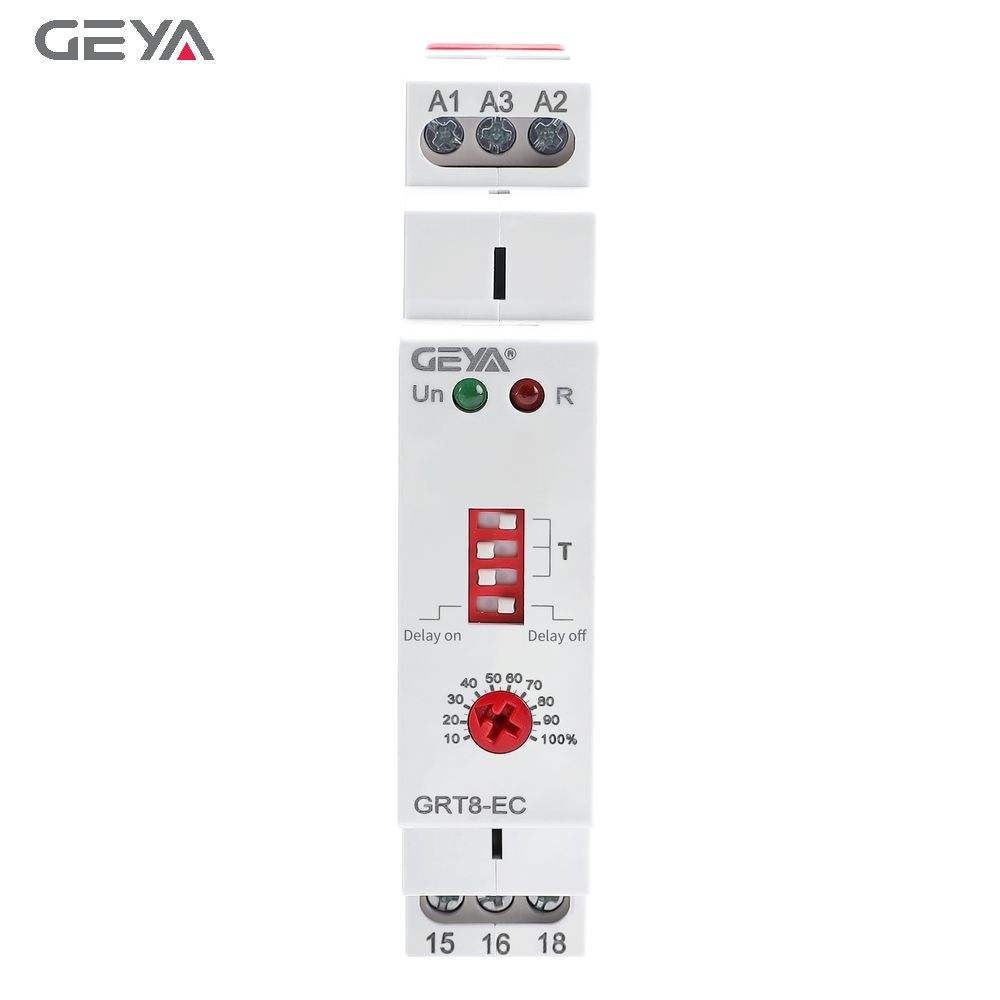

GRT8-EC | |
Function | ON delay, Delay off |
Supply terminals | A1-A2(AC230V,AC380V),A1-A3(AC/DC24V) |
Voltage range | AC230V(50-60Hz)orAC/DC24V,AC380V(50-60Hz) |
Powerinput | AC max.6VA/1.3W |
Supply voltage tolerance | -15%;+10% |
Supply indication | green LED |
Time ranges | 0.1s-10day |
Time setting | potentionmeter |
Time deviation | ≤10% |
Repeat accuracy | 0.2%-set value stability |
Temperature coefficient | 0.05%/℃,at=20℃(0 .05%°F,at=68°F) |
Output | 1XSPDT |
Current rating | 1×10A(AC1) |
Switching voltage | 250VAC/24VDC |
Min.breaking capacity DC | 500mW |
Output indication | red LED |
Mechanical life | 1×10^7 |
Electrical life(AC1) | 1×10^5 |
Reset time | max.200ms |
Storage temperature | -35℃ to+75℃(-22°F to 158°F) |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protection degree | IP40 for front panel/IP20 terminals |
Operating position | any |
Overvoltage cathegory | III |
Pollution degree | 2 |
Max.cable size(mm^2) | solid wire max.1×2.5or 2X1.5/with sleeve max.1×2.5(AWG 12) |
Dimensions | 90×18×64mm |
Weight | 52g |
Standards | EN61812-1,IEC60947-5-1 |
Item | Specification | N.W. of product (g) | G.W. of product (g) | Medium box weight (g) | G.W. of 60pcs/CTN (kg) | G.W. of 100pcs/CTN(kg)±50g | G.W. of 200pcs/CTN(kg) |
GRT8-EC | A230/DC24V | 53.3 | 66.3 | 729 | 4.72 | 7.76 | 15.22 |
GRT8-EC | A380-440V | 53.7 | 66.5 | 731 | 4.74 | 7.78 | 15.26 |
