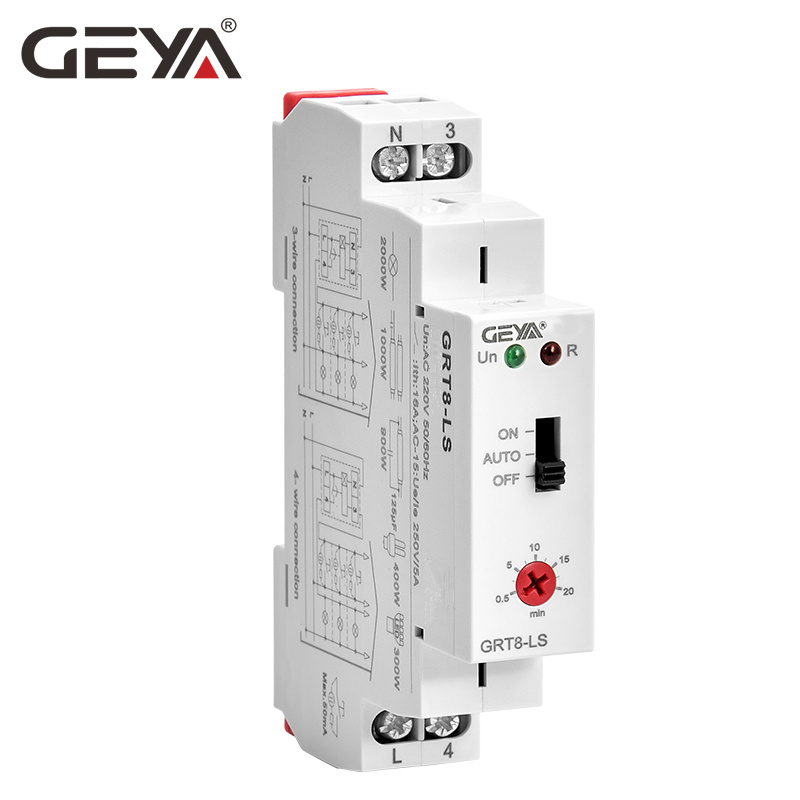

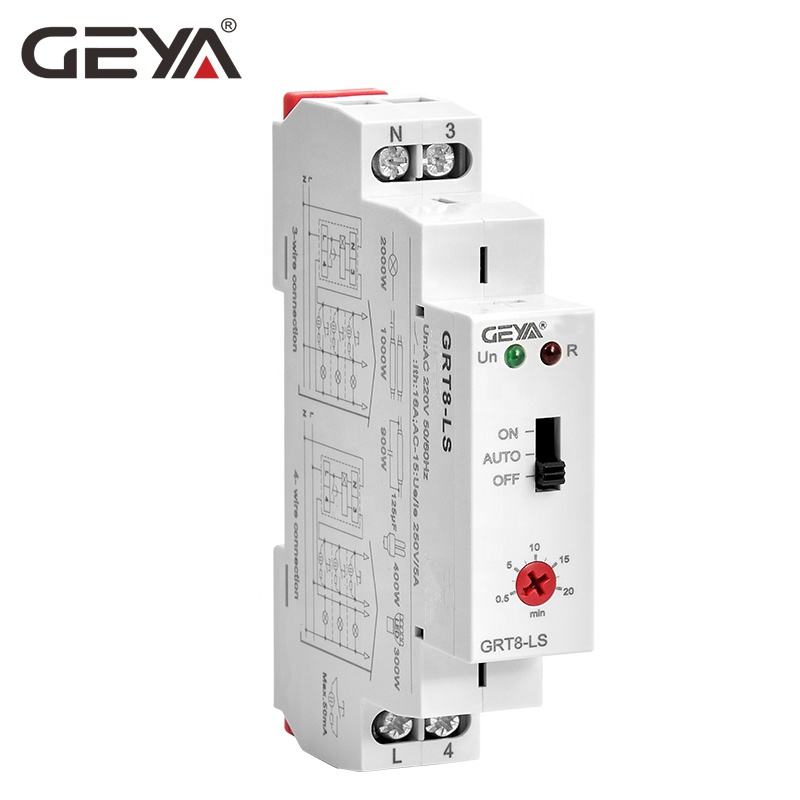

GEYA GRT8-LS 16A Staircase Switch 220V 230V AC Timer Electric Staircase Corridors Light Switch

GEYA GRT8-LS 16A Staircase Switch 220V 230V AC Timer Electric Staircase Corridors Light Switch

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt8-ls 16a Staircase Switch 220v 230v Ac Timer Electric Staircase Corridors Light Switch - Buy Staircase Switch corridors Light Switch timer Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··········This link price is only for GRT8-LS-AC230··········

GRT8-LS Staircase time switch is used for delayed switching of lights in the corridors, entrances, stairways, halls or for delayed fi nish of fans (WC, bathroom, etc.).


- GRT8-LS
Function Features
-Operating system switch:
ON- output is constantly ON .
AUTO- timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF-output is constantly OFF.
- Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
GEYA GRT8-LS 16A Staircase Switch 220V 230V AC Timer Electric Staircase Corridors Light Switch
GEYA GRT8-LS 16A Staircase Switch 220V 230V AC Timer Electric Staircase Corridors Light Switch
GEYA GRT8-LS 16A Staircase Switch 220V 230V AC Timer Electric Staircase Corridors Light Switch
GEYA GRT8-LS 16A Staircase Switch 220V 230V AC Timer Electric Staircase Corridors Light Switch
GEYA GRT8-LS 16A Staircase Switch 220V 230V AC Timer Electric Staircase Corridors Light Switch
GEYA GRT8-LS 16A Staircase Switch 220V 230V AC Timer Electric Staircase Corridors Light Switch
GRT8-LS
Function
delay off reacting to contact switching
Supply terminals
L-N
Voltage range
AC230V(50-60Hz)
Power input
AC max.6VA/1.3W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
AUTO:0 5-20min ON OFF
Time setting
potentionmeter
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-setvalue stability
Mininum power time
200ms
Glow tubes connetions
Yes(N-3 or L-3)
Max.amount of glow lamps
230V,max.75pcs(Measured with glow lamp 0.68mA/230VAC)
Temperature coefficient
0.05%/℃,at=20℃(0.05%F,at=68°F)
Output
1×SPST
Current rating
16A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
redLFD
Mechanical life
1×107
Electrical life(AC1)
1×105
Reset time
max.200ms
Operating temperature
-20℃ to+55℃(-4F to 131F)
Storage temperature
-35℃ to+75℃(-22F to 158F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm²)
solid wire max.1X2.5or2×1.5/with sleeve max.1X2.5(AWG 12)
Dimensions
90×18×64mm
Weight
61g
Standards
EN61812-1,IEC 60669-2-3,IEC60947-5-1
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-LS
AC230
61.2
74.0
806
5.19
8.53
16.76
