Product Description

···········This link price is only for GRT8-LS-AC230···········
GEYA GRT8-LS 16A Staircase Timer Switch Street Light Timer Switch Timer Electric Staircase Light Time Switch
GEYA GRT8-LS 16A Staircase Timer Switch Street Light Timer Switch Timer Electric Staircase Light Time Switch
GEYA GRT8-LS 16A Staircase Timer Switch Street Light Timer Switch Timer Electric Staircase Light Time Switch

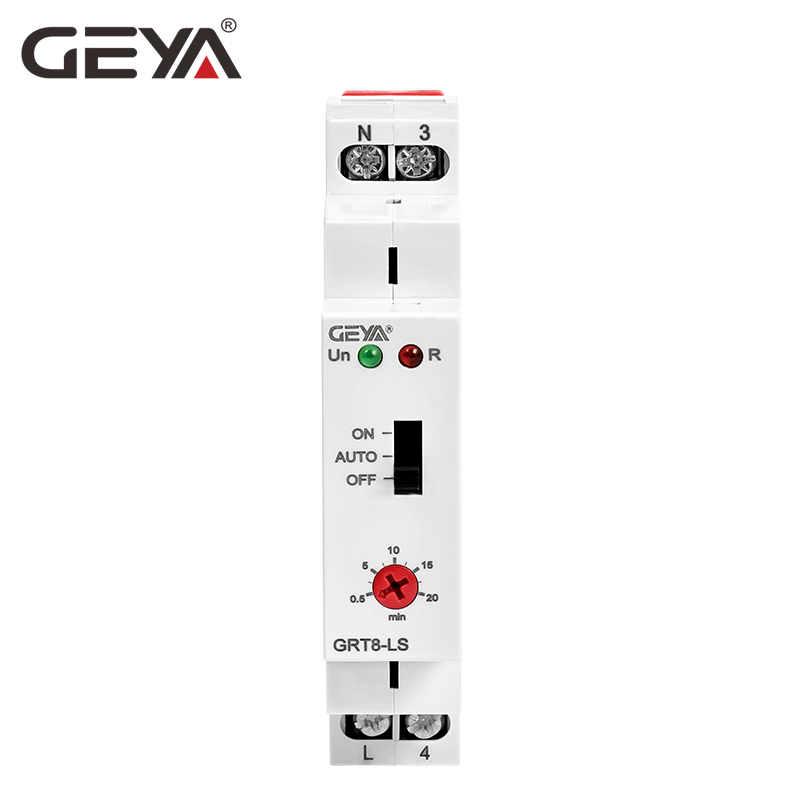

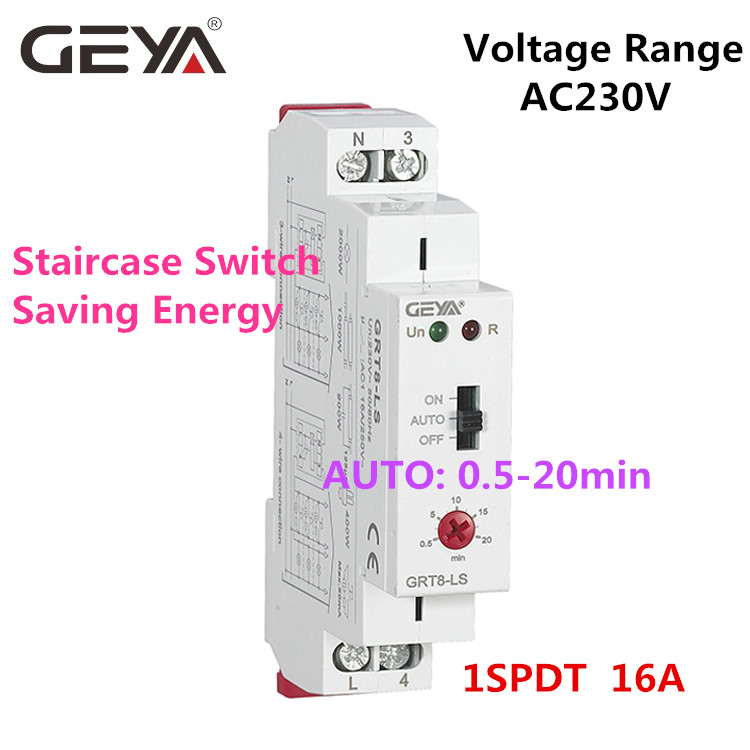

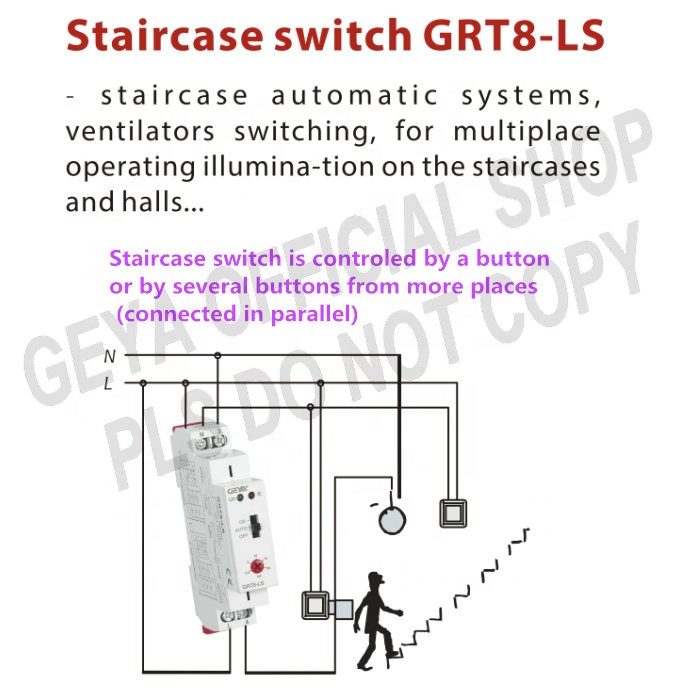

GRT8-LS Staircase time switch is used for delayed switching of lights in the corridors, entrances, stairways, halls or for delayed fi nish of fans (WC, bathroom, etc.).


- GRT8-LS
Function Features
-Operating system switch:
ON- output is constantly ON .
AUTO- timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF-output is constantly OFF.
- Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
GEYA GRT8-LS 16A Staircase Timer Switch Street Light Timer Switch Timer Electric Staircase Light Time Switch
GEYA GRT8-LS 16A Staircase Timer Switch Street Light Timer Switch Timer Electric Staircase Light Time Switch
GEYA GRT8-LS 16A Staircase Timer Switch Street Light Timer Switch Timer Electric Staircase Light Time Switch
Technical Data
Technical parameters
GRT8-LS

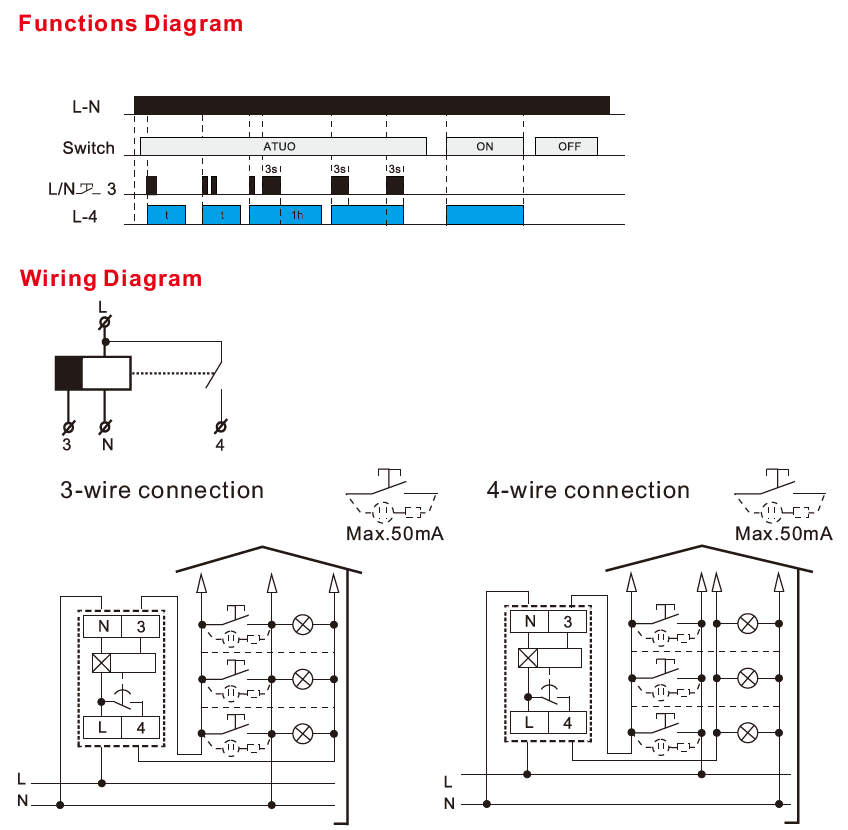

Function
delay off reacting to contact switching
Supply terminals
L-N
Voltage range
AC 230V(50-60Hz)
Power input
AC max.6VA/1.3W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time Ranges
AUTO:0.5-20min ON OFF
Time setting
potentiometer
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Minimum power time
200ms
Glow tubes connections
Yes(N-3 or L-3)
Max.amount of glow lamps
230V,max.75pcs(Measured with glow lamp 0.68mA/230V AC)
Temperature coefficient
0.05%/℃,at=20℃(0.05%℉，at=68℉)
Output
1×SPDT
Current rating
1×16A(AC1)
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×107
Electrical life(AC1)
1×105
Reset time
max.200ms
Operating temperature
-20℃ to+55℃（-4℉to131℉）
Storage temperature
-35℃ to+75℃（-22℉to158℉）
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage category
III.
Pollution degree
2
Max.cable size(mm 2)
solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12)
GEYA GRT8-LS 16A Staircase Timer Switch Street Light Timer Switch Timer Electric Staircase Light Time Switch
GEYA GRT8-LS 16A Staircase Timer Switch Street Light Timer Switch Timer Electric Staircase Light Time Switch
If you want to know more technical information or price, please kindly contact us freely!
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-LS
AC230
61.2
74.0
806
5.19
8.53
16.76
