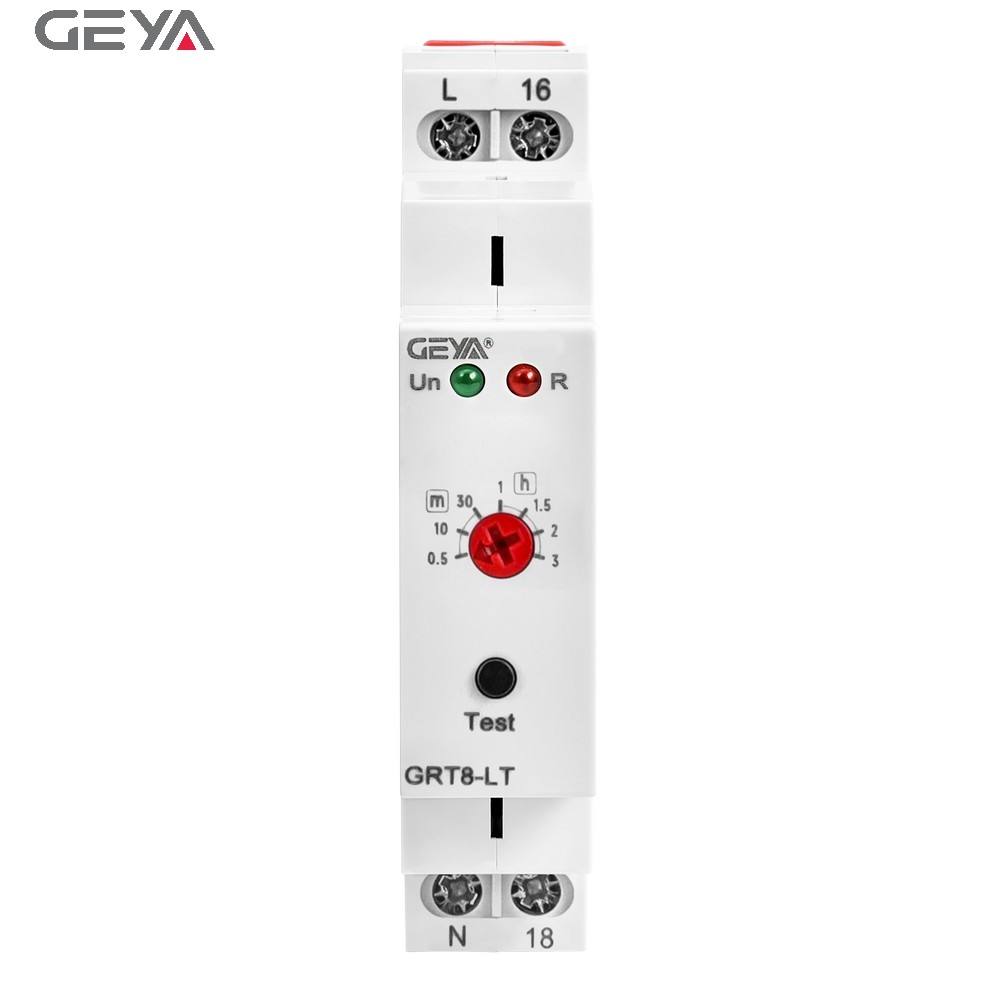

GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V

GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt8-lt Emergency Light Test Relay Timer For Automatic Test 230v - Buy Repeat Cycle Timer Relay Multiple Light Timer Light Timer 220v Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··········This link price is only for GRT8-LT·········
Applications
-Timer for automatic test of emergency lights.
Function Features
-Integrated test key.
-1 change over contact.
-Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting
GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V
GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V
GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V
GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V
GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V
GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V
GEYA GRT8-LT Emergency Light test Relay Timer for Automatic test 230V
Technical parameters
GRT8-LT
Function
Emergency light test relay
Supply terminals
L-N
Voltage range
AC 230V(50/60Hz)
Power input
AC max.1.2VA/0.8W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
0.5m-3hours
Time setting
potentionmeter
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Mininum power time
500ms
Temperature coecient
0.05%/℃
Output
1×SPDT
Current rating
16A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Reset time
max.200ms
Operating temperature
-20℃ to+55℃
Storage temperature
-35℃ to+75℃
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
Ⅲ
Pollution degree
2
Max.cable size(mm²)
solid wire max.1×2.5or 2×1.5/with sleeve max1×2.5(AWG 12)
Tightening torque
0.8Nm
Dimensions
90×18×64mm
Weight
70g
Standards
EN 61812-1,IEC 60669-2-3,IEC60947-5-1
