Product Description

GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay

**This link is special for GRT8-M1 AC/DC12V-240V, if you need other specification, please kindly tell us!


Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions,10 time ranges, multi-voltage).

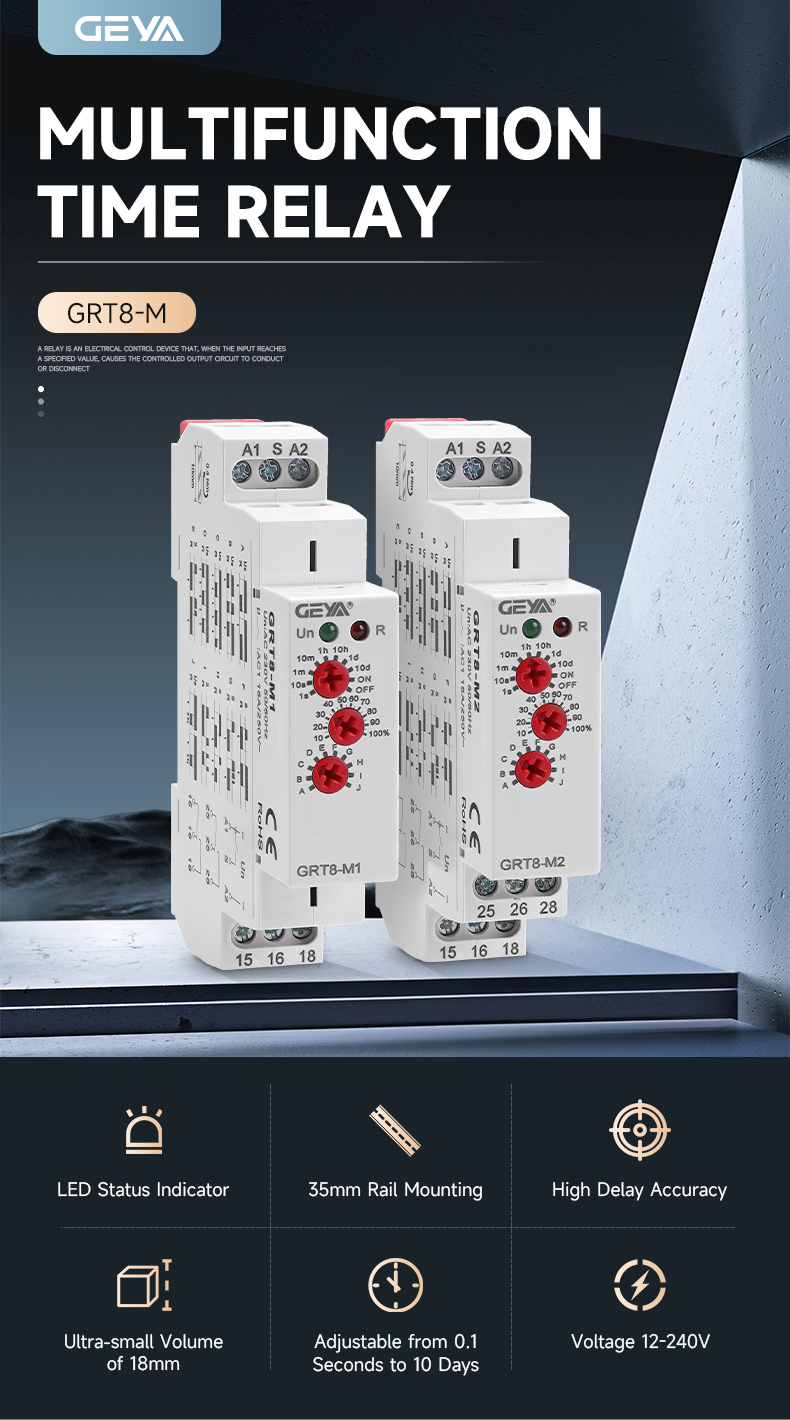

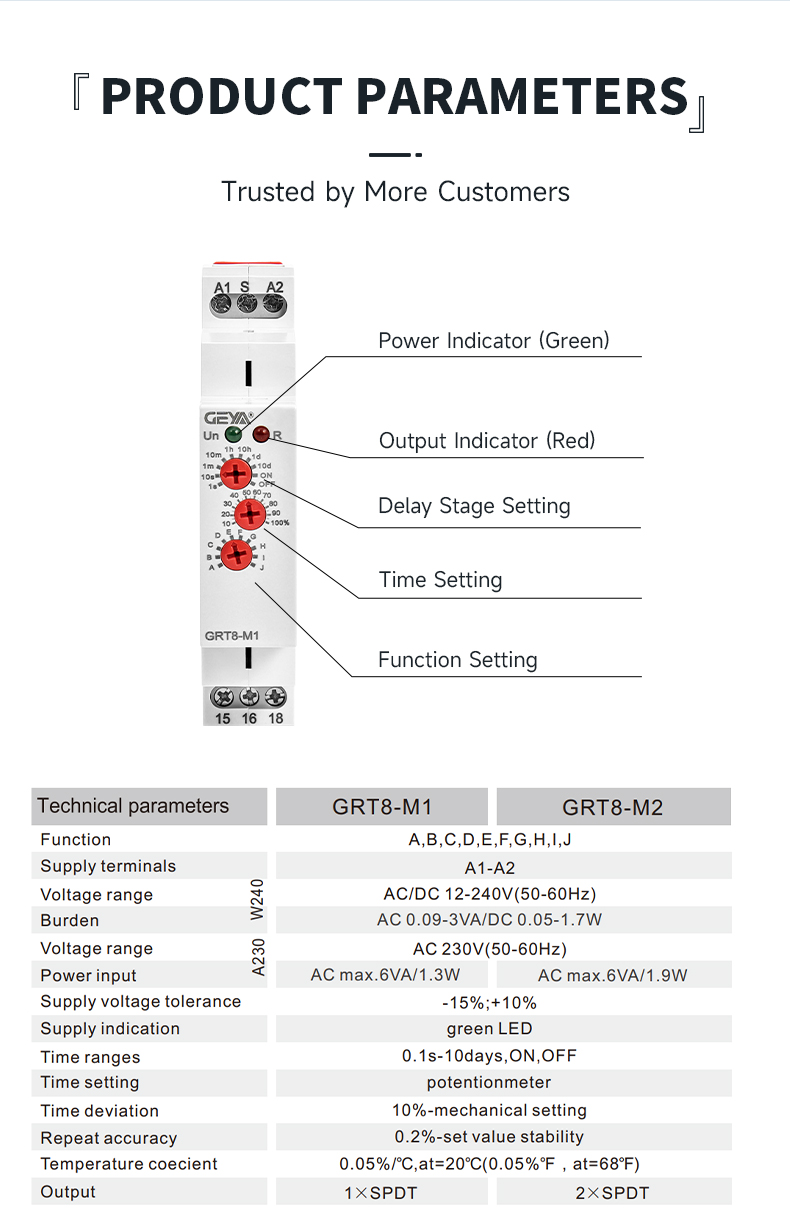

- GRT8-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC12-240V
- Output: 16A 1SPDT or 2SPDT

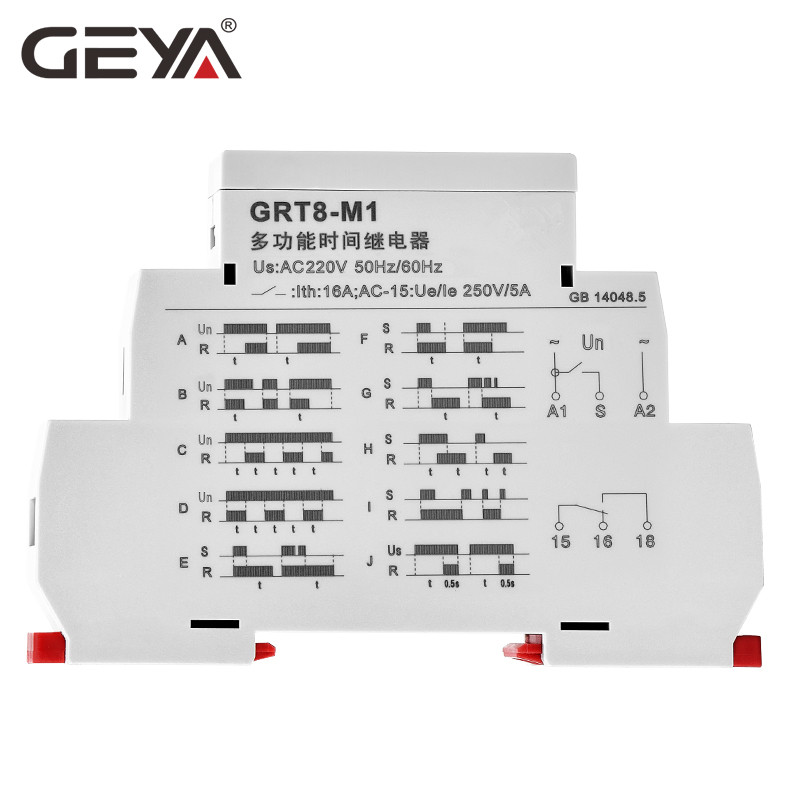

-10 Functions:
5 time functions controlled by supply voltage ( A B C D J )
4 time functions controlled by control input ( E F G H )
1 function of latching relay ( I )

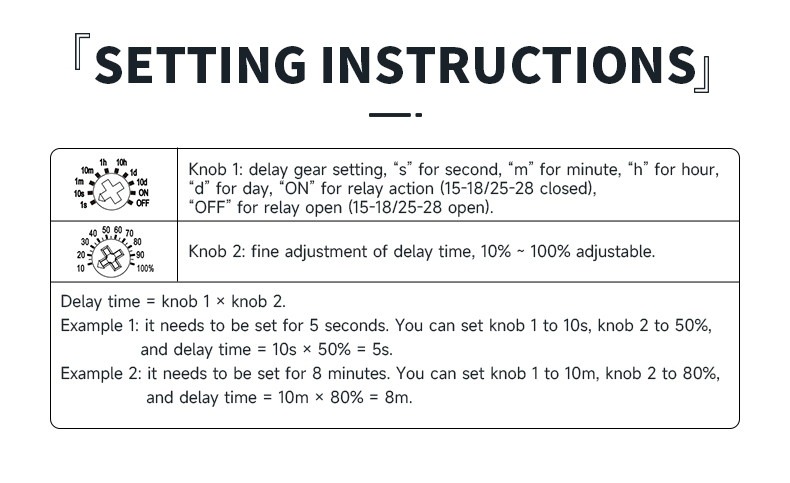

-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off

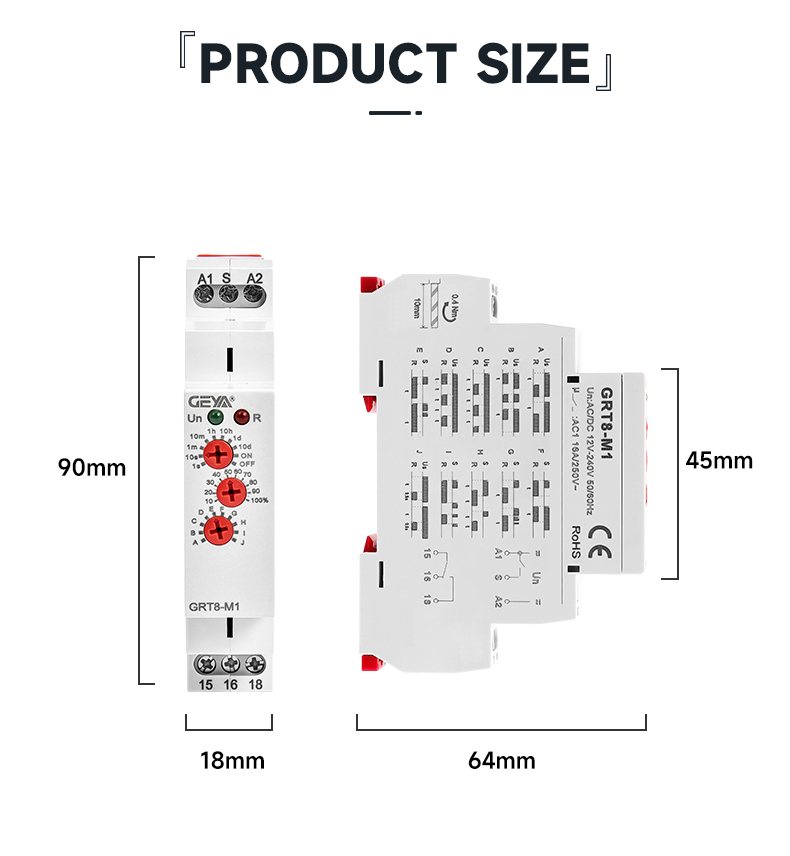

- 1-MODULE 18mm, DIN rail mounting, convenient install.
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GRT8-M
Multifunction Time Relay Selection
Please leave a message which specification needed?

1SPDT 16A/AC1
GRT8-M1 AC230V
GRT8-M1 AC/DC12-240V

2SPDT 16A/AC1
GRT8-M2 AC230V
GRT8-M2 AC/DC12-240V
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
GEYA GRT8-M1 16A AC230V or AC/DC 12-240V Hot Sale Multi-function Modular Time Relay
If you want to know more technical information or price, please kindly contact us freely!
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-M1
A230
62.4
75.1
817
5.25
8.64
16.98
GRT8-M1
AC/DC12V~240V
62.9
76.3
829
5.32
8.76
17.22
GRT8-M2
A230
81.7
94.3
1009
6.40
10.56
20.82
GRT8-M2
AC/DC12V~240V
82.6
95.4
1020
6.47
10.67
21.04
