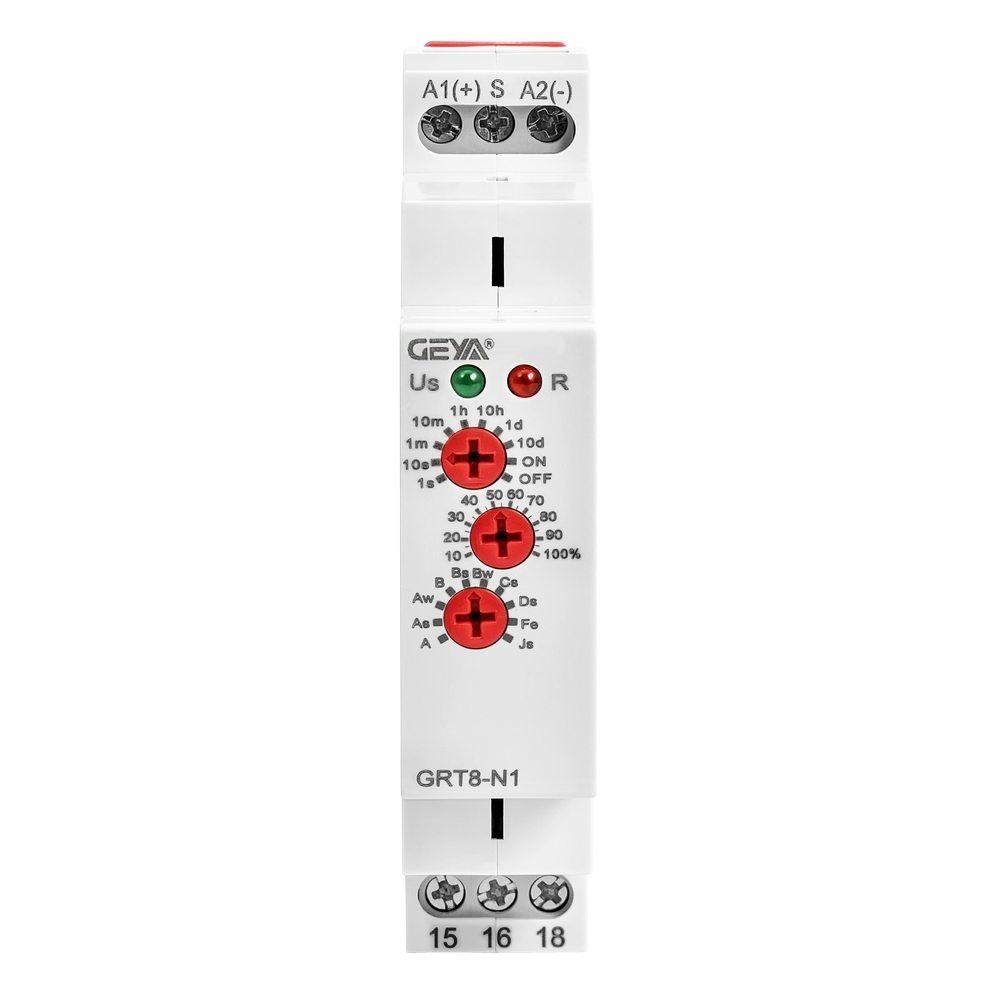

GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump

GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt8-n1 1spdt Ac230v Ac/dc12v-240v Chinese Timer Relay Extended Multifunction Time Relay For Light Motor Pump - Buy On Delay Digital Display Time-delay Relay Safety Relay With Timed Contact off Delay Star-delta Time Relay Plc Multi Time Remote Relay Switch 240v 100a repeat Cycle 24 Hours Timer Relay Cycle Spdt Time Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

·········This link price is only for GRT8-N1 AC230··········
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
Applications: Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage). Feature: -10 functions: 8 time functions controlled by supply voltage 2 time functions controlled by control input -Comfortable and well-arranged function and time-range setting by rotary switches. -Time scale 0.1 s - 10 days divided into 10 ranges. -Relay status is indicated by LED. -1-MODULE,DIN rail mounting.
GRT8-N1
GRT8-N2
Function
A,As,Aw,B,Bs,Bw,Cs,Ds,Fe,Js
Supply terminals
A1-A2
Voltage range
AC/DC 12-240V(50-60Hz)
Burden
AC 0.09-3VA/DC0.05-1.7W
Voltage range
AC 230V(50-60Hz)
Power input
ACmax.6VA/1.3W
AC max.6VA/1.9W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
0.1s-10days,ON,OFF
Time setting
potentionmeter
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Temperature coefficient
0.05%/C,at=20℃C(0.05%°,at=68°F)
Output
1×SPDT
2×SPDT
Current rating
1×16A(AC1)
2×16A(AC1)
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×10000000
Electrical life(AC1)
1×100000
Reset time
max.200ms
Operating temperature
-20℃ to+55℃(-4°F to 131°F)
Storage temperature
-35℃ to +75℃(-22°Fto 158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size（mm²）
solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12)
Dimensions
90×18×64mm
Weight
1×SPDT:W240-62g,A230-60g
2×SPDT:W240-82g,A230-81g
Standards
EN 61812-1.IEC60947-5-1
Recommended by seller

GEYA GRV8-02 AC / DC Supply Voltage Single Phase 10A Monitoring Voltage Relay

$6.20-8 / piece

10 pieces

GEYA GRV8-04 AC Voltage Controller Phase Sequence and Failure Protection Relay 10A

$5.66-7.31 / piece

20 pieces

GEYA GRT8-A1 Delay on Time Relay AC220V Din Rail Single Function AC230V 240V Timer Delay DC

$4.38-5.65 / piece

20 pieces

GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch

$8.20-10.59 / piece

20 pieces

GEYA GYM8 250V 500V 800V 1000V 1200V C20 Mcb Mini Circuit Breaker/ Mcb 2pole 4pole

$1.32-1.63 / piece

50 pieces

NEW GEYA Type B RCCB 63A 4 Pole ELCB Earth Leakage Circuit Breaker DC RCD 4P 40A 63A 30mA

$33.71-42.36 / piece

50 pieces

GEYA GRD9L-R Auto Recloser RCCB Residual Current Circuit Breaker AC220V 2P 40A 30mA RCD Autocloser Mcb

$38.70-48.62 / piece

20 pieces

GEYA W2R Auto Manual Transfer Switch 100Amp Generator ATS 63A 100A 2P 3P 4P 220V

$14.49-17.92 / piece

20 pieces

GEYA FY-T73-8C-12V 24V 8 Group Interlocking Relay Module PLC 12VDC Relay Interface

$7.65-9.46 / piece

20 pieces

GEYA W2R-100 Change Over Switch Automatic 2P 3P 4P 40A 50A 63A 100A ATS OEMS Factory

$12.39-15.32 / piece

20 pieces

GEYA GLC1 Contactor Magnetic Compressor Contactor 24V 110V 220V 380V 400V 440V

$12.72-15.72 / piece

20 pieces

Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-M1/N1
A230
62.4
75.1
817
5.25
8.64
16.98
GRT8-M1/N1
AC/DC12V~240V
62.9
76.3
829
5.32
8.76
17.22
GRT8-M2/N2
A230
81.7
94.3
1009
6.40
10.56
20.82
GRT8-M2/N2
AC/DC12V~240V
82.6
95.4
1020
6.47
10.67
21.04
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
VR
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
GEYA GRT8-N1 1SPDT AC230V AC/DC12V-240V Chinese Timer Relay Extended Multifunction Time Relay for Light Motor Pump
