Home > Products > Automation Relay > GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay
GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay

GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt8-p2--ac/dc12v~240v Ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay - Buy Din Rail Time Relay time Delay Relay 24 Volt time Delay Relay 12 Volt multifunctional Digital Delay Timer Relay Module Relay Timer Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

*****This link price is only for GRT8-P2--AC/DC12V~240V *****

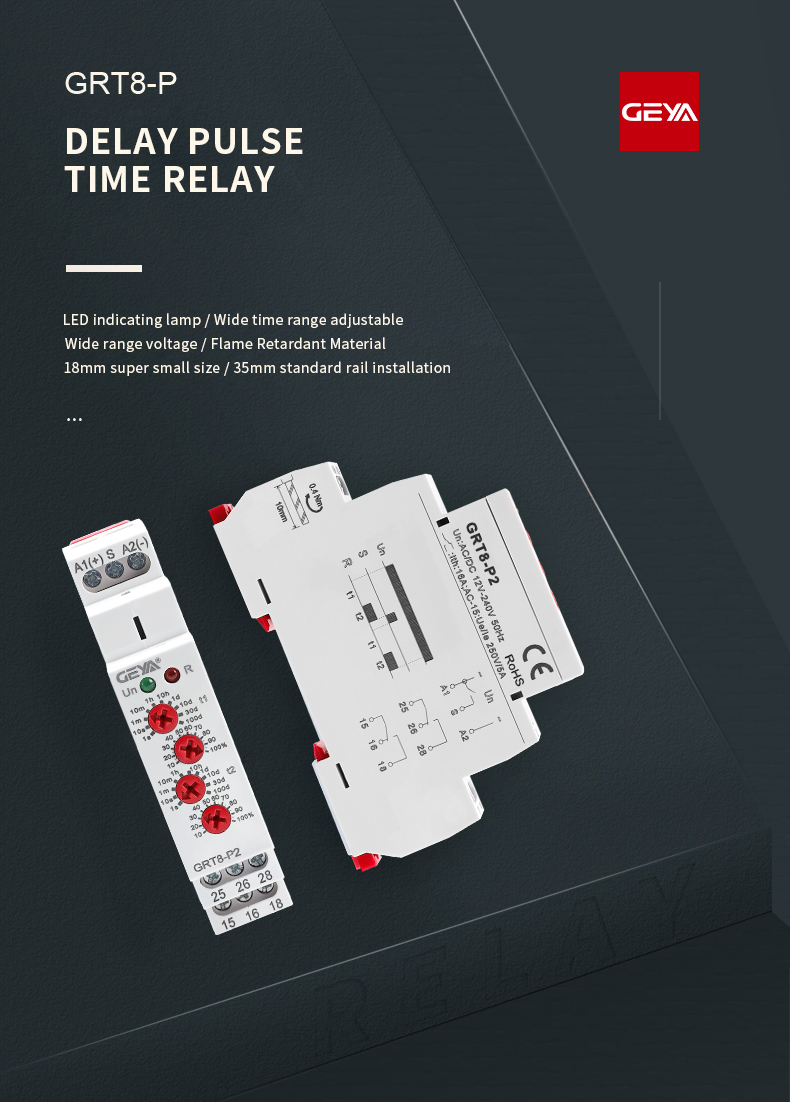

GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay
GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay
GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay
GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay
GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay
GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay
GEYA GRT8-P2--AC/DC12V~240V ultra Wide Operating Voltage Timer Relay Multifunction Range Din Rail Time Relay
Applications
-It is used to delay and generate a pulse, which is used to delay the connection of a load for a period of time.

Function Features

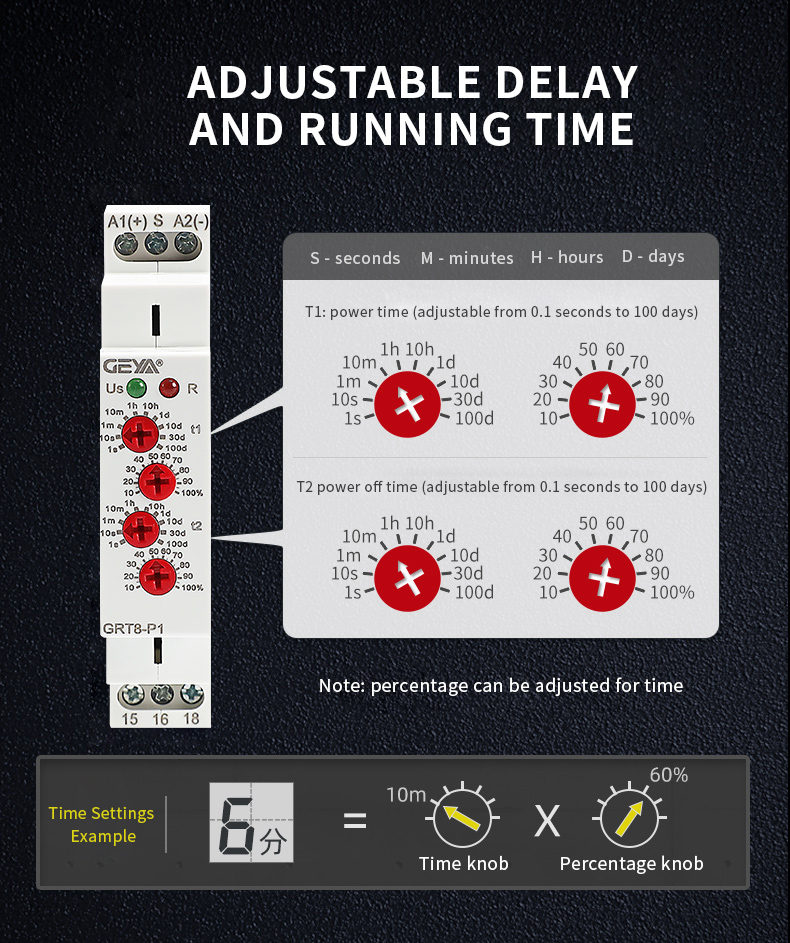

-Separate delay time and pulse width setting can set different delay time.
-Time scale 0.1 s - 100 days.
-The delay time can be reset by shorting S-A1.
-With AC/DC 12V-240V ultra wide operating voltage specifications are optional.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
GRT8-P1
GRT8-P2
Function
Pulse output time relay
Supply terminals
A1-A2
Voltage range（W240）
AC/DC 12-24V(50-60Hz)
Burden（W240）
AC 0.09-3VA/DC 0.05-1.7W
Voltage range（A230）
AC230V(50-60Hz)
Power input（A230）
AC max.6VA/1.3W
AC max.6VA/1.9W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
0.1s-100days
Time setting
potentionmeter
Time deviation
10%-mechanical setting
Repeat accuracy
0.2%-set value stability
Temperature coefficient
0.05%/℃,at=20℃(0.05%°F, at=68°F)
output
1×SPDT
2×SPDT
Current rating
16A(AC1)
2x16A(AC1)
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mw
Output indication
red LED
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Resettime
max.200ms
perating temperature
-20℃ to+55℃(-4°F to 131°F)
Storage temperature
-35℃to+75℃ (-22°F to 158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
overvoltage cathegory
Ⅲ.
Pollution degree
2
Max.cable size(mm²)
solid wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG12)

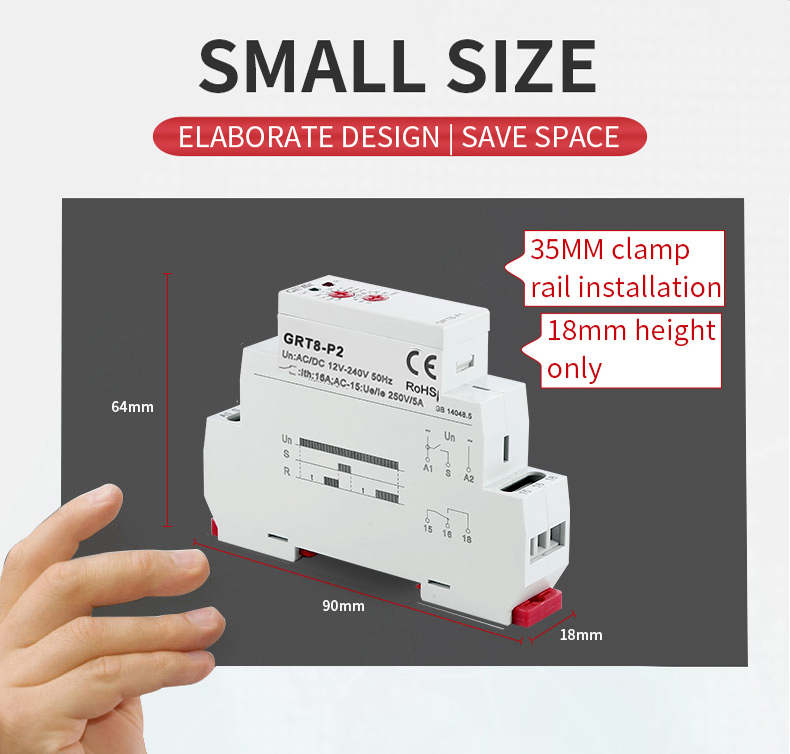

Dimensions
90×18×64mm
Weight
1xSPDT:W240-62g,A230-61g
2xSPDT:W240-82g,A230-82g
Standards
EN61812-1,IEC60947-5-1
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-P1
A230
62.3
75.0
816
5.25
8.63
16.96
GRT8-P1
AC/DC12V~240V
63
76.0
826
5.31
8.73
17.16
GRT8-P2
A230
82.8
95.7
1023
6.49
10.70
21.10
GRT8-P2
AC/DC12V~240V
83.2
96.0
1026
6.51
10.73
21.16
