Product Description

*****This link price is only for GRT8-RL-AC230*****
Applications
-Right-Left(inverser) timer relay are used for 2 different loads,which works by turn.First load starts working,stops and waits(off
) and second load starts working.Both working time is same.

Function Features

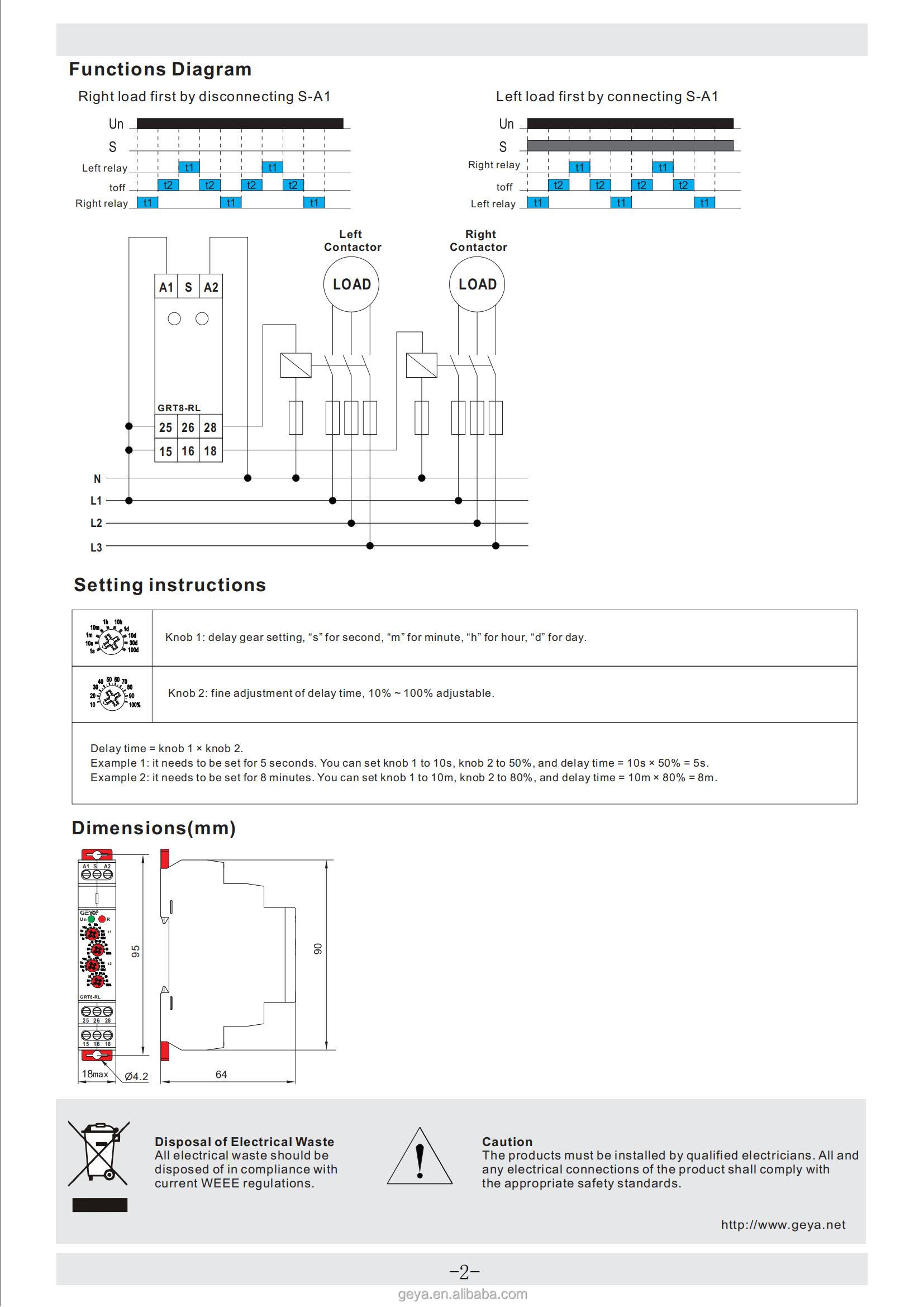

-The default is right load first. You can select left load first by shorting S-A1

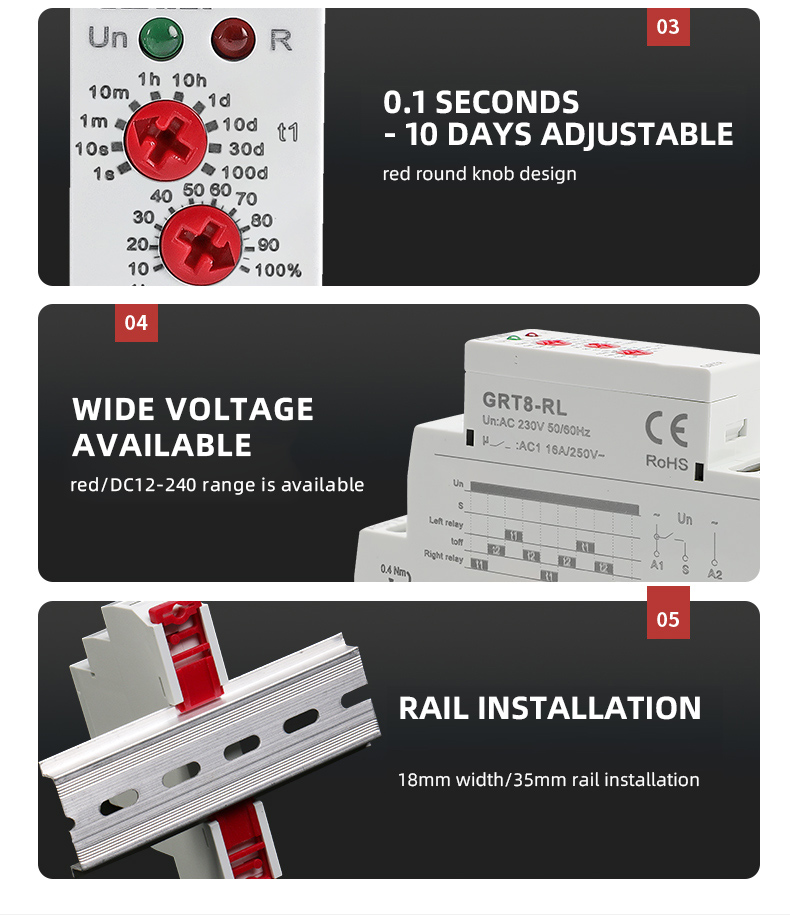

-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days
/3 days - 30 days / 10 days - 100 days).

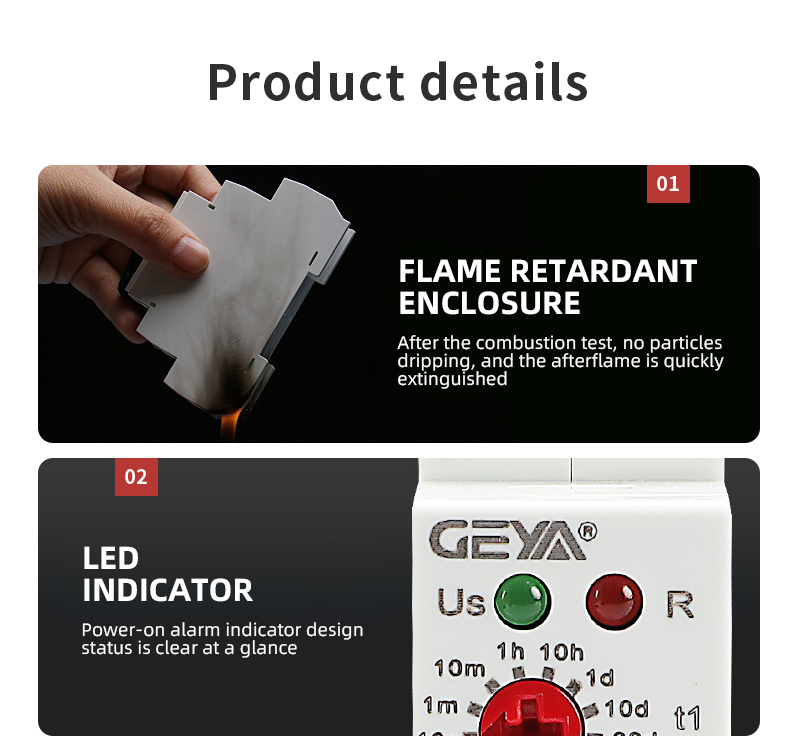

-Relay status is indicated by LED.

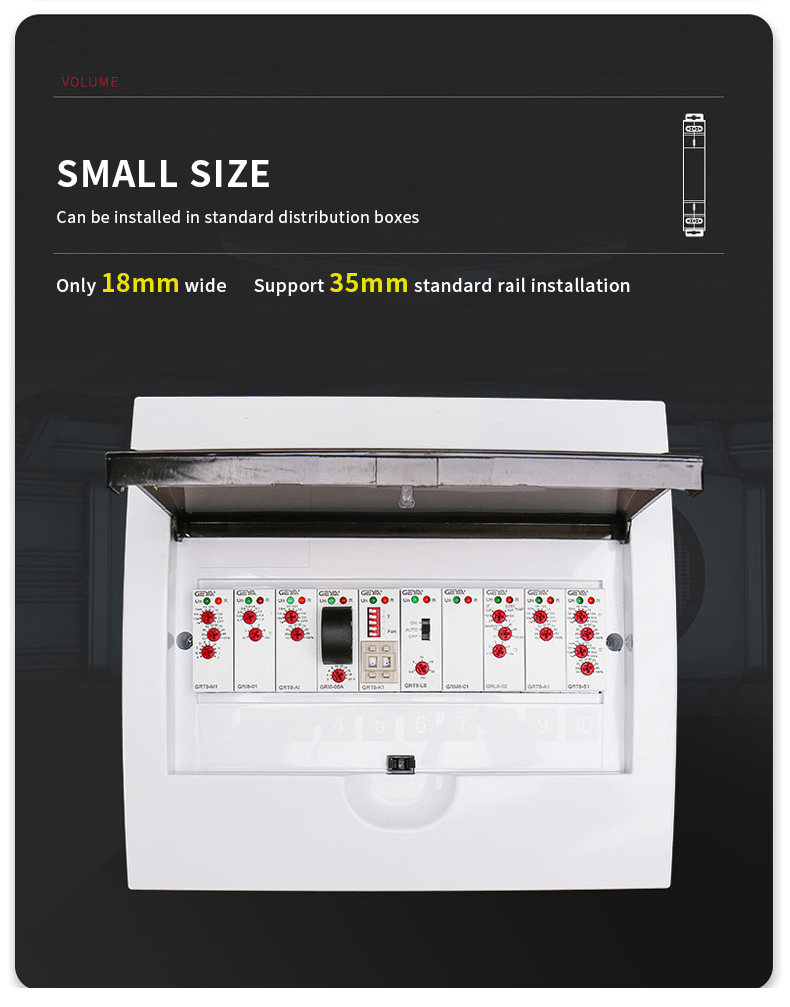

-1-MODULE,DIN rail mounting.
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay
GEYA GRT8-RL-230 AC230V 10 Time Ranges Right-Left Inverser Time Relay for 2 Different Loads Inverse Time Overcurrent Relay

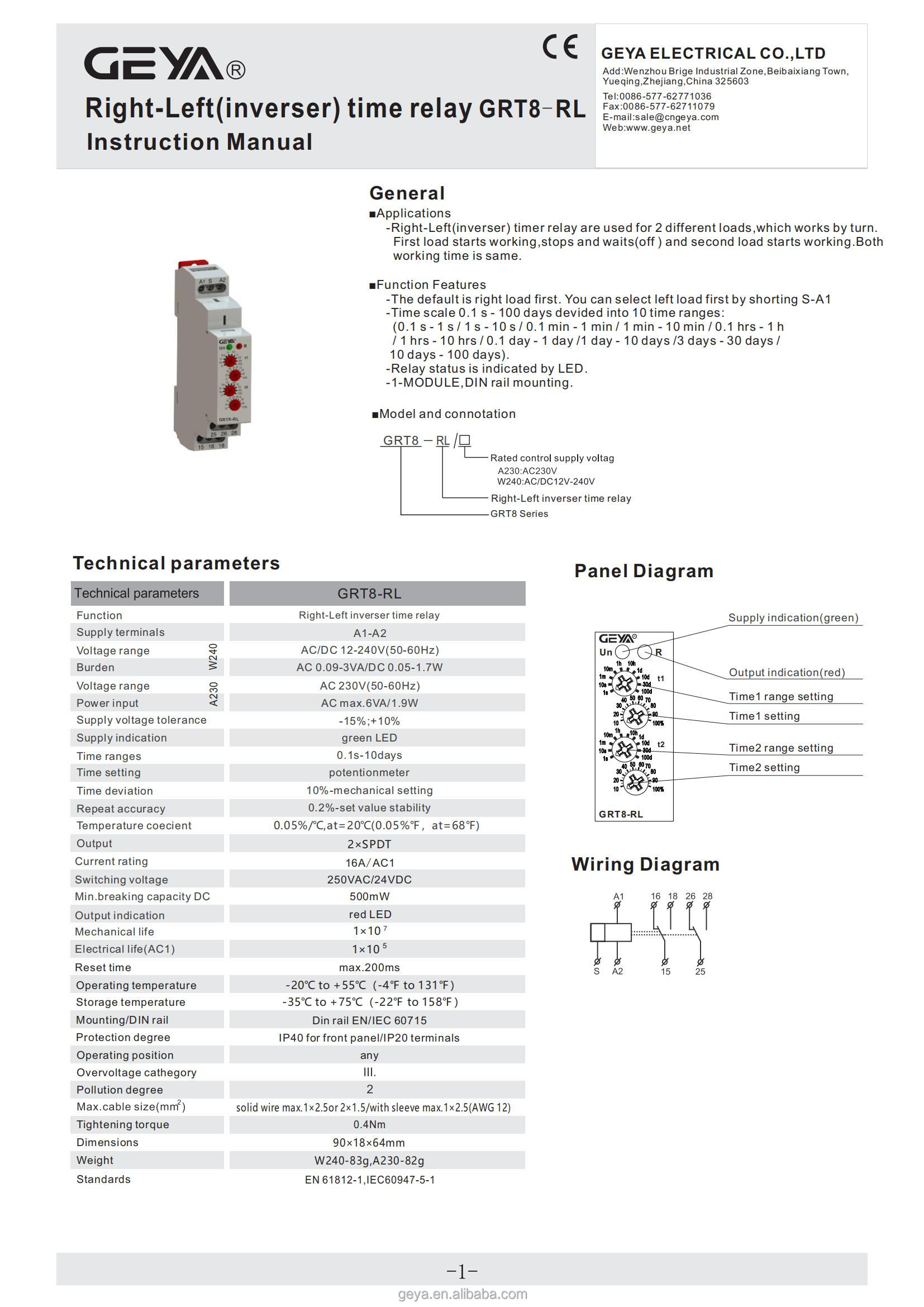

GRT8-RL
Function

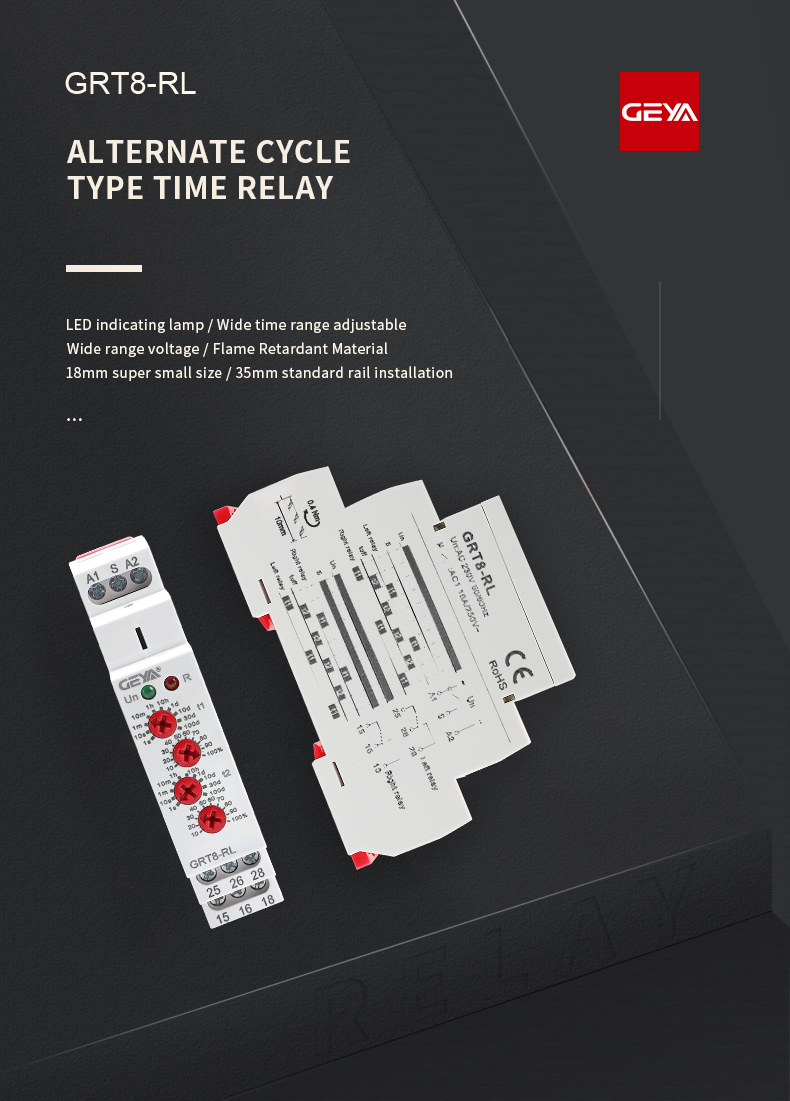

Right-left inverser time relay
Supply terminals
A1-A2
Voltage range（W240）
AC/DC 12-24V(50-60Hz)
Burden（W240）
AC 0.7-3VA/DC 0.5-1.7W
Voltage range（A230）
AC230V(50-60Hz)
Power input（A230）
AC max.6VA/1.3W AC max.6VA/1.9W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time ranges
0.1s-10day
Time setting
potentionmeter
Time deviation
5%-mechanical setting
Repeat accuracy
0.2%-set value stability
Temperature coefficient
0.05%/℃,at=20℃(0.05%°F, at=68°F)
output
2×SPDT
Current rating
16A(AC1)
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mw
Output indication
red LED
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Resettime
max.200ms
perating temperature
-20℃ to+55℃(-4°F to 131°F)
Storage temperature
-35℃to+75℃ (-22°F to 158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
overvoltage cathegory
Ⅲ.
Pollution degree
2
Max.cable size(mm²)
solid wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG12)
Dimensions
90×18×64mm
Weight
W240-82g,A230-82g
Standards
EN61812-1,EN61010-1
