Home > Products > Automation Relay > GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay

GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Grt8-st Spdt Delay On Timer Star Delta Starter Ac/dc 12-240v 16a Miniature Protective Sealed Electric Time Relay - Buy Time Relay time Delay Relay 12 Volt time Delay Relay 12 Volt Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

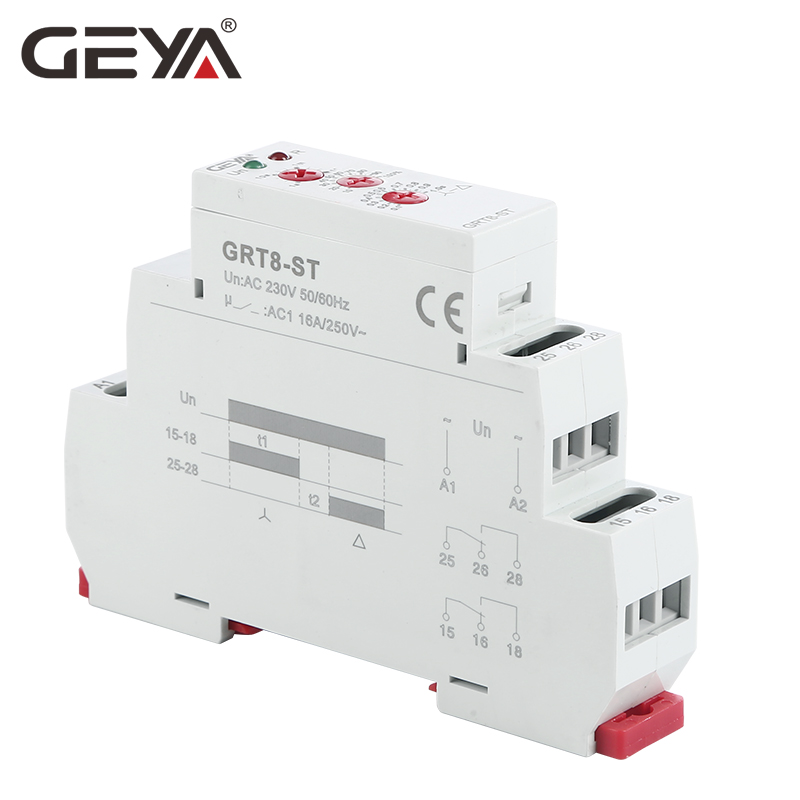

GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
·············This link price is only for GRT8-ST-AC/DC12V~240V············
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay

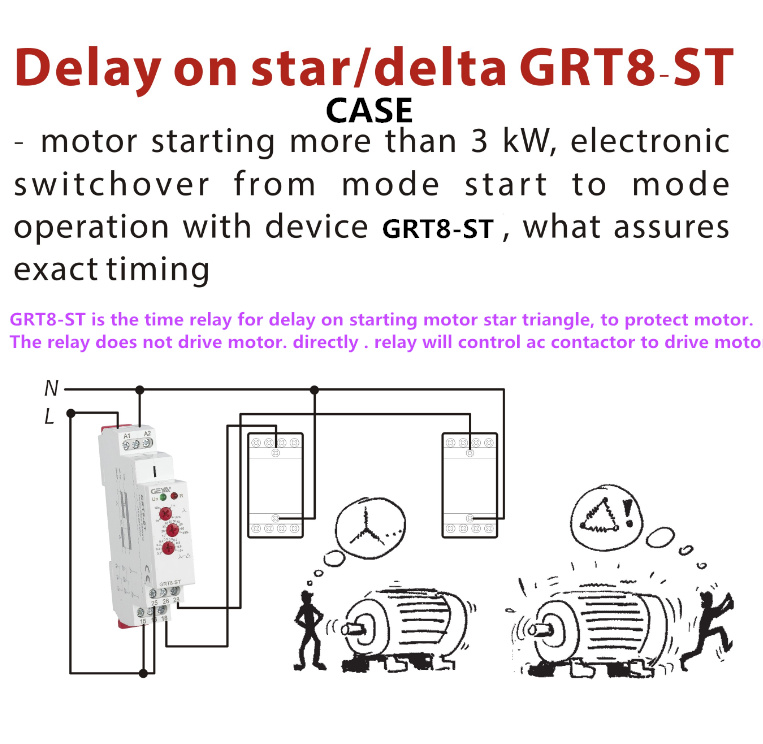

****This is a time relay for delay on starting motor star triangle, to protect motor. It does not drive motor directly. Relay need connect with ac contactor, then ac contactor connect with motor to control.

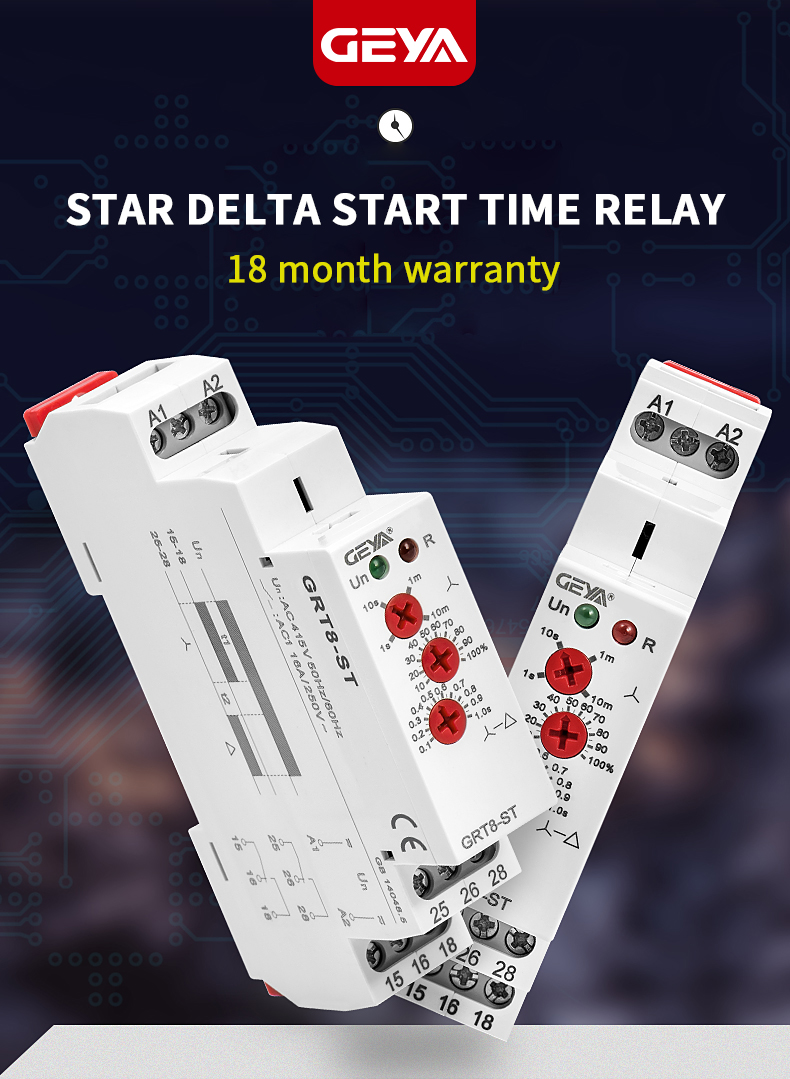

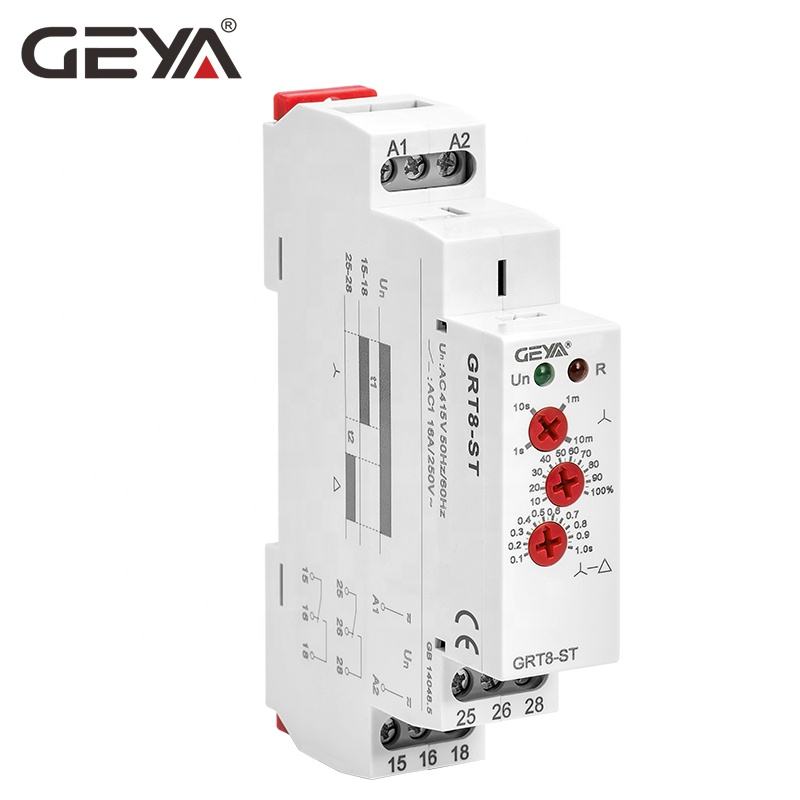

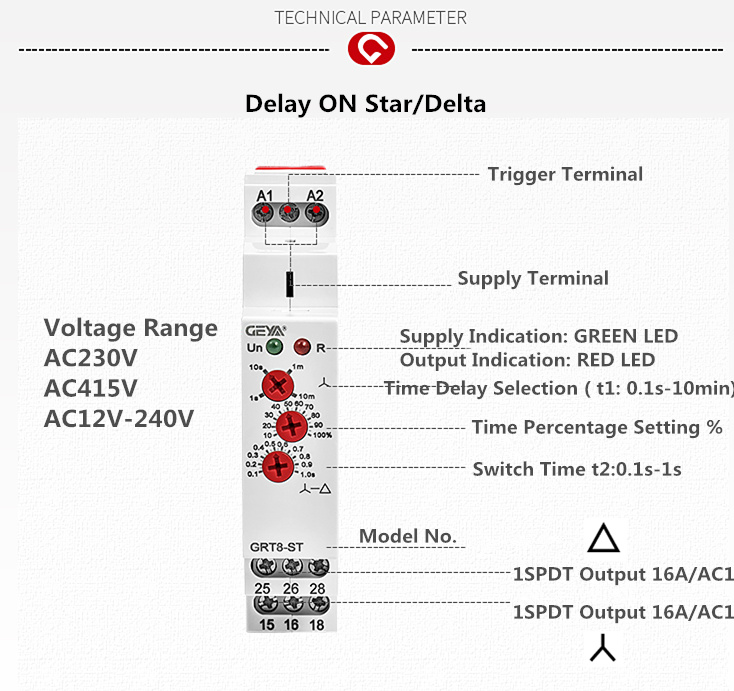

- GRT8-ST- AC/DC12V~240V Star Delta Time Relay

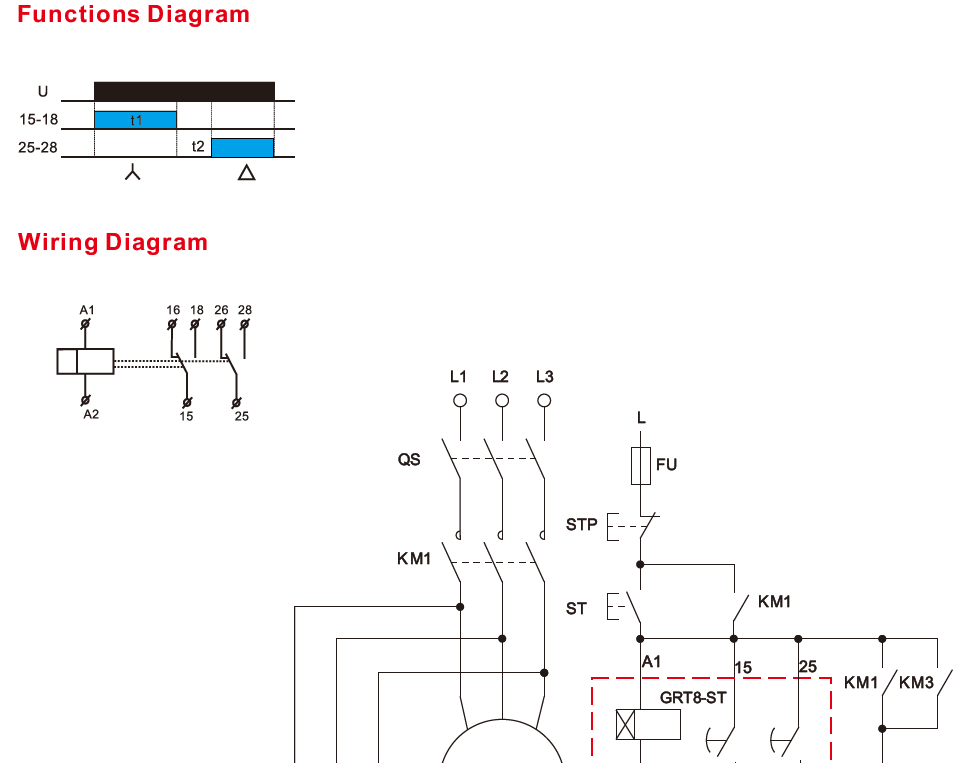

-Designated for delay ON of motors star delta.

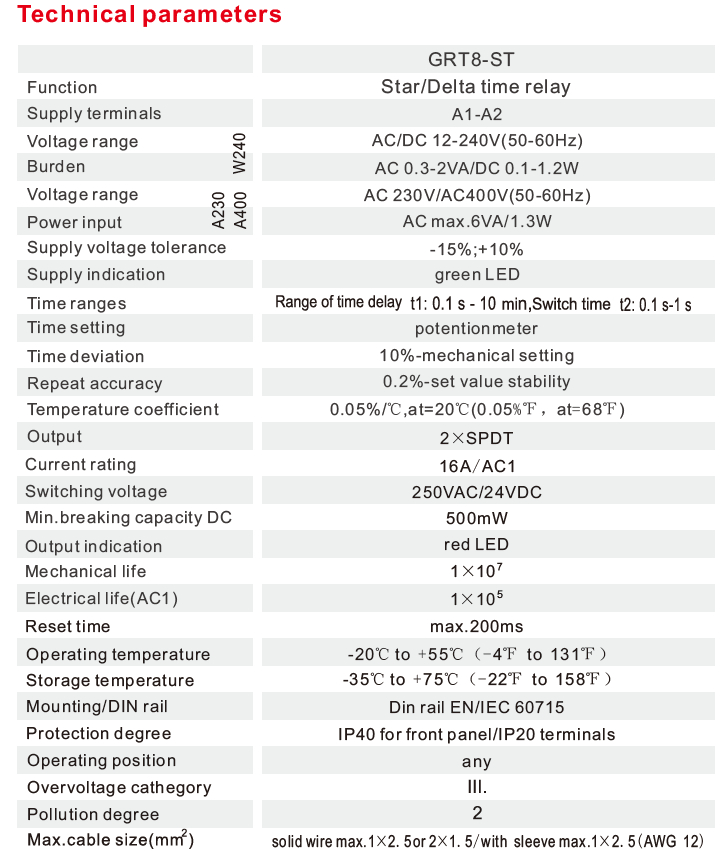

Function Features

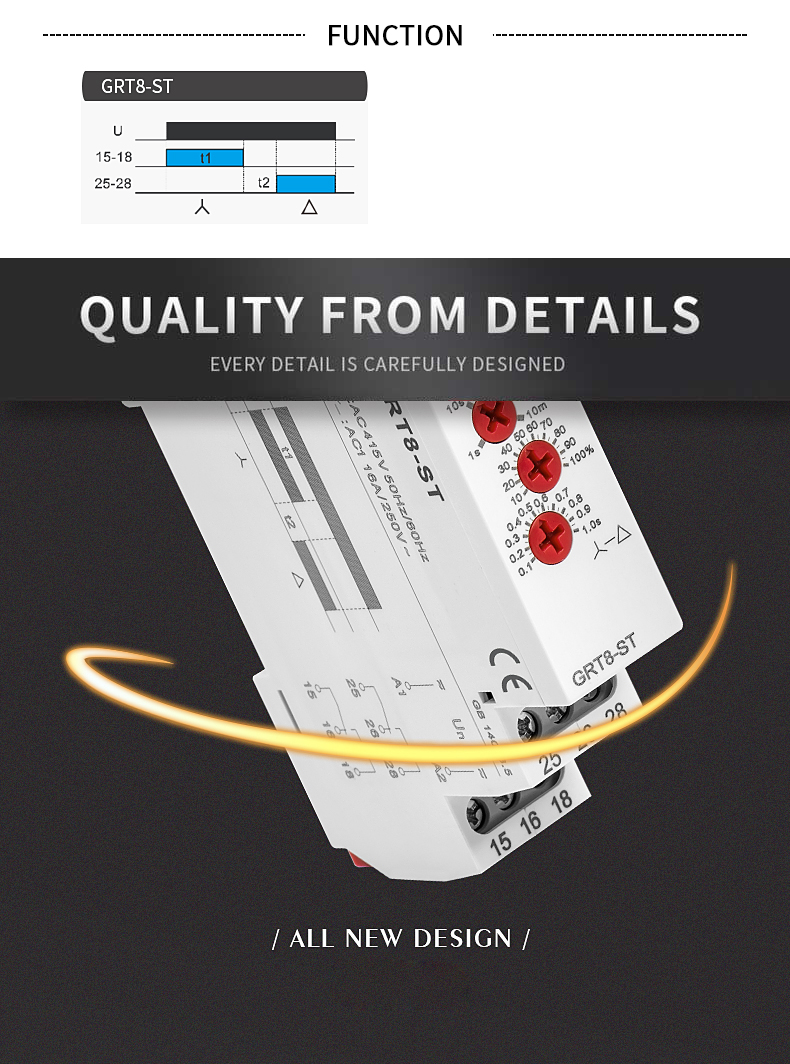

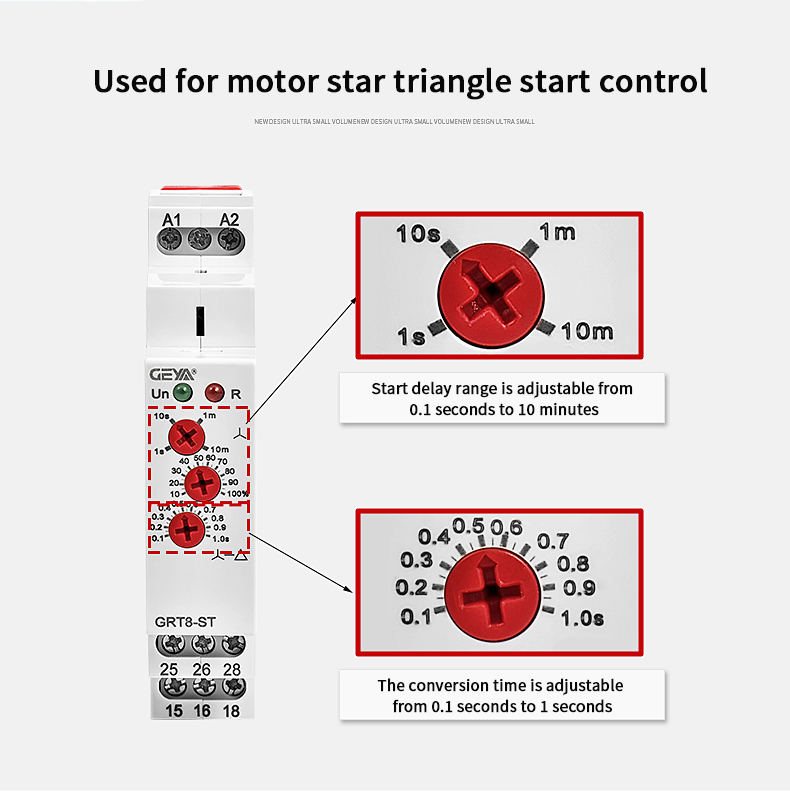

-Time t1 (star) : time scale 0.1 s - 10min devided into 4 time ranges rough time setting by rotary switch.
-Time t2 (delay) : time scale 0.1 s - 1 s
time setting by potentiometer

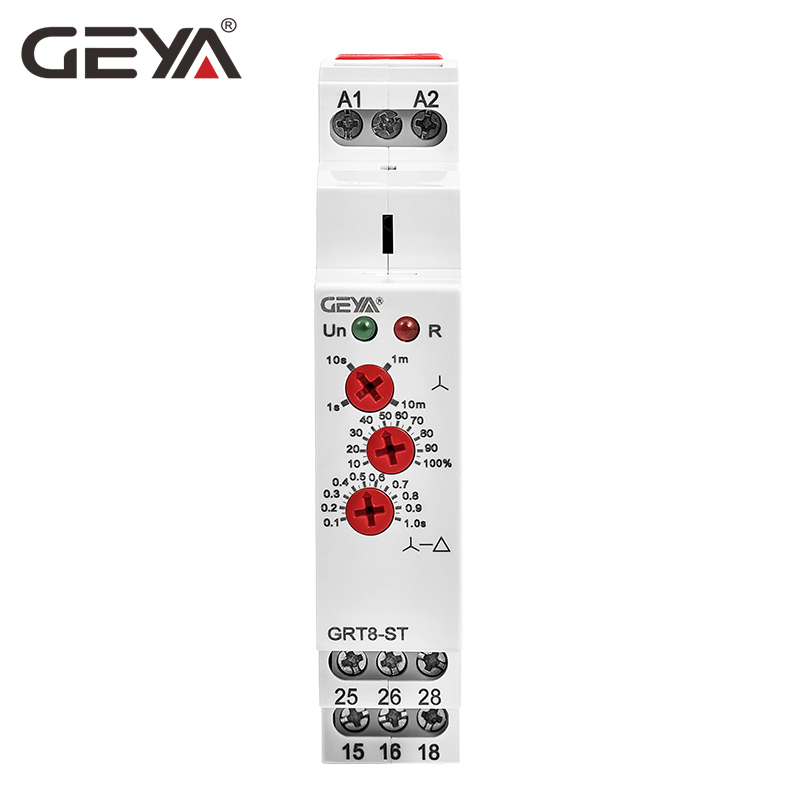

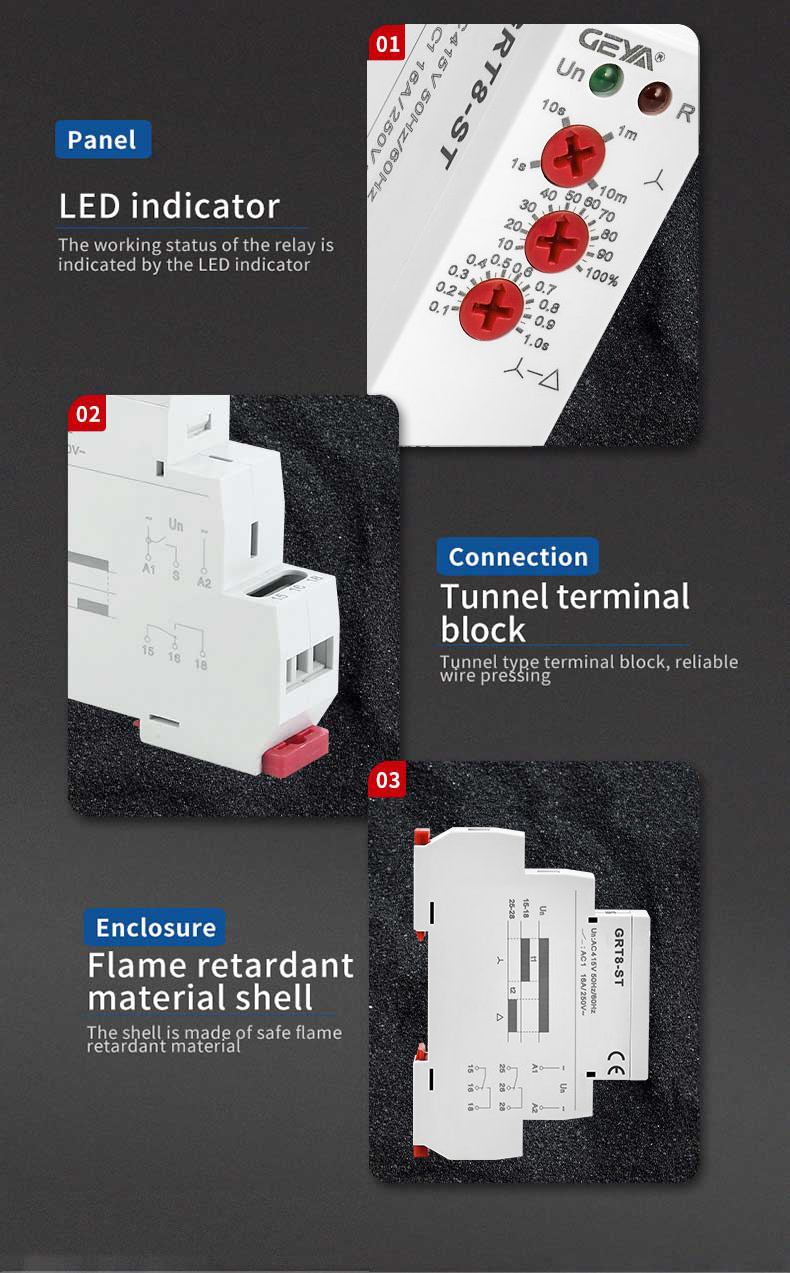

- Relay status is indicated by LED.

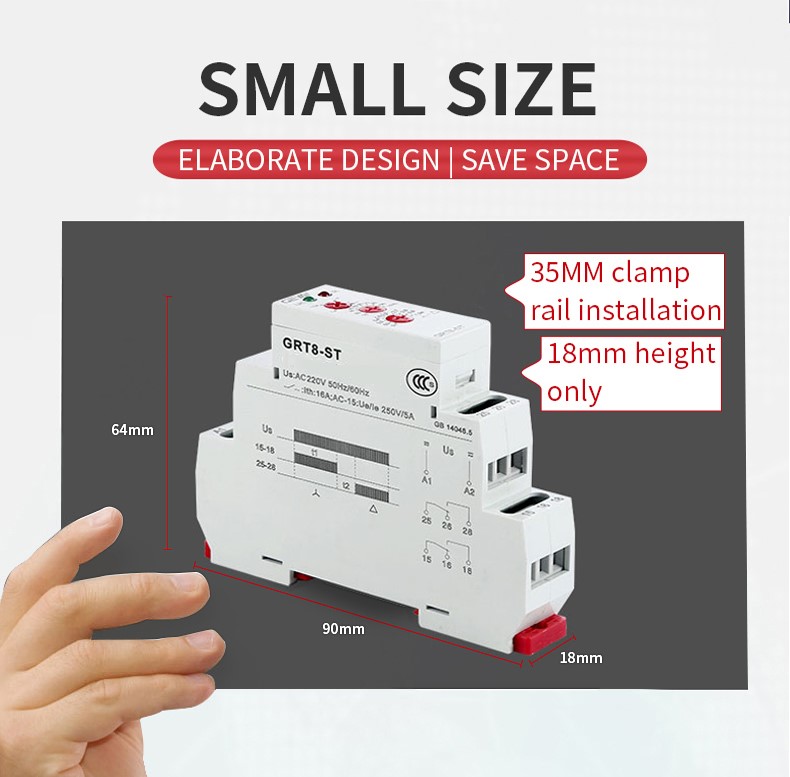

- 1-MODULE,DIN rail mounting.
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GRT8-ST
Star Delta Time Relay Selection
Please leave a message which specification needed?



2SPDT 16A/AC1
GRT8-ST AC230V
GRT8-ST AC380V
GRT8-ST AC415V

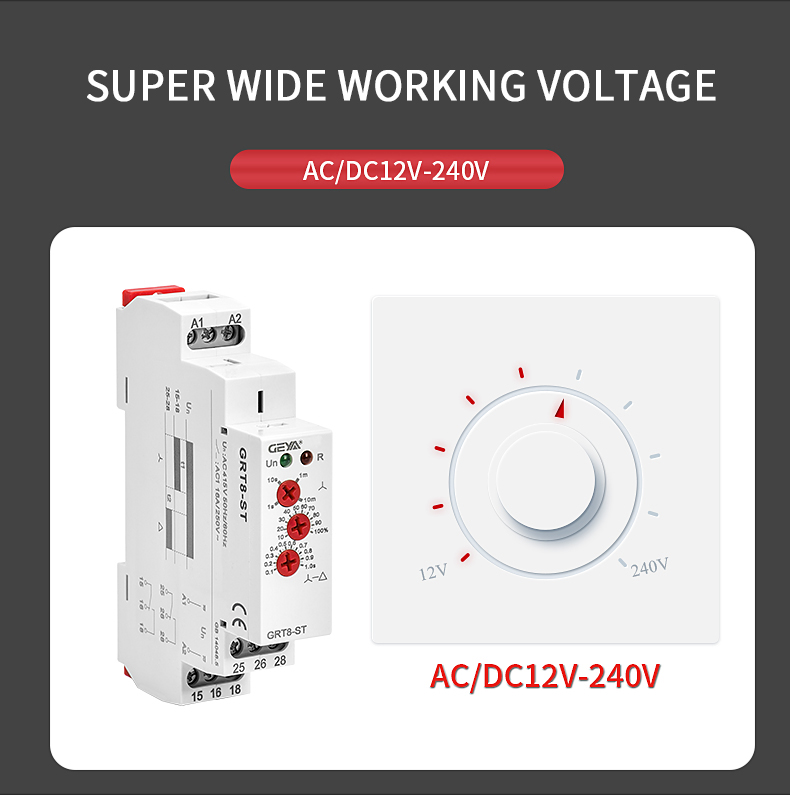

GRT8-ST AC/DC12-240V
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
GEYA GRT8-ST SPDT Delay on Timer Star Delta Starter AC/DC 12-240V 16A Miniature PROTECTIVE Sealed Electric Time Relay
If you want to know more technical information or price, please kindly contact us freely!
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-ST
A230
80.6
93.5
1001
6.36
10.48
20.66
GRT8-ST
AC380V
82.4
95.4
1020
6.47
10.67
21.04
GRT8-ST
AC400V
82.4
95.4
1020
6.47
10.67
21.04
GRT8-ST
,AC415V
82.6
96.2
1028
6.52
10.75
21.20
GRT8-ST
AC/DC12V~240V
82.6
95.2
1018
6.46
10.65
21.00
