GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay

GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Grt8-st Star Delta Relay Delay On Of Motors Star Delta 16a Spdt Relay Ac Dc24-240v Star Delta Timer Relay - Buy Star Delta Relay star Delta Timer Relay star Delta Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
··········This link price is only for GRT8-ST-AC230···········
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay

****This is a time relay for delay on starting motor star triangle, to protect motor. It does not drive motor directly. Relay need connect with ac contactor, then ac contactor connect with motor to control.

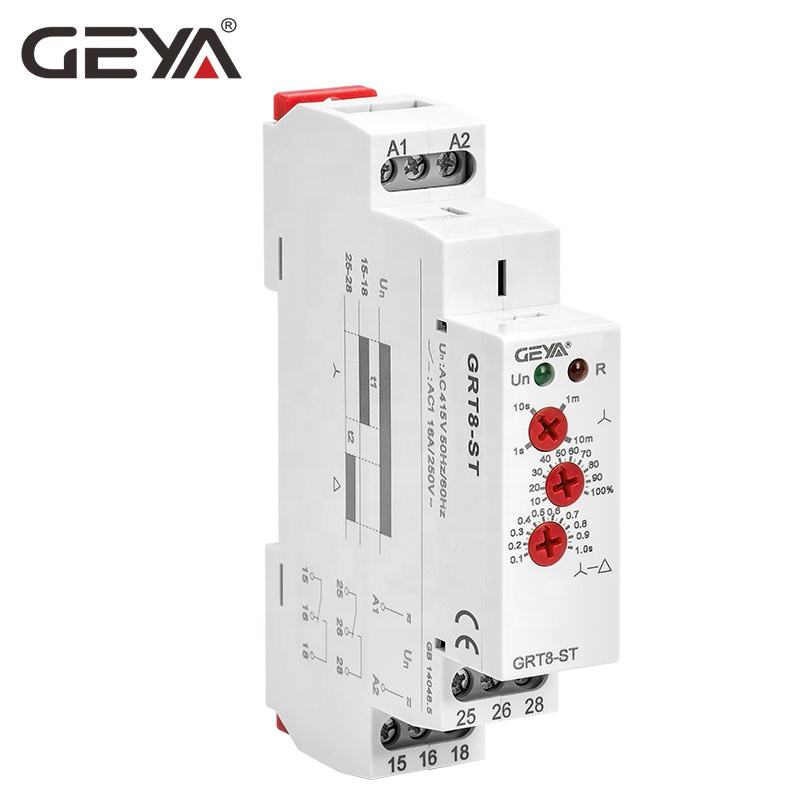

- GRT8-ST- AC230 Star Delta Time Relay
-Designated for delay ON of motors star delta.
Function Features
-Time t1 (star) : time scale 0.1 s - 10min devided into 4 time ranges rough time setting by rotary switch.
-Time t2 (delay) : time scale 0.1 s - 1 s
time setting by potentiometer
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
GRT8-ST
Star Delta Time Relay Selection
Please leave a message which specification needed?



2SPDT 16A/AC1
GRT8-ST AC230V
GRT8-ST AC380V
GRT8-ST AC415V
GRT8-ST AC/DC12-240V
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
GEYA GRT8-ST Star Delta Relay Delay on of Motors Star Delta 16A SPDT Relay AC DC24-240V Star Delta Timer Relay
If you want to know more technical information or price, please kindly contact us freely!
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-ST
A230
80.6
93.5
1001
6.36
10.48
20.66
GRT8-ST
AC380V
82.4
95.4
1020
6.47
10.67
21.04
GRT8-ST
AC400V
82.4
95.4
1020
6.47
10.67
21.04
GRT8-ST
,AC415V
82.6
96.2
1028
6.52
10.75
21.20
GRT8-ST
AC/DC12V~240V
82.6
95.2
1018
6.46
10.65
21.00
