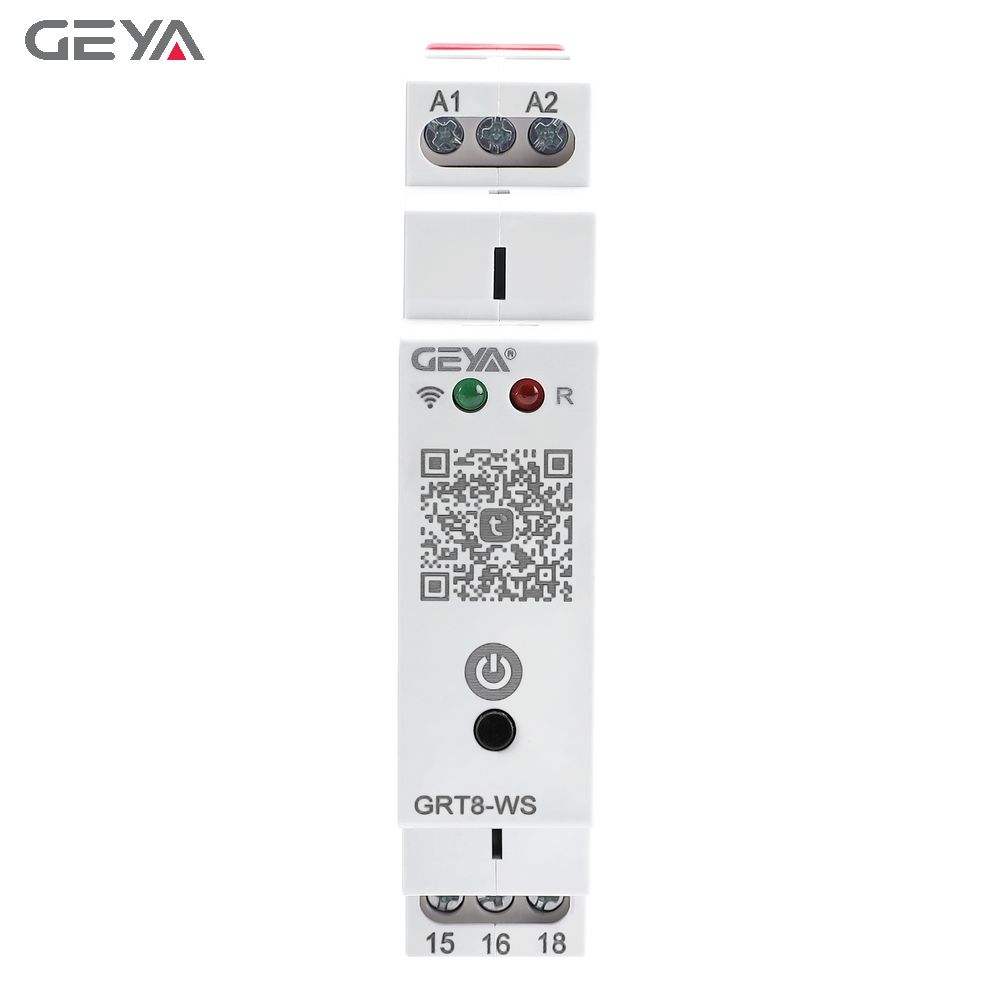

GEYA GRT8-WS WIFl Time-control Relay AC/DC110V-240V Tuya Smart Adjustable Timer Relay

GEYA GRT8-WS WIFl Time-control Relay AC/DC110V-240V Tuya Smart Adjustable Timer Relay

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grt8-ws Wifl Time-control Relay Ac/dc110v-240v Tuya Smart Adjustable Timer Relay - Buy Cycle Timer Relay 120 Volt Timer Relay time Delay Relay 240v timer Relay Price Time Delay Timer Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

········This link price is only for GRT8-WS AC/DC110V-240V ·········
Applications -It turns on and off the load periodically and regularly,and usually controlshousehold equipment such as lights and appliances.
Function Features -Support access to Tuya's App Tuya smart. -The on and off time of the load can be conveniently set through the App. -On and off can be controlled manually. -The cycle on /off can be set during the on time. -DIN rail mounting.
GEYA GRT8-WS WIFl Time-control Relay AC/DC110V-240V Tuya Smart Adjustable Timer Relay
GEYA GRT8-WS WIFl Time-control Relay AC/DC110V-240V Tuya Smart Adjustable Timer Relay
GEYA GRT8-WS WIFl Time-control Relay AC/DC110V-240V Tuya Smart Adjustable Timer Relay
GEYA GRT8-WS WIFl Time-control Relay AC/DC110V-240V Tuya Smart Adjustable Timer Relay
GEYA GRT8-WS WIFl Time-control Relay AC/DC110V-240V Tuya Smart Adjustable Timer Relay
GEYA GRT8-WS WIFl Time-control Relay AC/DC110V-240V Tuya Smart Adjustable Timer Relay
GRT8-WS
Function
WiFi time-control relay
Supply terminals
A1-A2
Voltage range
AC/DC110-240V50Hz
Burden
AC 0.09-3VA/DC 0.05-1.7W
Supply voltage tolerance
-15%;+10%
Supply indication
green LED
Time setting
APP
Time deviation
±30s
WIFI connectivity
802.11 b/g/n 2.4GHz
Output
1×SPDT
16A/AC1
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Operating temperature
-20℃~+55℃
Storage temperature
-35℃~+75℃
Mounting/DIN rail
Din rail EN/IEC60715
Protection degree
IP20
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm²)
1×2.5mm² or 2×1.5mm²0.4N-m

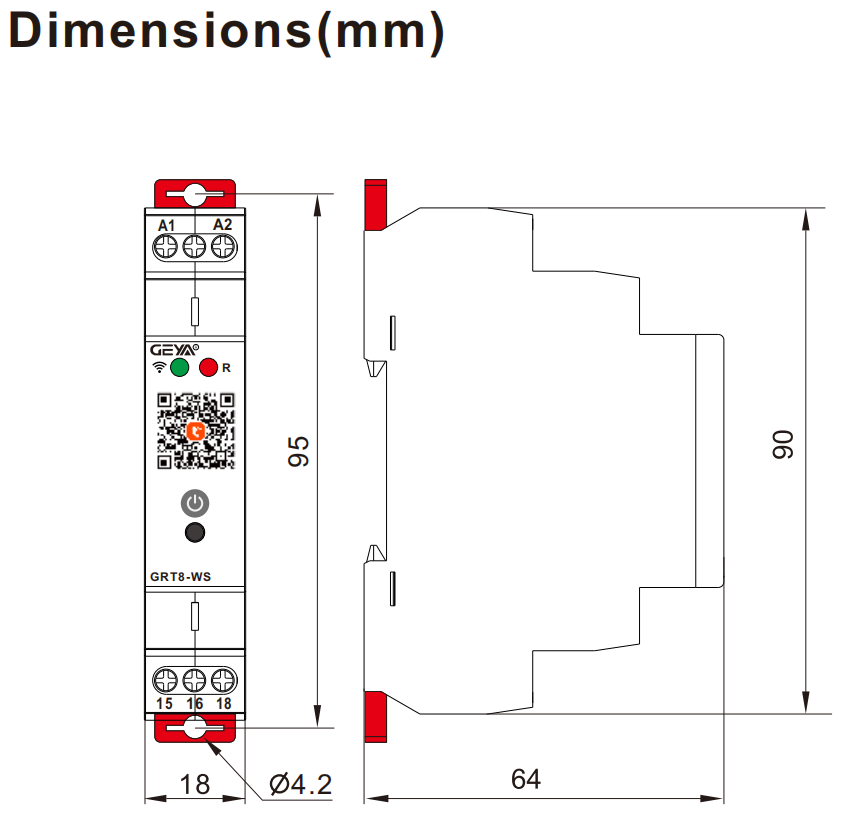

Dimensions
90mm×18mm×64mm
Weight
62g
Standards
GB/T14048.5,IEC60947-5-1,EN61812-1
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-WS
AC/DC110-240V
59.1
71.9
785
5.06
8.32
16.34
