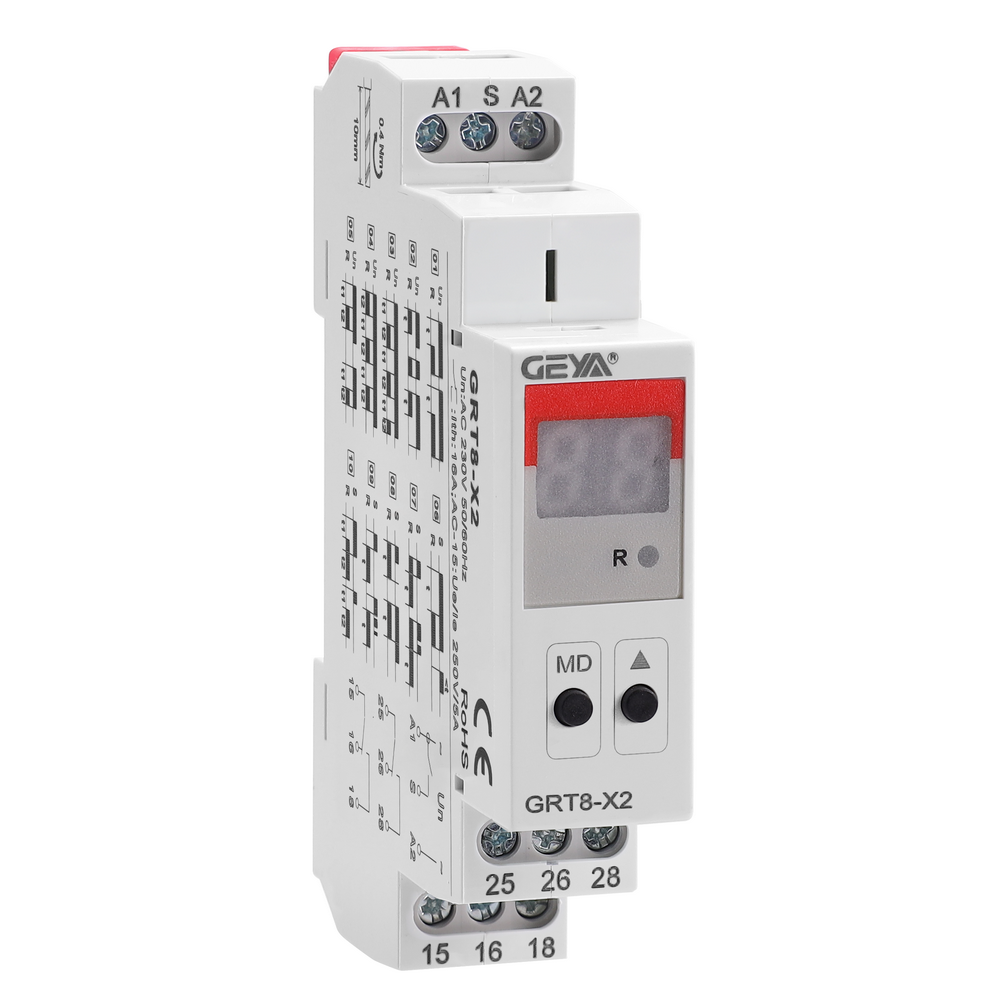

GRT8-X1 | GRT8-X2 | ||
Function | 20 functions | ||
Supply terminals | A1-A2 | ||
Voltage range（W240） | AC/DC 12-24V(50-60Hz) | ||
Burden（W240） | AC 0.09-3VA/DC 0.05-1.7W | ||
Voltage range（A230） | AC230V(50-60Hz) | ||
Power input（A230） | AC max.6VA/1.3W | AC max.6VA/1.9W | |
Supply voltage tolerance | -15%;+10% | ||
Supply indication | green LED | ||
Time ranges | 0.1s-99day,ON,OFF | ||
Time setting | Key setting | ||
Time deviation | ≤1% | ||
Repeat accuracy | 0.2%-set value stability | ||
Temperature coefficient | 0.05%/℃,at=20℃(0.05%°F, at=68°F) | ||
output | 1×SPDT | 2×SPDT | |
Current rating | 16A(AC1) | 2x16A(AC1) | |
Switching voltage | 250VAC/24VDC | ||
Min.breaking capacity DC | 500mw | ||
Output indication | red LED | ||
Mechanical life | 1×10^7 | ||
Electrical life(AC1) | 1×10^5 | ||
Resettime | max.200ms | ||
perating temperature | -20℃ to+55℃(-4°F to 131°F) | ||
Storage temperature | -35℃to+75℃ (-22°F to 158°F) | ||
Mounting/DIN rail | Din rail EN/IEC 60715 | ||
Protection degree | IP40 for front panel/IP20 terminals | ||
Operating position | any | ||
overvoltage cathegory | Ⅲ. | ||
Pollution degree | 2 | ||
Max.cable size(mm²) | solid wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG12) | ||
Dimensions | 90×18×64mm | ||
Weight | 1xSPDT:W240-62g,A230-60g | ||
2xSPDT:W240-82g,A230-81g | |||
Standards | EN61812-1,IEC60947-5-1 | ||
Item | Specification | N.W. of product (g) | G.W. of product (g) | Medium box weight (g) | G.W. of 60pcs/CTN (kg) | G.W. of 100pcs/CTN(kg)±50g | G.W. of 200pcs/CTN(kg) |
GRT8-X1 | A230 | 58.7 | 71.7 | 783 | 5.05 | 8.30 | 16.30 |
GRT8-X1 | AC/DC12V~240V | 63.8 | 76.8 | 834 | 5.35 | 8.81 | 17.32 |
GRT8-X2 | A230 | 81.3 | 94.3 | 1009 | 6.40 | 10.56 | 20.82 |
GRT8-X2 | AC/DC12V~240V | 82.7 | 96.0 | 1026 | 6.51 | 10.73 | 21.16 |
