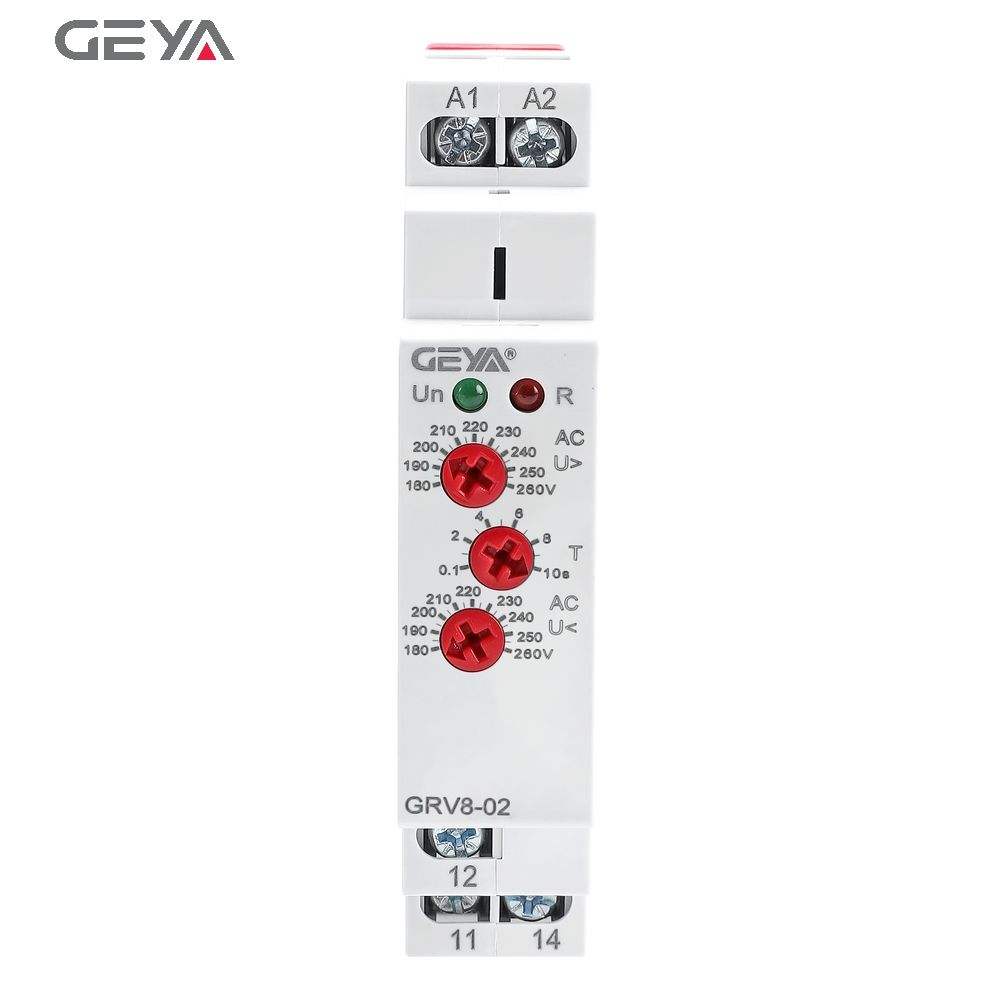

GEYA GRV8-02 A220 Single Phase Overvoltage and Undervoltage Monitoring Relay

GEYA GRV8-02 A220 Single Phase Overvoltage and Undervoltage Monitoring Relay

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grv8-02 A220 Single Phase Overvoltage And Undervoltage Monitoring Relay - Buy Voltage Relay Overcurrent Adjustable Relay voltage Monitor Digital Timer Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

·············This link price is only for GRV8-02- A220············
GEYA GRV8-02 A220 Single Phase Overvoltage and Undervoltage Monitoring Relay
GEYA GRV8-02 A220 Single Phase Overvoltage and Undervoltage Monitoring Relay
GEYA GRV8-02 A220 Single Phase Overvoltage and Undervoltage Monitoring Relay
GEYA GRV8-02 A220 Single Phase Overvoltage and Undervoltage Monitoring Relay
GEYA GRV8-02 A220 Single Phase Overvoltage and Undervoltage Monitoring Relay
GRV8-01
GRV8-02
Function
Monitoring voltage
Supply terminals
A1-A2
Rated supply voltage
DC12V,AC/DC24V-48V,AC/DC110V-240V,AC220V
Rated supply frequency
45Hz-65Hz,0
Hysteresis
3%fixed
5%-20%
Supply indication
green LED
Time delay
Adjustable 0.1s-10s,10%
Measurement error
≤1%
Run up delay at power up
0.5s time delay
Konb setting accuracy
10% of scale value
Reset time
1000ms
Temperature coefficient
0.05%/℃,at=20C(0.05%°F,at=68°F)
Output
1XSPDT
Current rating
10A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
red LED
Mechanical life
1×10^7
Electrical life(AC1)
1×10^5
Operating temperature
-20℃ to+55℃(-4°F to 131°F)
Storage temperature
-35℃ to+75℃(-22°F to158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm^2)
solid wire max.1×2.5or 2X1.5/with sleeve max.1×2.5(AWG 12)
Dimensions
90×18×64mm
Weight
59g
Standards
EN 60255-1,IEC60947-5-1
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRV8-01
A220
60
73.0
796
5.13
8.43
16.56
GRV8-01
D12
54.1
67.4
740
4.79
7.87
15.44
GRV8-01
AD48
57
70.0
766
4.95
8.13
15.96
GRV8-01
AD240
57.4
70.0
766
4.95
8.13
15.96
GRV8-02
A220
59.5
72.3
789
5.08
8.36
16.42
GRV8-02
D12
54.5
67.7
743
4.81
7.90
15.50
GRV8-02
AD48
56.7
70.0
766
4.95
8.13
15.96
GRV8-02
AD240
57.5
70.0
766
4.95
8.13
15.96
GRV8-03
M265
61.9
74.7
813
5.23
8.60
16.90
GRV8-04
62.7
76.2
828
5.32
8.75
17.20
GRV8-05
63.7
76.8
834
5.35
8.81
17.32
GRV8-06
63.7
76.8
834
5.35
8.81
17.32
GRV8-07&08
61.6
75.2
818
5.26
8.65
17.00
GRV8-03
M460
62.7
75.4
820
5.27
8.67
17.04
GRV8-04
66.6
79.4
860
5.51
9.07
17.84
GRV8-05
66.6
79.4
860
5.51
9.07
17.84
GRV8-06
66.7
79.4
860
5.51
9.07
17.84
GRV8-07&08
63.5
76.9
835
5.36
8.82
17.34
